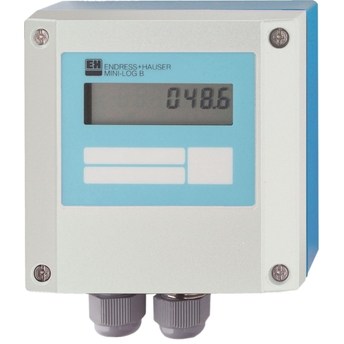

Minilog B, RDL10
Data Logger

Minilog B, RDL10
Data Logger ©Endress+Hauser

Data logger for display and storing measured values from an analog and digital input

Data logger for stand-alone applications. The Minilog B is used to display and record measured data from an analog and digital input signal. It can be applied where a compact data logger is needed. In addition to data storage the data logger also monitors two set points. Violation of these set values are indicated in the display. Additionally it is possible to transmit a message to a computer or mobile phone using the telephone network or wireless modem (Tele-alarm option).

  • Fordeler

    • Sensor connections using 0/4 to 20 mA, 0 to 1 V or Pt100, as well as potential free contact for event or count impulses

    • Instantaneous value or min-, max-, average value recording

    • Storage of up to 64,000 measured values include date and time

    • Presettable...

  • Bruksområde

    • Data storage for temperature, humidity, pressure, flow, level and analysis values

    • Temperature monitoring: Store temperatures and transport temperature measurement

    • Operation time recording

    • Access monitoring

    • Piece part and quantity recording

    • Quantity...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Datalogger

  • Functions

    Signal analysis

    interface / modem

    ReadWin 2000

  • Maximal input

    1 analog (U, I, Pt100)

    1 digital (message-, counting input)

  • Interface

    RS 232

  • Storage/Recording

    Internal memory

  • Display

    Alphanumeric LC-Display

  • Housing

    field Housing

  • Power supply

    external supply unit 7...30 V DC

    battery

  • Software package

    Tele-Alarm

  • Measuring principle

    Data logger

  • Measuring principle

    Data logger

  • Function

    Stand-alone data logger with 2 input channels for storing an analog and digital value. In addition two set points can be monitored.

  • Input

    1 analog (max) (U, I, Pt100)

    1 digital (max) (message-, counting input)

  • Interface

    RS232

  • Storage/Recording

    internal memory

  • Display

    Alphanumeric LC-Display

  • Housing

    field Housing

  • Power supply

    external power supply 7...30 V DC battery

  • Software package

    Tele-alarm
