Cost-effective pressure switch with oil-free ceramic sensor for measurement in gases or liquids

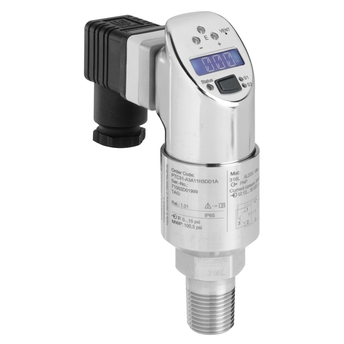

The Ceraphant PTC31 is a price-attractive pressure switch with ceramic, vacuum tight measuring cell for safe measurement and monitoring of absolute and gauge pressure.
Integrated switching electronics for decentral and economic process monitoring and control
Function check and information on site thanks to LEDs and digital display
Dry capacitance ceramic sensor (Ceraphire)
Overload-resistant high purity ceramic sensor (99.9% Al2O3)
Best fit for vacuum applications and applications with abrasive media
Pressure switch with ceramic sensor diaphragm for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.
Process connections: Threads
Process temperature: -40 to +100°C (-40 to +212°F)
Pressure: -1/0 up to +40bar (-15/0 up to +600psi)
Funksjoner og spesifikasjoner
Forgjenger / Erstatter
Etterfølger: Ceraphant PTC31B
