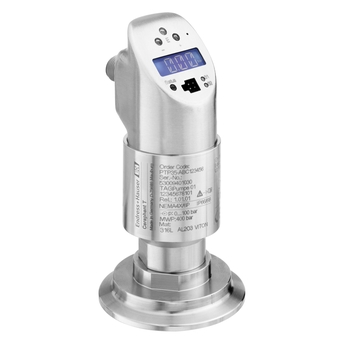

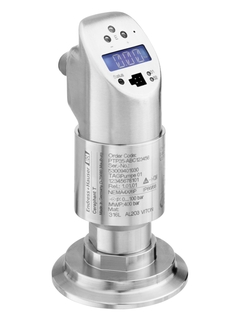

Ceraphant T PTP35

Dette produktet er ikke tilgjengelig lenger.

Se den nye generasjonen i området forgjenger/etterfølger, eller kontakt den lokale Endress+Hauser-representanten.

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Pressure switch

  • Characteristic

    Intelligent pressure switch with metal diaphragm, for hygienic applications, longterm stable, FDA concurring

  • Supply voltage

    12...30VDC

  • Reference Accuracy

    0,5%

  • Long term stability

    0,15% of URL/year

  • Process temperature

    -40°C...100°C
    (-40°F...212°F)
    135°C for 1h
    (275°F for 1h)

  • Ambient temperature

    -40°C...85°C
    (-40°F...185°F)

  • Measuring cell

    1bar...40bar
    (15psi...600psi)

  • Max. overpressure limit

    160bar (2320psi)

  • Process connection

    Hygienic connections
    Threads

  • Communication

    1x PNP switch
    2x PNP switch
    1x PNP switch + 4...20mA analogue

  • Design approvals

    EN10204-3.1

  • Hygienic approvals

    3A

  • Specialities

    Digital display
    Robust SS-housing with Ra < 0,8 micron

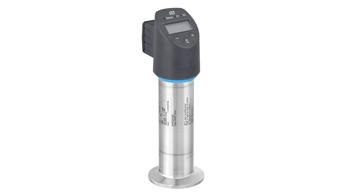

  • Successor

    PTP33B

Dokumenter / håndbøker / programvare

Tilbehør / reservedeler

Nr
Order code
Specification
    • Order code 52024267

      EPDM O-rings process adapter M24

      5x O-ring 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTC31, PTP31/PTP33B/PTP35. process adapter M24.

    • Order code

      Unit is not repairable.

  • Forgjenger

  • Erstatter
