Radar measurement

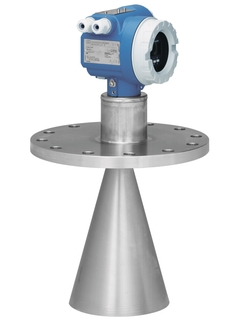

Micropilot FMR530

Micropilot FMR530 ©Endress+Hauser

Time-of-Flight measuring principle

  • Micropilot FMR530

For custody transfer and inventory control applications with NMi- and PTB-approvals

The Micropilot FMR530 is used for highly accurate non-contact level measurement in storage tanks and can be applied in custody transfer applications. It meets the relevant requirements according to OIML R85 and API 3.1B. The FMR530 free space radar offers cost-effective and simple installation via 4-wire cable with HART and
24 V DC intrinsically safe power supply.

Hurtigvalg

Velg ett av våre foreslåtte alternative
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FMR530
Vis detaljer Skjul detaljer
Vis detaljer
Tilbake til Hurtigvalg
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Valgfritt tilbehør
Bruk det individuelle konfigurasjonsverktøyet for å fortsette.
eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer

  • Fordeler

    • 0.5mm accuracy (2σ value)

    • National approvals (NMi, PTB) for custody transfer

    • Applicable as stand-alone system or integrated tank gauging systems via the Tank Side Monitor NRF590

    • Easy on-site operation via menu-driven alphanumeric display

    • Easy commissioning...

  • Bruksområde

    With horn antenna suitable for free space applications (up to 25m) that disallow the use of a parabolic antenna due to tank/nozzle geometry.

    • Process connection: Flange

    • Temperature: -40 to +200°C (-40 to +392°F)

    • Pressure: -1 to +64bar (-14.5 to +928psi)

    • ...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Level radar

  • Supply / Communication

    4-wire (HART)

  • Frequency

    C-band (~6 GHz)

  • Accuracy

    +/- 1 mm

  • Ambient temperature

    Standard:
    -40 °C ... 80 °C
    (-40 °F ... 176 °F)
    For calibration to regulatory standards:
    -25 °C ... 60 °C
    (-13 °F ... 131 °F)

  • Process temperature

    -40 °C ... 200 °C
    (-40 °F ... 392 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 64 bar
    (Vacuum ... 580 psi)

  • Main wetted parts

    316Ti

  • Process connection

    DN150 ... DN250 /3" ... 10"

  • Application

  • Max. measurement distance

  • Radar_Mediengruppe_en.jpg
  • Communication

    4 ... 20 mA HART

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, NEPSI

  • Safety approvals

    Overfill prevention WHG

  • Marine approval

    GL/ ABS

  • Application limits

Dokumenter / håndbøker / programvare

  • Tankvision NXA820, NXA821, NXA822

    Inventory Management System with completely integrated software for
    operation via standard web browser

    Technical Information (TI)
  • Micropilot S FMR530 Technical Information

    Level-Radar

    Continuous level transmitter for continuous and non-contact precision
    level measurement. For custody transfer andinventory control
    applications with NMi- and PTB-approvals.

    Technical Information (TI)
  • Micropilot S FMR530, FMR531, FMR532, FMR533 HART Description of Instrument Functions

    Smart Transmitter for continuous and non-contact precision level
    measurement
    For custody transfer and inventory control
    applications with NMi- and PTB-approvals

    Operating Instruction (BA)
  • Micropilot S FMR530 HART Operating Instructions

    Level-Radar

    Continuous level transmitter for continuous and non-contact precision
    level measurement. For custody transfer andinventory control
    applications with NMi- and PTB-approvals.

    Operating Instruction (BA)
  • Bedienungsanleitung/ Operating Instuction Micropilot S Kurzanleitung.

    Bedienungsanleitung/ Operating Instuction Micropilot S Kurzanleitung.

    Short Instruction (KA)
    12/00
    Tysk , Engelsk
  • Weather protection cover Mounting Instruction

    Weather protection cover for devices with F12/T12/F23 housing.

    Short Instruction (KA)
    06/07
    Tysk , Engelsk , Spansk , fr , Italiensk , Nederlandsk
  • Installation instruction - electronics, terminal module

    Mircropilot S

    Short Instruction (KA)
    05/15
    Tysk , Engelsk
  • Exchange of horn antenna on Micropilot S FMR530

    Exchange of horn antenna on Micropilot S FMR530

    Short Instruction (KA)
    04/12
    Tysk , Engelsk
  • Micropilot S FMR530 HART Brief Operating Instructions

    Level-Radar

    Continuous level transmitter for continuous and non-contact precision
    level measurement. For custody transfer andinventory control
    applications with NMi- and PTB-approvals.

    Short Instruction (KA)
    02/14
    Engelsk
  • Display VU331

    Micropilot M, Levelflex M, Prosonic M, Micropilot S

    Short Instruction (KA)
    01/16
    Tysk , Engelsk
  • Cable separate version Installation Instructions

    Cerabar M, Cerabar S, Deltabar S, Deltapilot M, Deltapilot S

    Installation Instructions (EA)
  • Micropilot S FMR530, FMR531, FMR532, FMR533

    HART

    FM

    Drawing No.: 960397-1045 F

    Drawing Type: Control drawing

    Ex Safety Instructions (XA)
  • Micropilot S FMR530/531/532/533

    CSA

    Control drawing

    960397-2045 C

    Ex Safety Instructions (XA)
  • Safety Instructions Micropilot S FMR530, FMR532, FMR533, FMR540

    II 3 G Ex nA IIC T6 Gc
    EG 01 026

    Ex Safety Instructions (XA)
  • Safety Instructions Micropilot S FMR530, FMR532, FMR533

    ATEX: II 1/2 G Ex ia IIC T6...T1 Ga/Gb
    II 2 G Ex ia IIC T6...T1 Gb
    IECEx: Ex ia IIC T6...T1 Ga/Gb
    PTB 00 ATEX 2067 X; IECEx PTB 15.0034 X

    Ex Safety Instructions (XA)
  • Safety Instructions Micropilot S FMR530, FMR532, FMR533, FMR540

    4-20 mA HART
    Ex ia IIC T6...T1 Ga/Gb
    GYJ16.1021X (NEPSI)

    Ex Safety Instructions (XA)
  • Micropilot S FMR530, FMR531, FMR532, FMR533

    NMi CVN/10124773/01

    Certificate (ZE)
  • Micropilot S FMR530, FMR531, FMR532, FMR533

    NMi Type approval certificate
    T7480 Revision 4

    Certificate (ZE)
  • Micropilot S FMR530/531/532/533/540

    Allgemeine bauaufsichtliche Zulassung Z-65.16-300 (DIBt)

    Certificate (ZE)
  • Micropilot S FMR530, FMR531, FMR532, FMR533

    4.413 01.06

    Certificate (ZE)
  • Micropilot S FMR530/531/532/533

    CSA

    960397-2045 A

    Control drawing

    HART

    Certificate FM/CSA (ZD)
  • Micropilot S FMR530, FMR531, FMR532, FMR533

    HART

    FM

    Drawing No.: 960397-1045 E
    Drawing Type: Control drawing

    Certificate FM/CSA (ZD)
  • Micropilot S FMR530L

    TIIS

    Drawing No.: 960397/Ex428-517B

    Drawing Type: System structure

    Certificate FM/CSA (ZD)
  • Micropilot S FMR530K

    TIIS

    Drawing No.: 960397/Ex428-517A

    Drawing Type: System structure

    Certificate FM/CSA (ZD)
  • Micropilot S FMR530, FMR531, FMR532, FMR533

    HART

    FM

    Drawing No.: 960397-1045 D Drawing Type: Wiring diagram

    Certificate FM/CSA (ZD)
  • Micropilot S FMR53x, FMR540

    Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit

    Special Documentation (SD)
  • Micropilot M FMR230, FMR231, FMR240, FMR244, FMR245, FMR250 Micropilot S FMR530, FMR532, FMR533, FMR540 Hinweis zur Montage

    Füllstand-Radar für Flüssigkeiten und Schüttgüter

    Special Documentation (SD)
  • Micropilot S FMR530/532/533, FMR540 Functional Safety Manual

    Level-Radar with 4 to 20 mA Output Signal

    Special Documentation (SD)
  • Tank Side Monitor NRF590 Micropilot S FMR53x, FMR540

    Sealing of the Tank Side Monitor NRF590 and the Micropilot S
    FMR53x/FMR540

    Special Documentation (SD)
  • Alignment of the housing

    Alignment of the housing

    Special Documentation (SD)
  • Micropilot S FMR53x Manufacturer Information for users regarding software updates (NE53)

    Software version V01.03.00

    Manufacturer Information (MI)
  • Wykaz wyrobów akcyzowych

    Sk&
    322;ady podatkowe i terminale paliwowe

    Publications (PU)
    10/09
    Polsk
  • Rozporz& 261;dzenie w sprawie wymaga& 324; dla zbiorników pomiarowych

    Sk&
    322;ady podatkowe i terminale paliwowe

    Publications (PU)
    10/09
    Polsk
  • Brewery application: Brewhouse, Application 17

    Meas. Point 15: level measurement in the adjunct silo
    Application 1
    microwave

    Industry Solutions (SO)
    Engelsk
  • Juice application: Concentrate storage, Application 6

    Meas. point 3: level measurement concentrate tank
    Application 3
    microwave

    Industry Solutions (SO)
    Engelsk
  • Brewery application: Bright beer buffer tanks, Application 5

    Meas. point 3: level measurement at the bright beer tanks
    Application 3
    Microwave

    Industry Solutions (SO)
    Engelsk
  • Mesure de niveau

    Aperçu des produits pour des applications dans des liquides et des
    solides en vrac

    Fields of Activities (FA)
    03/19
    fr
  • Level measurement

    Product overview for applications in liquids and bulk solids

    Fields of Activities (FA)
    03/17
    Engelsk
  • Level measurement

    Product overview for applications in liquids and bulk solids

    Fields of Activities (FA)
    03/17
    Engelsk
  • Catálogo Medición y Detección de nivel

    Gama de productos para aplicaciones con líquidos y sólidos

    Fields of Activities (FA)
    03/17
    Spansk
  • Füllstandmesstechnik

    Produktübersicht für Anwendungen in Flüssigkeiten und Schüttgütern

    Fields of Activities (FA)
    03/17
    Tysk
  • Selection criteria for level radar in the chemical industrie

    During the past three years the performance but also the variety of level radar devices has been increased significantly. For the
    use of radar systems the application has to be analysed according to the process and the tank specific requirements. Only then a
    cost effective solution can be defined. This article describes crite-ria for the proper selection of radar devices. Especially the
    choice of the frequency (e.g. 6 GHz or 26 GHz) and the antenna types are discussed.
    (only german version)

    Special Promotion (SP)
    Engelsk
  • Pulse radar for mm-precision in tank

    The requirements of mm-precision in tank gauging under reference and application conditions are
    discussed. Decisive parameters of
    an overall concept (puls radar, carrier frequency 5,8GHz, phase
    evaluation, 2-wire systems, antenna choice) are explained and
    their advantages are illustrated.

    Special Promotion (SP)
    Engelsk
  • Puls-Radar zur mm-genauen Füllstandmessung

    Die Anforderungen der mm-genauen Füllstandmessung werden unter Referenz- und Anwendungsbedingungen diskutiert. Entscheidende Größen
    eines durchgängigen Gesamtkonzepts (Pulsverfahren, Trägerfrequenz 5,8GHz,
    Phasenauswertung, 2-Draht System, Antennenwahl) werden
    erläutert und ihre Vorteile dargestellt.

    Special Promotion (SP)
    Tysk
  • DTM Single, MicropilotS_FMR53x_V2_00, 10.07.2019 (Level, Micropilot S, 0x0010)

    HART,

    DeviceCare Version: 1.06.00

    Field Xpert - SMT70 Version: 1.03.00

    FieldCare Version: 2.13.00

    Device Type Manager (DTM)
    1.4.188.39
    Language neutral
  • DTM Single, MicropilotS_FMR53x_V3_00, 10.07.2019 (Level, Micropilot S, 0x0010)

    HART,

    DeviceCare Version: 1.06.00

    Field Xpert - SMT70 Version: 1.03.00

    FieldCare Version: 2.13.00

    Device Type Manager (DTM)
    1.4.188.39
    Language neutral
  • DTM Single, MicropilotS_FMR53x_V1_02, 10.07.2019 (Level, Micropilot S, 0x0010)

    HART,

    DeviceCare Version: 1.06.00

    Field Xpert - SMT70 Version: 1.03.00

    FieldCare Version: 2.13.00

    Device Type Manager (DTM)
    1.4.188.39
    Language neutral
  • Micropilot S

    Produkt kode: FMR530-
    erklæring nummer: HE_00832_01.17
    Produsent Spesifikasjon: RoHS

    Manufacturer Declaration
    Kinesisk
  • Cerabar, Cerabar M, Cerabar S, Levelflex, Micropilot, Micropilot S

    Produkt kode: FMR56-, FMR57-, FMR60-, FMR62-, FMR67-, PMC11-, PMC21-, PMC71B-, PMP11-, PMP21-, PMP23-, PMP51-, PMP51B-, PMP55-, PMP71-, PMP71B-, PMP72-, PMP75-, FMR540-, FMR54-, FMR533-, FMR532-, FMR531-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
    erklæring nummer: HE_01158_01.19

    Manufacturer Declaration
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-
    erklæring nummer: HE_00601_01.17
    Produsent Spesifikasjon: RoHS

    Manufacturer Declaration
    Kinesisk
  • Micropilot S

    Produkt kode: FMR530-, FMR531-, FMR532-, FMR533-, FMR540-

    EU Declaration
    Tysk , Engelsk , fr
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR540-
    erklæring nummer: EC_00512_03.17

    EU Declaration
    Tysk , Engelsk , fr
  • Micropilot S

    Produkt kode: FMR540-, FMR530-, FMR531-, FMR532-, FMR533-
    erklæring nummer: EC12017A

    EU Declaration
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR540-
    erklæring nummer: SIL_00258_01.18

    SIL Declaration
    Engelsk
  • SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Floating Switch

    Produkt kode: FTL260-, FTL31-, FTL325N-, FTL325P-, FTL33-, FTL375P-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTS20-, FTW31-, FTW32-, FTW325-, FTW360-, NMR81-, NMR84-, FTI52-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-, FTI51-
    Region: Russia (Declaration of Conformity)
    Godkjenningsnummer: RU D-DE.MO10.B.05528

    Miscellaneous
    Russisk
  • Micropilot, Micropilot M, Micropilot S, SYSTEM

    Produkt kode: NMR84-, NMR81-, FMR540-, FMR54-, FMR533-, FMR532-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMR231-, FMR230-, FMR20-, FMR10-
    Region: Russia (TR CU)
    Godkjenningsinstitusjon: EAC
    Godkjenningsnummer: TС RU D-DE.MU62.B.02537

    Miscellaneous
    Russisk
  • Micropilot, Micropilot M, Micropilot S

    Produkt kode: FMR57-, FMR56-, FMR540-, FMR54-, FMR533-, FMR532-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMR250-, FMR244-, FMR240-, FMR231-, FMR230-
    Region: Russia (TR CU)
    Godkjenningsinstitusjon: EAC
    Godkjenningsnummer: TC BY_112 11.01. TP020 003 126

    Miscellaneous
    Russisk
  • Levelflex, Micropilot, Micropilot M, Micropilot S, SYSTEM

    Produkt kode: NMR84-, NMR81-, FMR540-, FMR54-, FMR533-, FMR532-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMR231-, FMR230-, FMR20-, FMR10-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
    Region: Russia (TR CU)
    Godkjenningsinstitusjon: EAC
    Godkjenningsnummer: TC № RU D-DE.AL32.B.07215

    Miscellaneous
    Russisk
  • SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquipoint, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Floating Switch, Einstabsonde, Dreistabsonde, Doppelstabsonde

    Produkt kode: FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL33-, FTL325P-, FTL325N-, FTL31-, FTL260-, FTI52-, FTI51-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTS20-, FTW23-, FTW31-, FTW32-, FTW325-, FTW33-, FTW360-, NMR81-, NMR84-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-
    Region: Russia (Declaration of Conformity)
    Godkjenningsnummer: RU D-DE.MO10.B.05531

    Miscellaneous
    Russisk
  • Micropilot M, Micropilot S

    Produkt kode: FMR540-, FMR533-, FMR532-, FMR531-, FMR530-, FMR250-, FMR245-, FMR244-, FMR240-, FMR231-, FMR230-
    Region: Russia (TR CU)
    Godkjenningsinstitusjon: EAC
    Beskyttelse: Ex d [ia], Ex e mb [ia], Ex ia, Ex ta, Ex ta/tc, Ex ta/tb

    Explosion Protection
    Russisk
  • Micropilot S

    Produkt kode: FMR530-, FMR531-, FMR532-, FMR533-, FMR540-
    Region: China
    Godkjenningsinstitusjon: NEPSI
    Kategori: zone 0,1
    Beskyttelse: Ex ia IIC T6...T1

    Explosion Protection
    Kinesisk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR540-
    Region: Europe (ATEX)
    Godkjenningsinstitusjon: PTB

    Explosion Protection
    Tysk , Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR540-
    Region: Europe (ATEX)
    Godkjenningsinstitusjon: PTB
    Kategori: II 2 G, II 1/2 G
    Beskyttelse: Ex ia IIC T6...T1 Ga/Gb, Ex ia IIC T6...T1 Gb

    Explosion Protection
    Tysk , Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR531-, FMR540-
    Region: Canada, USA
    Godkjenningsinstitusjon: CSA
    Kategori: I,II,III/1,2/A,B,C,D,E,F,G/T6, I/zone 2, I/zone 0
    Beskyttelse: IS/NI, AEx/Ex/ia/IIC/T6, AEx/Ex/nA/IIC/T6

    Explosion Protection
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR531-, FMR540-
    Region: Canada, USA
    Godkjenningsinstitusjon: CSA
    Kategori: I,II,III/1,2/A,B,C,D,E,F,G/T6, I/zone 2, I/zone 0
    Beskyttelse: IS/NI, AEx/Ex/ia/IIC/T6, AEx/Ex/nA/IIC/T6

    Explosion Protection
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR540-
    Region: International (IECEx)
    Godkjenningsinstitusjon: PTB
    Beskyttelse: Ex ia IIC T6...T1 Ga/Gb, Ex ia IIC T6...T1 Gb

    Explosion Protection
    Engelsk
  • Micropilot S

    Produkt kode: FMR540-, FMR532-, FMR533-, FMR531-, FMR530-
    Region: USA, Canada
    Godkjenningsinstitusjon: CSA
    Kategori: I,II,III/1,2/A,B,C,D,E,F,G/T6, I/zone 2, I/zone 0
    Beskyttelse: AEx/Ex/nA/IIC/T6, AEx/Ex/ia/IIC/T6, IS/NI

    Explosion Protection
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR540-
    Region: Europe
    Godkjenningsinstitusjon: Endress+Hauser
    Kategori: II 3 G
    Beskyttelse: Ex nA IIC T6 Gc

    Explosion Protection
    Tysk , Engelsk , fr
  • Micropilot S

    Produkt kode: FMR540-, FMR532-, FMR533-, FMR531-, FMR530-
    Region: USA
    Godkjenningsinstitusjon: FM
    Kategori: I/2/A,B,C,D/T6, I,II,III/1/A,B,C,D,E,F,G/T6, II,III/1/E,F,G/T6...T1
    Beskyttelse: IS/NI/DIP

    Explosion Protection
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR540-
    Region: Germany
    Godkjenningsinstitusjon: DIBt
    Godkjenningsnummer: DIBTZ-65.16-300

    Overfill Prevention
    Tysk
  • Micropilot S, Liquiphant S, Levelflex, Micropilot, Liquiphant M, Minicap, Nivector, Prosonic M, Prosonic S, Prosonic T, Pumpenschutz, Solicap M, Solicap S, Soliphant M, Soliphant T, SYSTEM, Liquipoint T, Liquipoint, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Einstabsonde, Dreistabsonde, Doppelstabsonde

    Produkt kode: FTL51-, FMP54-, FMP52-, FMR52-, FMR54-, FMP57-, FMP55-, FMP51-, FMR51-, FMR57-, FMP53-, FMR56-, FMP56-, FMR53-, FMR50-, FMP50-, FMU41-, FMU42-, FTL51H-, FTL50H-, FMU43-, FMU44-, FTL51C-, FTL70-, FMU40-, FMI52-, FTL50-, FTL71-, FTM51-, FTI52-, FMR532-, FTL81-, FMI51-, FMR533-, FTI51-, FTL85-, FTM52-, FTL33-, FTL31-, FTI77-, FTI56-, FTI55-, FTC968Z-, FTC262-, FTC260-, FTL80-, FTM20-, FTM21-, FTM50-, FTW23-, FTW31-, FTW32-, FTW33-, FTW360-, NMR84-, NMR81-, 11263-, 11362Z-, 11363Z-, 11375Z-, 11961Z-, FDU90-, FDU91-, FDU91F-, FDU92-, FDU95-, FDU96-, FDU93-, FMI21-, FMU30-, FMR540-, FMR530-, FMR10-, FMR20-
    Godkjenningsinstitusjon: TÜV

    Pressure Equipment
    Tysk , Engelsk
  • Micropilot, Micropilot S, SYSTEM

    Produkt kode: NMR84-, NMR81-, FMR67-, FMR62-, FMR60-, FMR57-, FMR56-, FMR540-, FMR54-, FMR533-, FMR532-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMR20-, FMR10-
    Region: Belarus
    Godkjenningsinstitusjon: BEL
    Godkjenningsnummer: 10554

    Metrology
    Russisk
  • Micropilot S

    Produkt kode: FMR533-, FMR532-, FMR531-, FMR530-
    Region: Europe
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: T5754 REV. 4

    Metrology
    Engelsk , Japansk , Nederlandsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR531-, FMR540-
    Godkjenningsinstitusjon: UCM (Ministero dello Sviluppo economico)
    Godkjenningsnummer: 10708, 10711

    Metrology
    Italiensk
  • Micropilot S

    Produkt kode: FMR530-, FMR531-, FMR532-, FMR533-, FMR540-
    Region: Kazakhstan
    Godkjenningsinstitusjon: KazInMetr
    Godkjenningsnummer: 12133

    Metrology
    Russisk
  • Micropilot S, SYSTEM, Tankvision

    Produkt kode: FMR530-, FMR532-, FMR533-, FMR540-, NMT532-, NMT539-, NRF590-, NXA820-, NXA821-, NXA822-
    Region: Bulgaria
    Godkjenningsinstitusjon: BIM (Bulgarian Institude of Metrology)
    Godkjenningsnummer: 12.03.4963

    Metrology
    Bulgarsk
  • Micropilot S

    Produkt kode: FMR530-, FMR531-, FMR532-, FMR533-, FMR540-
    Godkjenningsinstitusjon: UCM (Ministero dello Sviluppo economico)
    Godkjenningsnummer: 10708, 10711

    Metrology
    Italiensk
  • Micropilot S

    Produkt kode: FMR530-
    Region: International
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: OIML10126514-02

    Metrology
    Engelsk
  • Micropilot M, Micropilot S

    Produkt kode: FMR230-, FMR231-, FMR240-, FMR244-, FMR245-, FMR250-, FMR530-, FMR532-, FMR533-, FMR540-
    Region: Russia (GOST)
    Godkjenningsinstitusjon: Rosstandart
    Godkjenningsnummer: DE.C.29.004.A № 31102

    Metrology
    Russisk
  • Micropilot S

    Produkt kode: FMR530-, FMR531-, FMR532-, FMR533-
    Region: Austria
    Godkjenningsinstitusjon: BEV
    Godkjenningsnummer: GZ5766/2004

    Metrology
    Tysk
  • Micropilot S, Sakura, System&Gauging

    Produkt kode: NMT535-, NMT532-, NMT536-, NRF560-, NRF561-, NRM570-, FMR530-, FMR531-, FMR532-, FMR533-, NMS531-, NMS536-, NMS535-, NMS534-, NMS532-
    Region: Indonesia
    Godkjenningsinstitusjon: MIGAS
    Godkjenningsnummer: MIGAS

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-
    Region: Belgium
    Godkjenningsinstitusjon: ME
    Godkjenningsnummer: 6.0.027.02-B-16

    Metrology
    Nederlandsk
  • Micropilot S

    Produkt kode: FMR532-, FMR530-, FMR531-, FMR533-
    Region: International
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: OIML11200131-13.01

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR531-, FMR532-, FMR533-
    Region: Europe
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: T7480 REV. 4

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-
    Region: International
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: OIML10126514-02

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-
    Region: International
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: OIML10126514-02

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-
    Region: International
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: OIML10126514-01

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-, FMR533-
    Region: Serbia and Montenegro (Jugoslavia)
    Godkjenningsnummer: DZ-8-22

    Metrology
  • Micropilot S

    Produkt kode: FMR530-
    Region: International
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: OIML10126514-01

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR531-, FMR532-, FMR533-
    Region: Europe
    Godkjenningsinstitusjon: PTB
    Godkjenningsnummer: PTB4413-0106

    Metrology
    Tysk , Engelsk , Japansk
  • Micropilot S

    Produkt kode: FMR530-
    Region: International
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: OIML10126514-03

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-
    Region: International
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: OIML10126514-03

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR533-, FMR532-, FMR531-, FMR530-
    Region: Hungary
    Godkjenningsinstitusjon: OMH, OMH
    Godkjenningsnummer: H_OMH_TH-8072_3_2002

    Metrology
    Ungarsk
  • Micropilot S

    Produkt kode: FMR530-
    Region: International
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: OIML10126514-01

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-
    Region: International
    Godkjenningsinstitusjon: NMI
    Godkjenningsnummer: OIML10126514-03

    Metrology
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-
    Region: International
    Godkjenningsinstitusjon: DNVGL

    Marine
    Engelsk
  • Micropilot S

    Produkt kode: FMR530-, FMR532-
    Godkjenningsinstitusjon: ABS

    Marine
    Engelsk

Tilbehør / reservedeler

Nr
Order code
Specification
  • 25
    • Nr 25 Order code 518710-0020

      Cover T3/T12 Alu, coated, gasket

      Material: aluminium, coated. O-ring EPDM. Usage: FMR230/FMR231,FMR240/FMR244/ FMR245, FMR250, FMR530/FMR531/FMR532/ FMR533, FMR540, FMU40/FMU41/FMU42.

  • 20
    • Nr 20 Order code 52005936

      Cover F12/T12 Alu, window, gasket

      Material: aluminium. Usage: VU331, housing F12/T12, Micropilot M/S, Prosonic M, Levelflex M.

  • 11
    • Nr 11 Order code 52005643

      Hood housing T12

      Cable compartment, electronics side. Usage: Micropilot M/S, Prosonic M, Levelflex M.

  • 35
    • Nr 35 Order code 52005586

      Terminal module 5-pole, FMR53x

      Usage: housing T12, FMR530/FMR531/FMR532/FMR533, till CW20/2009.

    • Nr 35 Order code 71020581

      Terminal module 5-pole, Ex i, FMR53x/540

      Usage: FMR530/FMR532/FMR533, FMR540.

  • 40
    • Nr 40 Order code 52026443

      Display VU331, version 2

      Alphanumeric display, 4-line. Usage: FMR530/532/533, FMR540, FMU40/41/42/43/44.

  • 30
  • 55
    • Nr 55 Order code 52021131

      Horn FMRx3x, DN80/3", 316/316L

      Allen screws + spring washers. Usage: FMR230, FMR530. Nordlock washer.

    • Nr 55 Order code 52021132

      Horn FMRx3x, DN100/4", 316/316L

      Allen screws + spring washers. Usage: FMR230, FMR530. Nordlock washer.

    • Nr 55 Order code 52021133

      Horn FMRx3x, DN150/6", 316/316L

      Allen screws + spring washers. Usage: FMR230, FMR530. Nordlock washer.

    • Nr 55 Order code 52021134

      Horn FMRx3x, DN200/8", 316/316L

      Allen screws + spring washers. Usage: FMR230, FMR530. Nordlock washer.

    • Nr 55 Order code 52021135

      Horn FMRx3x, DN250/10", 316/316L

      Allen screws + spring washers. Usage: FMR230, FMR530. Nordlock washer.

  • 65
    • Nr 65 Order code 52005628

      Sealing kit FMR5xx

      Consists of: 5x O-ring 49.21x3.53 EPDM. 5x O-ring 113.9x3.63 EPDM. 5x O-ring 72.0x3.0 EPDM.

    • Order code 52007646

      Tool for unplugging the antenna cable

      Usage: Micropilot M/Micropilot S.

    • Order code 71006590

      HF-test cable 6GHz

      Coax cable. Usage: FMR230/FMR231, FMR530/FMR531/FMR532/FMR533, FMR540. Dummy antenna.

    • Order code 71007843

      ToF Adapter FXA291

      Usage: connection Micropilot M, Micropilot S, Levelflex M, Prosonic M, Tank Side Monitor, Deltabar S, Cerabar S, Gammapilot M, Micropilot I, to Commubox FXA291.

    • Order code 71067434

      Modification name plate, non Ex

      Blank. To fill in the new order code when a non Ex instrument has been modified. Usage: FMB50/FMB51/FMB52, FMR230/FMR231, FMR240/FMR244/FMR245, FMR250,FMR530/FMR532,FTL50/FTL50H/FTL51/ FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/ FTL85, NMR81, PMC51, PMC71, PMP51/PMP55.

    • Order code 52028063

      HF-test cable 6GHz + resistor

      Coax cable. Termination resistor / connection piece. Usage: FMR530/FMR532/FMR533, FMR540. Dummy antenna.

  • Erstatter

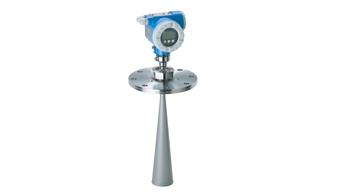

    • Micropilot FMR540 - Radar

      Micropilot S FMR540

      Continuous and non-contact level measurement in liquids. For custody transfer and inventory control applications with NMi- and PTB-approvals. Horn antenna is designed for all small nozzles sizes.

Suksesshistorier

Sammenlign produkter
Vi bruker informasjonskapsler ("cookies") til å lagre informasjon på enheten din, og dette hjelper oss med å tilpasse og forbedre din interaksjon med oss. Du finner mer informasjon om informasjonskapsler i personvernerklæringen.
