Modular RTD thermometer

TST90

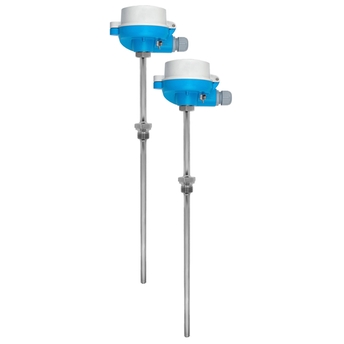

Modular RTD thermometer ©Endress+Hauser

Comprehensive and common temperature measurement technology for almost all branches of industry

The thermometer is mainly used in the chemical industry but also finds its use in other branches. The device is used for high-precision measurement of temperature
differences with matched sensor pairs. A variety of dimensions offers flexible application possibilities.

  • Enkle produkter

  • Enkelt å velge, intallere og bruke

Tekniske egenskaper

Enkelhet

  • Standardprodukter

  • Pålitelige, robuste og lette å vedlikeholde

Tekniske egenskaper

Enkelhet

  • High- end produkter

  • Høyst funksjonelle og praktiske

Tekniske egenskaper

Enkelhet

  • Spesialprodukter

  • Designet for krevende applikasjoner

Tekniske egenskaper

Enkelhet

Varierende

FLEX utvalget Tekniske egenskaper Enkelhet
  • F
  • L
  • E
  • X

Fundamental utvalg

Møter dine grunleggende målebehov

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Lean utvalg

Håndter henkelt dine kjerneprosesser

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Extended utvalg

Optimaliser prosessene dine med innovative teknologier

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Xpert utvalg

Mestre de mest utfordrende applikasjonene dine

Tekniske egenskaper
Enkelhet

Varierende

  • Spesifikasjonene kort oppsummert

    • Accuracy

      +/- 0.05 K (refering to delta-T)

    • Response time

      depending on configuration
      t50 = 10 s
      t90 = 31 s

    • Max. process pressure (static)

      at 20 °C: 50 bar (725 psi)

    • Operating temperature range

      PT 100:
      -50 °C …200 °C
      (-58 °F ...392 °F)

    • Max. immersion length on request

      up to 4.000,00 mm (157,48'')

Hurtigvalg

Velg ett av våre foreslåtte alternative
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer
  • Fordeler

    • Fast replaceability of the insert

    • High degree of insert compatibility and design as per DIN 43772

    • Fast response time with reduced tip

  • Bruksområde

    • Universally usable for thermal energy measurements

    • Measuring range: -200 to +600 °C (-328 to 1112 °F)

    • Sensors in matched pairs within the range:

      0 to 120 °C (±0.05 K)

      –40 to 0 °C (±0.1 K)

    • Protection class: up to IP68

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    modular temperature assembly (paired)

    threaded process connection

    with neck

    incl. thermowell / protection tube (metal)

  • Thermowell / protection tube

    welded protection tube

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    9,0 mm (0,35'')

  • Max. immersion length on request

    up to 4.000,00 mm (157,48'')

  • Material protection tube/ thermowell

    1.4571 (316Ti)

  • Optional coating

    Not defined

  • Process connection

    male thread:

    G1/2"

  • Tip shape

    straight

    tapered

  • Surface roughness Ra

    Not defined

  • Operating temperature range

    PT 100:

    -50 °C …200 °C

    (-58 °F ...392 °F)

  • Max. process pressure (static)

    at 20 °C: 50 bar (725 psi)

  • Accuracy

    +/- 0.05 K (refering to delta-T)

  • Response time

    depending on configuration

    t50 = 10 s

    t90 = 31 s

  • Integration head transmitter

    no
