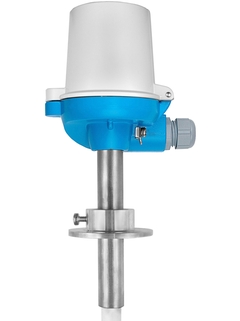

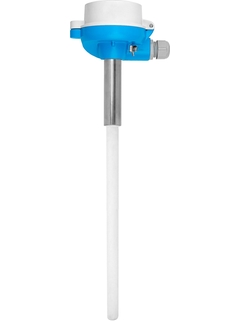

Omnigrad S TAF11
High temperature TC thermometer
Applicable for steel treatment (annealing), concrete furnaces and primaries
Measuring points with extremely high process temperatures require these special thermometers with ceramic thermowells and thermocouples made from special metals, such as platinum and rhodium. The thermowell made from special materials serves as protection from mechanical and chemical damages in the process and increases the life span of the used sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety.
Long lifetime by usage of innovative thermowell materials with increased wear and chemical resistance
Long term stable measurement due to sensor protection with non-porous materials
Flexible product selection by modular design
Optimized life cycle costs by...
Applicable for steel treatment (annealing), concrete furnaces and primaries. It contains a single or double TC insert and a ceramic protection tube.
Process temperatures: up to +1600 °C (+2912 °F)
Dokumenter / håndbøker / programvare
Tilbehør / reservedeler
Terminal head only on request
Nr B Order code 60000516
Stop Flange adjustable,DIN EN 50446,23mm
Maximum temperature 400 oC. Material cast iron. Counter flangeand gasket not provided. No gas-tight connection. Dimension: d2=23 mm, a=90 mm, c=70 mm. Clampable diameter from 21mm to 22mm.
Nr B Order code 60000517
Stop Flange adjustable,DIN EN 50446,34mm
Maximum temperature 400 oC Material cast iron. Counter flange and gasket not provided. No gas-tight connection. Dimension: d2=33mm, a=90mm, c=70mm. Clampable diameter from 31mm to 33mm.
Order code 60020836
Compression fitting G 3/4", 22,5mm
Maximum temperature 350 oC. Maximum pressure 1 bar. Material 316Ti (1.4571). For Pipe diameters 21.3/22mm. Dimension: A=G 3/4", d=22.5 mm, Wr=41.
Order code 60021425
Compression fitting G1 1/2", 22.5mm
Maximum temperature 350 oC. Maximum pressure 1 bar. Material 316Ti (1.4571). For Pipe diameters 21,3/22mm. Dimension: A=G 1 1/2", d=22,5 mm, Wr=55.
Order code 60021757
Compression fitting G 1", 22,5mm
Maximum temperature 350 oC. Maximum pressure 1 bar. Material 316Ti (1.4571). For Pipe diameters 21,3/22mm. Dimension: A=G 1", d=22,5 mm, Wr=41.
Order code 60022497
Compression fitting G1 1/2", 35mm
Maximum temperature 350 oC. Maximum pressure 1 bar. Material 316Ti (1.4571). For Pipe diameters 33/33,4mm. Dimension: A=G 1 1/2", d=35 mm, Wr=55.
Order code 71182602
Spare parts kit sealing TA30A/TA30D
5x O-ring 3.69x1.78 5x 0-ring 74.7x2.75
Order code 71044061
Fixing kit cpl.TMT82/85/84 (european)
2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector
Order code TPC100-
Replaceable insert (MgO)
Order code TMT181-
iTEMP TMT181, Head Transmitter PCP
Order code TMT182-
iTEMP TMT182, Head Transmitter HART
Order code TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
Order code TMT84-
iTEMP TMT84, Transmitter PA
Order code TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
Order code FXA195-
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
Order code READWIN-
Readwin 2000 Operation + Read. software
