Spesifikasjonene kort oppsummert
-
Measurement range
0.05 to 20 mg/l NH4-N
0.5 to 50 mg/l NH4-N
1 to 100 mg/l NH4-N
0.5 to 50 mg/l with dilution function to maximum 10 to 1000 mg/l NH4-N -
Process temperature
4 to 40 °C (39 to 104 °F)
-
Process pressure
Unpressurized
-
Measuring method
Comply with standard colorimetric measuring principle - indophenol blue method following ISO 7150-1, DIN 38406-5 and GB 7481-87
Bruksområde

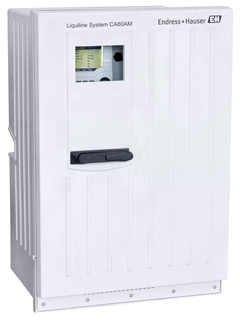

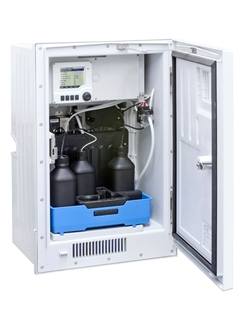

Liquiline System CA80AM offers high-precision ammonium measurement in all critical control points. As member of the Liquiline platform, it enables plug & play and easy upgrade to a measuring station - minimizing the installation effort. Automatic calibration and cleaning as well as the low consumption of reagents save you operating and maintenance costs. Advanced diagnostics with remote access ensure process safety and support you in providing process documentation to the authorities.
Liquiline System CA80AM monitors and controls:
Inlets of wastewater treatment plants
Outlets of wastewater treatment plants for documentation purposes
Aeration basins
Water treatment
Cleaning capacity of municipal and industrial wastewater plants
Fordeler
Fast commissioning and plug & play thanks to Memosens technology and user-friendly operation
Easy upgrade of functionality - even to a complete measuring station - simply by adding modules and connecting Memosens sensors
Advanced diagnostics with remote access for increased process safety
Reduced operating costs through automatic, configurable calibration and cleaning and long reagent shelf life with optional cooling module
Compliance with standard colorimetric measuring principle - indophenol blue method - following ISO 7150-1, DIN 38406-5 and GB 7481-87
Videoer
Extended utvalg
-
High- end produkter
- Høyst funksjonelle og praktiske
Tekniske egenskaper
Enkelhet

-
Standardprodukter
- Pålitelige, robuste og lette å vedlikeholde
Tekniske egenskaper
Enkelhet
-
Spesialprodukter
- Designet for krevende applikasjoner
Tekniske egenskaper
Enkelhet
Varierende
FLEX utvalget | Tekniske egenskaper | Enkelhet |
---|---|---|
Fundamental utvalg Møter dine grunleggende målebehov |
Tekniske egenskaper
|
Enkelhet
|
Lean utvalg Håndter henkelt dine kjerneprosesser |
Tekniske egenskaper
|
Enkelhet
|
Extended utvalg Optimaliser prosessene dine med innovative teknologier |
Tekniske egenskaper
|
Enkelhet
|
Xpert utvalg Mestre de mest utfordrende applikasjonene dine |
Tekniske egenskaper
|
Enkelhet
Varierende |
Forgjenger
-
-
Teknisk informasjon (TI)
Liquiline System CA80AM
Engelsk versjon - 12/2022
Colorimetric analyzer for ammonium
EN NO 02/12/202213/07/202114/02/202009/06/201715/03/2016Språk:
Engelsk
Versjon:
02/12/2022
Filstørrelse:
4.2 MB
Filnavn:
TI01111CEN_0822-00.pdf
-
-
-
Teknisk informasjon (TI)
Liquiline System CA80AM
Colorimetric analyzer for ammonium
EN NO 02/12/202213/07/202114/02/202009/06/201715/03/2016Språk:
Engelsk
Versjon:
02/12/2022
Filstørrelse:
4.2 MB
Filnavn:
TI01111CEN_0822-00.pdf
-
-
-
Driftsinstruksjon (BA)
Memosens
Sensor inputs with Memosens protocol
EN NO 30/05/202228/02/2019Språk:
Engelsk
Versjon:
30/05/2022
Filstørrelse:
3.3 MB
Filnavn:
BA01245CEN_0822-00.pdf
-
-
-
Driftsinstruksjon (BA)
Liquiline System CA80AM
Colorimetric analyzer for ammonium
EN NO 02/12/202213/07/202113/01/202015/01/201715/03/2016Språk:
Engelsk
Versjon:
02/12/2022
Filstørrelse:
6.7 MB
Filnavn:
BA01240CEN_0822-00.pdf
-
-
-
Kort instruksjon (KA)
Liquiline System CA80AM
Kolorimetrisk analysator for ammonium
EN NO 31/05/202119/02/202006/10/201707/04/201701/02/2016Språk:
Norsk
Versjon:
31/05/2021
Filstørrelse:
3.3 MB
Filnavn:
KA01158CNO_0721.pdf
-
-
-
Monteringsanvisning (EA)
Einbauanleitung/ Installation Instructions Kit Module/Modules
Für erweiterte Funktionalität For extended functionality
EN NO 07/07/201425/03/201331/12/2011Språk:
Engelsk
Versjon:
07/07/2014
Filstørrelse:
2.4 MB
Filnavn:
EA00008CA2_0314.pdf
-
-
-
Monteringsanvisning (EA)
Kit CM44x/CSXxx/CA80XX
Module 485MB or 485DP For Ethernet configuration,PROFIBUS DP, Modbus RS485
EN NO 28/11/2022Språk:
Engelsk
Versjon:
28/11/2022
Filstørrelse:
1.8 MB
Filnavn:
EA01447CEN_0122-00.pdf
-
-
-
Monteringsanvisning (EA)
Kit CA80 Outdoor
Kit for mounting analyzer on a post outdoor
EN NO 14/02/2020Språk:
Engelsk
Versjon:
14/02/2020
Filstørrelse:
414.2 KB
Filnavn:
EA01293CEN_0119.pdf
-
-
-
Monteringsanvisning (EA)
SD card kit
Industrial flash drive, 1 GB With firmware, no. 71127100 Without firmware, no. 71110815
EN NO 23/03/202109/10/202020/03/201725/06/201401/07/2012Språk:
Engelsk
Versjon:
23/03/2021
Filstørrelse:
506.9 KB
Filnavn:
EA00011CEN_0621.pdf
-
-
-
Monteringsanvisning (EA)
Einbauanleitung/ Installation Instructions Kit Service-Schnittstelle/Service interface
CDI-Flanschstecker, Gegenmutter CDI-flange connector, counter nut
EN NO 24/06/201431/12/2011Språk:
Engelsk
Versjon:
24/06/2014
Filstørrelse:
2 MB
Filnavn:
EA00002CA2_0214.pdf
-
-
-
Spesialdokumentasjon (SD)
Activation codes kit
For extended functionality
EN NO 04/05/202003/05/201816/09/201424/03/201425/03/2013Språk:
Engelsk
Versjon:
04/05/2020
Filstørrelse:
102.9 KB
Filnavn:
SD00166CEN_0620.pdf
-
