Memograph M RSG45
Advanced Data Manager

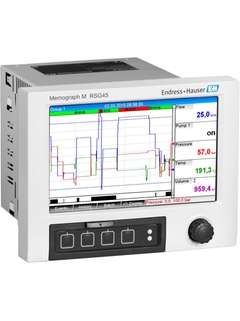

Advanced Data Manager Memograph M, RSG45 ©Endress+Hauser

Advanced Data Manager Memograph M, RSG45

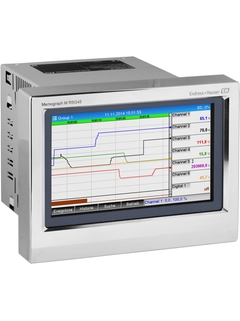

Advanced Data Manager Memograph M, RSG45 with stainless steel front and touch operation ©Endress+Hauser

Advanced Data Manager Memograph M, RSG45 with stainless steel front and touch operation

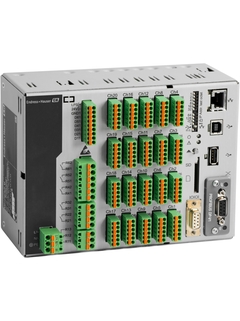

Advanced Data Manager Memograph M, RSG45 DIN rail version without display ©Endress+Hauser

Advanced Data Manager Memograph M, RSG45 DIN rail version without display

Saves, visualizes, analyzes and communicates

The Advanced Data Manager is a flexible and powerful system for organizing process values. Thanks to its intuitive operation, Memograph M adapts quickly and easily to any application. The process values are clearly presented on the display and logged safely, limits are monitored and analyzed. Via communication protocols, the measured and calculated values can be easily transferred to higher-level systems and plant modules can be interconnected. Also available as DIN rail version without display.

  • Fordeler

    • High degree of data security: tamper-proof data storage and personalized access authorization with electronic signature (FDA 21 CFR 11)

    • HART input card: HART sensors directly connected provide accurate process values for calculation and logging

    • HART...

  • Bruksområde

    The solution for all your tasks. For example, for:

    • Process measuring technology

    • Power stations and energy supply

    • Steam boiler monitoring/efficiency calculation

    • Food and pharmaceutical industry

    • Plant and apparatus engineering and construction; Milk...

Details

  • Measuring principle

    Energy manager

  • Measuring principle

    Energymanager

  • Function

    Secure data recording and signal analysis

    visualization

    integrated web server for device set-up

    HART(R) transparency, RSG45 as a HART modem
    E-Mail notification (encrypted mails)

    100 ms scan rate, high speed storage cycle 100 ms
    modular design for simple expansion
    data readout and processing via Field Data Manager Software

    OPC server for indication of instantaneous values (optional)

  • Input

    20 analog (max) (U, I, TC, RTD, frequency, pulse)

    20 HART (max) (HART, 4…20mA)

    14 digital (max) (control, event and counting inputs)

  • Output

    12 relays (max)

    2 analog (max) (I, pulse)

    1 transmitter power supply

  • Interface

    RS232/485

    Ethernet

    USB

    Modbus RTU/TCP Slave

    Modbus RTU/TCP Master

    Profibus DP

    PROFINET Device

    EtherNet/IP Adapter

  • Storage/Recording

    internal memory

    SD card

    USB flash drive

  • Display

    TFT 7" colour graphic display

    TFT 7" colour graphic display with touch panel

  • Housing

    panel mounting with zink diecast bezel

    panel mounting with stainless steel bezel

    desktop housing

    field housing

  • Power supply

    100...230 V AC +/-10%

    24V (-10%; +15%) AC/DC

  • Certificates

    CE

    EAC

    UL (US und CA)

    ATEX II2G Ex px IIC Gb

    ATEX II2D Ex pD IIIC Db

    UL listed

    PROFINET certified

  • Software package

    Batch software

    Waster water software

    Tele-alarm software

    Energy software (water + steam)

    Waste water + storm overflow + Tele Alarm

    Tele-alarm software + energy software (water + steam)

  • Measuring principle

    Energy manager

  • Measuring principle

    Energymanager

  • Function

    Mass flow and energy calculation for Water and Steam.

  • Calculations

    Mass/heat quantity

    heat quantity difference

  • Number of applications

    Not defined

  • Data storage

    yes

  • Calculation standards

    IAPWS-97

  • Communication

    RS232/485

    Ethernet

    USB

    Modbus RTU/TCP Slave

    Modbus RTU/TCP Master

    Profibus DP

    PROFINET Device

    EtherNet/IP Adapter

  • Power supply

    Not defined

  • Loop power supply

    24 V DC +/-15%

  • Protection class

    IP65 (front-panel)

  • Input

    0...20 universal

    HART

    6…14 digital

  • Output

    2 analog

  • Dimensions (WxHxD)

    195,2 x 149,2 x 227,1 mm (7,69" x 5,87" x 8,94")

  • Operation

    Navigator on-site, web server and via FieldCare/DeviceCare

  • Display

    7“ TFT

  • Software functions

    Internal calculation for mass flow and energy

  • Certificates

    CE

    EAC

    UL (US und CA)

    ATEX II2G Ex px IIC Gb

    ATEX II2D Ex pD IIIC Db

    UL listed

    PROFINET certified
