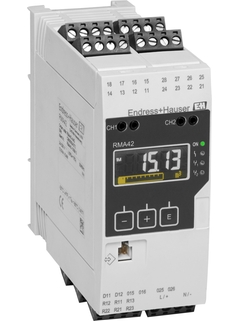

RMA42
Process transmitter with control unit
Universal transmitter, loop power supply, barrier and limit switch in one device!
Analog measured values are indicated, evaluated and calculated by the process transmitter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.
- F
- L
- E
- X
-
Standardprodukter
- Pålitelige, robuste og lette å vedlikeholde
Tekniske egenskaper
Enkelhet
-
Spesialprodukter
- Designet for krevende applikasjoner
Tekniske egenskaper
Enkelhet
Varierende
FLEX utvalget | Tekniske egenskaper | Enkelhet |
---|---|---|
Fundamental utvalg Møter dine grunleggende målebehov |
Tekniske egenskaper
|
Enkelhet
|
Lean utvalg Håndter henkelt dine kjerneprosesser |
Tekniske egenskaper
|
Enkelhet
|
Extended utvalg Optimaliser prosessene dine med innovative teknologier |
Tekniske egenskaper
|
Enkelhet
|
Xpert utvalg Mestre de mest utfordrende applikasjonene dine |
Tekniske egenskaper
|
Enkelhet
Varierende |
-
Spesifikasjonene kort oppsummert
-
Input
2 x universal (current, voltage, R, RTD, TC, resistance)
-
Output
2 x Analog (current, voltage)
-
Output
2 x Analog (current, voltage)
-
Display
LCD
7 segment
Multicolour
Bargraph
TAG unit
Colour change in case of failure -
Power Supply
Not defined
-
Hurtigvalg
individuell konfigurasjon
-
Fordeler
SIL 2 approval (optional);
Marine approval
1 or 2 calculated values and linearization table
Min./max. value saved
5-digit 7-segment LC display, backlit
1 or 2 universal inputs
2 relays (optional)
Digital status output (Open Collector)
-
Bruksområde
The RMA42 process transmitter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values...
Dokumenter / håndbøker / programvare
-
RMA42
Technical Information
Technical Information RMA42 universal process transmitter, with control
unit for DIN rail mounting, for monitoring and displaying an
alog measured valuesTechnical Information (TI) -
RMA42
Operating Instructions
Operating Instructions RMA42 Digital process transmitter with control
unit for top hat rail mountingOperating Instruction (BA) -
RMA42
Brief Operating Instructions
Brief operating instructions RMA42
Universal process transmitter with control unit for top hat rail
mountingShort Instruction (KA)07/19Tysk , Engelsk , fr -
ATEX Safety Instructions: II(1) G [Ex ia] IIC, II (1)D [Ex ia] IIIC
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex Safety Instructions (XA) -
Control Drawing CSA AIS, ANI, NI RMA42
Process Transmitter with Control Unit RMA42
Installation Notes for Hazardous LocationsCertificate FM/CSA (ZD) -
Control Drawing FM approval AIS, ANI RMA42
Process Transmitter with Control Unit RMA42
Installation Notes for Hazardous LocationsCertificate FM/CSA (ZD) -
Levelflex FMP54 and FMP54 with process transmitter RMA42 or RMA422
Safety instructions for steam boiler approval
Special Documentation
Run Time Measurement (TDR)
Special Documentation (SD) -
Levelflex FMP54; Levelflex FMP54 with process transmitter RMA42
Planning instructions for steam boiler approval
Guided Level radar as a limiting device for low water an high water
levelsSpecial Documentation (SD) -
SIL manual RMA42
Functional Safety Manual for Process Transmitter RMA42
Special Documentation (SD) -
Manufacturer information NE53
Software update of RIA45, RIA46, RMA42
Manufacturer Information (MI) -
kurier 01-2014
Kundenmagazin: Ihr Partner für mehr Anlagensicherheit
Customer Magazine (CM)01/14Tysk -
Misura della temperatura e componenti di sistema per i settori
alimentare e
farmaceutico.
Misura della temperatura e componenti di sistema per i settori
alimentare e
farmaceutico.
La nuova frontiera dell'igiene: un'offerta complete per applicazioni
igieniche e asettichePublications (PU)01/20Italiensk -
Sistem Bileşenleri ve Kayıt Cihazları
Sisteminiz için tamamlayıcı çözümler
Fields of Activities (FA)10/14Tyrkisk -
Системные компоненты и Регистраторы
Обзор продукции
Fields of Activities (FA)06/13Russisk -
Componentes de sistema y registradores
Soluciones para el lazo de control
Indicadores, dispositivos de interfaz, protección contra sobretensiones,
gestores de aplicaciones y energía, registradores sin papel y paquetes
de software asociado para la automatización de procesos.Fields of Activities (FA)05/20Spansk -
System Components and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automationFields of Activities (FA)04/18Polsk -
System Components
e Data Managers
Componenti di sistema e data manager
Soluzioni per il completamento del punto di misuraFields of Activities (FA)04/18Italiensk -
Komponenty Systemów kontrolno-pomiarowych
Wskaźniki panelowe i obiektowe, zasilacze, bariery,
przetworniki sygnałów procesowych, ograniczniki przepięć
oraz przemysłowe liczniki ciepła i przepływu.Fields of Activities (FA)03/10Polsk -
System Products and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automationFields of Activities (FA)02/20Engelsk -
Systemprodukte und Datenmanager
Lösungen zur Komplettierung der Messstelle
Anzeiger, Interfacegeräte, Überspannungsschutz, Energie- und
Applikationsmanager, Datenmanager, Bildschirmschreiber und
Softwarepakete für die ProzessautomatisierungFields of Activities (FA)02/20Tysk -
Produits système et data managers
Solutions associées
Fields of Activities (FA)01/19fr -
Mesure de niveau fiable par radar dans les silos circulaires à
compartiments
HeidelbergCement fait confiance au Micropilot FMR56
Case Studies (CS)02/15fr -
Medición de nivel con radar en silos circulares compartimentados
Cementos Heidelberg confía en Micropilot FMR56
Case Studies (CS)02/15Spansk -
Reliable level radar measurement in circular compartment silos
HeidelbergCement trusts Micropilot FMR56
Case Studies (CS)02/15Engelsk -
E-direct Produktcatalogus 2018-2019
High quality, low price
Endress+Hauser Catalogues (EC)10/18Nederlandsk -
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !
Endress+Hauser Catalogues (EC)09/19fr -
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!
Endress+Hauser Catalogues (EC)06/20Tysk -
Messumformer RMA42
Universeller Prozesstransmitter mit Steuereinheit, für Montage auf
Hutschiene, zur Überwachung und Darstellung von analogen MesswertenTender Text12/12Tysk -
DTM Single, Display_RMA42_CDI_FW1_03_zz, 18.11.2020 (Components, Display, 0x007F)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.38Language neutral -
DTM Single, RMA42_V1_02, 18.11.2020 (Components, Display, 0x007F)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.38Language neutral -
DTM Single, RMA42_V1_01, 18.11.2020 (Components, Display, 0x007F)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.38Language neutral -
DTM Single, Display_RMA42_CDI_FW1_02_zz, 18.11.2020 (Components, Display, 0x007F)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.38Language neutral -
ComDTM Single, CDI_CommDTM, 02.12.2019
Common Device Interface,
DeviceCare Version: 1.05.00
FieldCare Version: 2.13.00Communication DTM2.09.07Language neutral -
contactors / transmitters
Produkt kode: RMA42-
erklæring nummer: HE_00446_01.17
Produsent Spesifikasjon: RoHSManufacturer DeclarationEngelsk -
contactors / transmitters
Produkt kode: RMA42-
erklæring nummer: EC_00184_01.16EU DeclarationTysk , Engelsk , fr -
Soliswitch, process displays, Preline, power supply and barrier, power supply, over voltage protector, Mini-Log, Memo-Graph, Ecograph, controller, contactors / transmitters, Configuration Kit
Produkt kode: RIA452-, RIA452L-, RIA46-, RID14-, RID16-, RMA42-, RMC621-, RMC621L-, RMS621-, RMS621L-, RN221N-, RN221NL-, RNB130-, RNS221-, RNS221L-, RS33-, RSG35-, RSG40-, RSG45-, RTA421-, RTA421L-, TXU10-, RIA45-, FML621-, FTE20-, FTE30-, FTE31-, HAW562-, HAW569-, OFTE20-, ORIA15-, ORIA45-, ORIA46-, ORMA42-, ORSG35-, ORSG45-, OSG40-, OSG45-, RA33-, RB223-, RDL10-, RH33-, RIA14-, RIA15-, RIA16-
erklæring nummer: EC_00569_01.17EU DeclarationTysk , Engelsk , fr -
contactors / transmitters
Produkt kode: RMA42-
erklæring nummer: EC_00339_01.16EU DeclarationTysk , Engelsk , fr -
contactors / transmitters, process displays
Produkt kode: RMA42-
erklæring nummer: SIL_00154_01.17SIL DeclarationTysk , Engelsk -
contactors / transmitters, process displays
Produkt kode: RIA45-, RIA46-, RMA42-
Region: China
Godkjenningsinstitusjon: ACMA
Godkjenningsnummer: MD-17035A/09/ENMiscellaneousEngelsk -
contactors / transmitters, process displays
Produkt kode: RIA14-, RIA15-, RIA16-, RIA45-, RIA452-, RIA46-, RID14-, RID16-, RMA42-
Region: Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: EAEC N RU D-DE.AB53.B.01167/20MiscellaneousRussisk -
contactors / transmitters, process displays
Produkt kode: RIA45-, RIA452-, RIA46-, RMA42-
Region: Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: EAEC N RU D-DE.AB53.B.01171/20MiscellaneousRussisk -
contactors / transmitters
Produkt kode: RMA42-
Region: Europe (ATEX)
Godkjenningsinstitusjon: PTB
Kategori: II (1) D, II (1) G
Beskyttelse: [Ex ia] IIC, [Ex ia] IIICExplosion ProtectionTysk , Engelsk -
contactors / transmitters
Produkt kode: RMA42-
Beskyttelse: [Ex ia Da] IIIC, [Ex ia Ga] IICExplosion ProtectionRussisk -
contactors / transmitters
Produkt kode: RMA42-
Region: USA
Godkjenningsinstitusjon: FM
Kategori: I,II,III/1+2/ABCDEFG
Beskyttelse: AIS, [I/O] AEx [ia] IIC, NI, ANIExplosion ProtectionEngelsk -
contactors / transmitters
Produkt kode: RMA42-
Region: China
Godkjenningsinstitusjon: NEPSI
Beskyttelse: [Ex ia Ga] IICExplosion ProtectionKinesisk -
contactors / transmitters, Levelflex
Produkt kode: FMP54-, RMA42-
Region: Europe
Godkjenningsinstitusjon: TÜVPressure EquipmentTysk , Engelsk -
contactors / transmitters
Produkt kode: RMA42-
Region: International
Godkjenningsinstitusjon: DNVGLMarineEngelsk -
RTD-thermometer, head transmitters, DIN Rail Transmitter, process displays, Memo-Graph, Field transmitter, Ecograph, contactors / transmitters
Produkt kode: TMT85-, TMT162-, TMT142-, RIA14-, RIA16-, RIA45-, RIA46-, RMA42-, RSG35-, RSG45-, TMR31-, TMR35-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT180-, TMT111-, TTR35-, TTR31-, RSG40-
Region: Canada, USA
Godkjenningsinstitusjon: ULOrdinary Location Product SafetyEngelsk
Tilbehør / reservedeler
-
-
Nr 2 Order code RMA42X-DA
Display
-
-
-
Nr 1 Order code RMA42X-HA
Front cover incl. foil
-
-
-
Nr 16 Order code RMA42X-HC
Set fixing lever housing (2 pieces)
-
-
-
Nr 17 Order code RMA42X-HD
Set terminal cover (5 pieces)
-
-
-
Nr 4 Order code RMA42X-NA
Mainboard, 1 Channel w/o relay, non Ex
-
Nr 4 Order code RMA42X-NB
Mainboard, 1 Channel w/o relay, Ex
-
Nr 4 Order code RMA42X-NC
Mainboard, 1 Channel + relay, non Ex
-
Nr 4 Order code RMA42X-ND
Mainboard, 1 Channel + relay, Ex
-
-
-
Order code 51002468
-
-
-
Nr 5 Order code RMA42X-NE
Powerboard, w/o Channel 2, non Ex, 24-230V (-20%...10%)
-
Nr 5 Order code RMA42X-NF
Powerboard, w/o Channel 2, Ex, 24-230V (-20%...10%)
-
Nr 5 Order code RMA42X-NG
Powerboard, with Channel 2, non Ex, 24-230V (-20%...10%)
-
Nr 5 Order code RMA42X-NH
Powerboard, with Channel 2, Ex, 24-230V (-20%...10%)
-
-
-
Nr 7 Order code 71096588
Terminal plug 4p "11 12 13 14" blue
-
-
-
Nr 8 Order code 71096589
Terminal plug 4p "15 16 17 18" blue
-
-
-
Nr 9 Order code 71096590
Terminal plug 4p "21 22 23 24" blue
-
-
-
Nr 10 Order code 71096591
Terminal plug 4p "25 26 27 28" blue
-
-
-
Nr 7 Order code 71096593
Terminal plug 4p "11 12 13 14"
-
-
-
Nr 8 Order code 71096601
Terminal plug 4pole "15 16 17 18"
-
-
-
Nr 9 Order code 71096603
Terminal plug 4pole "21 22 23 24"
-
-
-
Nr 10 Order code 71096611
Terminal plug 4pole "25 26 27 28"
-
-
-
Nr 13 Order code 71142411
Terminal plug 4pol "O16 O15 D12 D11"
-
-
-
Nr 14 Order code 71142413
Terminal plug 4pol "O25 O26"
-
-
-
Nr 11 Order code 71164439
Terminal plug 4pol "R13 R11 R12" coded
-
-
-
Nr 12 Order code 71164440
Terminal plug 4pol "R23 R21 R22" coded
-
-
-
Nr 6 Order code 71164441
Terminal plug 4pol "N / - L / +" cod
-
-
-
Nr 3 Order code RMA42T-
CPU Board (w/o display) RMA42T-
-
-
-
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
-
Forgjenger
