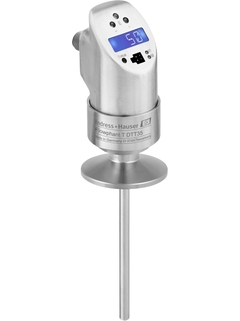

Flowphant T DTT35
Safe monitoring of flow rates and temperature in hygienic processes. Compact and cost-saving.
The switch is designed for the safe monitoring and display of relative mass flow rates of liquid media in hygienic applications, for example the monitoring of cooling water circulation systems and filter monitoring in the beverage industry. It can be selected between one or two switch outputs as well as one switch output and one standardized analog output for flow rates or temperature values. A variety of hygienic process connections leads to a flexible use.
Practically no pressure loss
Configuration software FieldCare for quick configuration and reliable storage of device settings
Optional: 4 to 20 mA analog output to read out the flow rate as percentage value
Optional: second switch output or 4 to 20 mA...
Flow switch for monitoring and displaying relative mass flow rates of liquid media in the range from 0.03 to 3 m/s (0.1 to 9.84 ft/s). Flowphant T DTT35 − with process connections for hygienic applications.
Monitoring cooling water...
Dokumenter / håndbøker / programvare
Tilbehør / reservedeler
The unit is not repairable
Order code 51516983
Commubox FXA291 (Hardware)
Serial USB Computer Interface Technical Data: - USB Version1.1 or higher - Power supply via USB - IP51; NEMA/Typ 3 - Ambient temperature: -20....+60oC - Ex: II(2) G (EEx ia) II C - ATEX: BVS 05 ATEX E 095 Scope of deliovery: Commubox FXA 291 MS Windows USB driver Device is submitted for CSA/FM application. The device may not be modified and may be used with intrinsically safe circuits with corresponding characteristics only (see safety certificate).
Order code 51005148
Cable M12x1 l=5m
5m cable 4x 0.34 mm2, molded PVC angled connector, M12x1 connector screw Cu Sn/Ni, IP67.
Order code 51006327
M12 elbow plug ready for cable, IP67,PG7
Order code TTR31X-AA
Rubber cap for interface terminal Contains 5 pieces
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
