RIA45

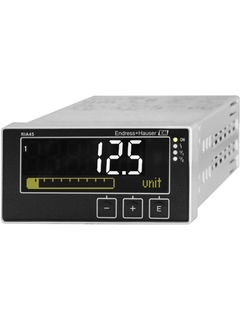

Process meter with control unit
Multifunctional panel mounted process meter for monitoring and indication of analog measured values
Analog measured values are indicated, evaluated and calculated by the process meter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.
- F
- L
- E
- X
-
Standardprodukter
- Pålitelige, robuste og lette å vedlikeholde
Tekniske egenskaper
Enkelhet
-
Spesialprodukter
- Designet for krevende applikasjoner
Tekniske egenskaper
Enkelhet
Varierende
FLEX utvalget | Tekniske egenskaper | Enkelhet |
---|---|---|
Fundamental utvalg Møter dine grunleggende målebehov |
Tekniske egenskaper
|
Enkelhet
|
Lean utvalg Håndter henkelt dine kjerneprosesser |
Tekniske egenskaper
|
Enkelhet
|
Extended utvalg Optimaliser prosessene dine med innovative teknologier |
Tekniske egenskaper
|
Enkelhet
|
Xpert utvalg Mestre de mest utfordrende applikasjonene dine |
Tekniske egenskaper
|
Enkelhet
Varierende |
-
Spesifikasjonene kort oppsummert
-
Input
2 x universal (U, I, R, RTD, TC)
-
Output
1 x loop power supply
-
Output
2 x analogue output (I, U)
1 x loop power supply -
Display
Multicolor backlight LCD
White/black/yellow
Bargraph
Unit
TAG
Alarm warning in plain text -
Power Supply
20...250V AC/DC
-
Hurtigvalg
individuell konfigurasjon
-
Fordeler
-
5-digit 7-segment LC display, backlit
-
1 or 2 universal inputs
-
2 relays (optional)
-
Min./max. value saved
-
1 or 2 calculated values and linearization table
-
Digital status output (Open Collector)
SIL2 approval (optional); marine approval
-
-
Bruksområde
The RIA45 panel meter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are...
Dokumenter / håndbøker / programvare
-
RIA45
Technical Information
Technical Information RIA45 digital process meter and control unit in
panel mounted housingTechnical Information (TI) -
RIA45
Operating Instructions
Operating Instructions RIA45 Digital process meter with control unit in
panel-mounted housingOperating Instruction (BA) -
RIA45
Brief Operating Instructions
Brief Operating Instructions RIA45 digital process meter with control
unit in panel-mounted housingShort Instruction (KA)10/15Tysk , Engelsk -
ATEX Safety Instructions: II(1) G [Ex ia] IIC, II (1)D [Ex ia] IIIC
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex Safety Instructions (XA) -
Control Drawing FM approval AIS, ANI RIA45
Display with Control Functions RIA45
Installation Notes for hazardous locationsCertificate FM/CSA (ZD) -
Control Drawing CSA AIS RIA45
Display with Control Functions RIA45
Installation Notes for hazardous locationsCertificate FM/CSA (ZD) -
Functional Safety Manual RIA45
Functional safety manual for SIL2 certification of process meter RIA45
Special Documentation (SD) -
Manufacturer information NE53
Software update of RIA45, RIA46, RMA42
Manufacturer Information (MI) -
Portfolio Overview
System products and data manager
Products and Solutions for completion of the measuring loop
Publications (PU)05/19Engelsk -
Componenti di sistema e data manager
Soluzioni per il completamento del punto di misura
Publications (PU)05/19Italiensk -
RIA, RID- Systemy_Instalacyjne_05_2010
Wskaźniki procesowe firmy Endress+Hauser dysponują wszystkimi
typowymi, wymaganymi dla punktu pomiarowego funkcjami:
przetwornika, bariery aktywnej, urządzenia sterującego wyposażonego
w przekaźniki, a także czytelnym wyświetlaczem.Publications (PU)03/12Polsk -
Sistem Bileşenleri ve Kayıt Cihazları
Sisteminiz için tamamlayıcı çözümler
Fields of Activities (FA)10/14Tyrkisk -
Системные компоненты и Регистраторы
Обзор продукции
Fields of Activities (FA)06/13Russisk -
Componentes de sistema y registradores
Soluciones para el lazo de control
Indicadores, dispositivos de interfaz, protección contra sobretensiones,
gestores de aplicaciones y energía, registradores sin papel y paquetes
de software asociado para la automatización de procesos.Fields of Activities (FA)05/20Spansk -
System Components
e Data Managers
Componenti di sistema e data manager
Soluzioni per il completamento del punto di misuraFields of Activities (FA)04/18Italiensk -
System Components and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automationFields of Activities (FA)04/18Polsk -
Komponenty Systemów kontrolno-pomiarowych
Wskaźniki panelowe i obiektowe, zasilacze, bariery,
przetworniki sygnałów procesowych, ograniczniki przepięć
oraz przemysłowe liczniki ciepła i przepływu.Fields of Activities (FA)03/10Polsk -
System Products and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automationFields of Activities (FA)02/20Engelsk -
Systemprodukte und Datenmanager
Lösungen zur Komplettierung der Messstelle
Anzeiger, Interfacegeräte, Überspannungsschutz, Energie- und
Applikationsmanager, Datenmanager, Bildschirmschreiber und
Softwarepakete für die ProzessautomatisierungFields of Activities (FA)02/20Tysk -
Produits système et data managers
Solutions associées
Fields of Activities (FA)01/19fr -
E-direct Produktcatalogus 2018-2019
High quality, low price
Endress+Hauser Catalogues (EC)10/18Nederlandsk -
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !
Endress+Hauser Catalogues (EC)09/19fr -
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!
Endress+Hauser Catalogues (EC)06/20Tysk -
Digitaler Prozessanzeiger RIA 45
Anzeigegerät mit Messumformerspeisung 24V DC für aktive und passive
Zweileitergeräte mit LinearisierungsfunktionTender Text07/09Tysk -
DTM Single, RIA45_V1_01, 18.11.2020 (Components, Display, 0x007D)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.38Language neutral -
DTM Single, RIA45_V1_02, 18.11.2020 (Components, Display, 0x007D)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.38Language neutral -
DTM Single, Display_RIA45_CDI_FW_1_03_zz, 18.11.2020 (Components, Display, 0x007D)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.38Language neutral -
ComDTM Single, CDI_CommDTM, 02.12.2019
Common Device Interface,
DeviceCare Version: 1.05.00
FieldCare Version: 2.13.00Communication DTM2.09.07Language neutral -
process displays
Produkt kode: RIA45-
erklæring nummer: HE_00441_01.17
Produsent Spesifikasjon: RoHSManufacturer DeclarationEngelsk -
process displays
Produkt kode: RIA45-
erklæring nummer: EC_00178_01.16EU DeclarationTysk , Engelsk , fr -
process displays
Produkt kode: RIA45-
erklæring nummer: EC_00085_01.15EU DeclarationTysk , Engelsk -
Soliswitch, process displays, Preline, power supply and barrier, power supply, over voltage protector, Mini-Log, Memo-Graph, Ecograph, controller, contactors / transmitters, Configuration Kit
Produkt kode: RIA452-, RIA452L-, RIA46-, RID14-, RID16-, RMA42-, RMC621-, RMC621L-, RMS621-, RMS621L-, RN221N-, RN221NL-, RNB130-, RNS221-, RNS221L-, RS33-, RSG35-, RSG40-, RSG45-, RTA421-, RTA421L-, TXU10-, RIA45-, FML621-, FTE20-, FTE30-, FTE31-, HAW562-, HAW569-, OFTE20-, ORIA15-, ORIA45-, ORIA46-, ORMA42-, ORSG35-, ORSG45-, OSG40-, OSG45-, RA33-, RB223-, RDL10-, RH33-, RIA14-, RIA15-, RIA16-
erklæring nummer: EC_00569_01.17EU DeclarationTysk , Engelsk , fr -
process displays
Produkt kode: RIA45-
erklæring nummer: SIL_00155_01.17SIL DeclarationTysk , Engelsk -
contactors / transmitters, process displays
Produkt kode: RIA14-, RIA15-, RIA16-, RIA45-, RIA452-, RIA46-, RID14-, RID16-, RMA42-
Region: Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: EAEC N RU D-DE.AB53.B.01167/20MiscellaneousRussisk -
contactors / transmitters, process displays
Produkt kode: RIA45-, RIA452-, RIA46-, RMA42-
Region: Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: EAEC N RU D-DE.AB53.B.01171/20MiscellaneousRussisk -
contactors / transmitters, process displays
Produkt kode: RIA45-, RIA46-, RMA42-
Region: China
Godkjenningsinstitusjon: ACMA
Godkjenningsnummer: MD-17035A/09/ENMiscellaneousEngelsk -
process displays
Produkt kode: RIA45-, RIA46-
Region: Europe (ATEX)
Godkjenningsinstitusjon: PTB
Kategori: II (1) GD
Beskyttelse: [Ex ia] IICExplosion ProtectionTysk , Engelsk -
process displays
Produkt kode: RIA45-, RIA46-
Region: USA
Godkjenningsinstitusjon: FM
Kategori: I,II,III/1+2/ABCDEFG
Beskyttelse: AIS, [I/O] AEx [ia] IIC, NI, ANIExplosion ProtectionEngelsk -
process displays
Produkt kode: RIA14-, RIA16-, RIA45-, RIA452-, RIA46-, RID14-, RID16-
Beskyttelse: [Ex ia Ga] IIC T6...T4 Ga, Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Ga, Ex ia IIC T6...T4 Gb, Ex ib IIC T6...T3 Gb, Ex ib IIC Txxx°C Gb, Ex tb IIIC Txxx°C DbExplosion ProtectionRussisk -
process displays
Produkt kode: RIA45-
Region: International
Godkjenningsinstitusjon: DNVGLMarineEngelsk -
RTD-thermometer, head transmitters, DIN Rail Transmitter, process displays, Memo-Graph, Field transmitter, Ecograph, contactors / transmitters
Produkt kode: TMT85-, TMT162-, TMT142-, RIA14-, RIA16-, RIA45-, RIA46-, RMA42-, RSG35-, RSG45-, TMR31-, TMR35-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT180-, TMT111-, TTR35-, TTR31-, RSG40-
Region: Canada, USA
Godkjenningsinstitusjon: ULOrdinary Location Product SafetyEngelsk
Tilbehør / reservedeler
-
-
Nr 3 Order code 71069920
Cover clamp EX protection W07
-
-
-
Nr 1 Order code RIA45X-DA
Housing front + foil, incl. keyboard
-
-
-
Nr 14 Order code 71081257
Threaded bolt tube fixing 105mm
-
-
-
Nr 5 Order code RIA45X-NA
Main board, non Ex, Weidmüller power supply terminal 24-230V (-20%+10%) DC/AC
-
Nr 5 Order code RIA45X-NB
Main board, Ex, Weidmüller Netzklemme 24-230V (-20%+10%) DC/AC
-
Nr 5 Order code RIA45X-NC
Main board, non Ex, Phoenix power supply terminal 24-230V (-20%+10%) DC/AC
-
Nr 5 Order code RIA45X-ND
Main board, Ex, Phoenix power supply terminal 24-230V (-20%+10%) DC/AC
-
-
-
Nr 6 Order code RIA45X-IA
Input card universal, channel 2, non Ex + analog output
-
Nr 6 Order code RIA45X-IB
Input card universal, channel 2, Ex + analog output, Ex ia, IS FM, IS CSA
-
-
-
Nr 7 Order code RIA45X-RA
Relay board + 2 limit relays
-
-
-
Nr 9 Order code 50078843
Terminal plug-in 3pol.for power supply
Ecograph/Memograph/S + Alphalog from unit No.410297XA RIA45, grey coloured connector
-
Nr 9 Order code 71123475
Terminal plug 3pole "N L PE" pitch 5.08
for power supply RSG30: from unit No. DB001004267 orange coloured connector
-
Nr 9 Order code 71296182
Terminal plug 3pole "N L PE" pitch 5.08
-
-
-
Nr 10 Order code 71037350
Terminal strip 4pole FMC1,5/4-ST-3,5
Memograph M for analog output (on digital I/O board) RIA45 for analog input non Ex (terminal x1,x2,x3,x4 + x5,x6,x7,x8)
-
-
-
Nr 13 Order code 71037408
-
-
-
Nr 10 Order code 71074564
Terminal strip 4pole space3.5 Ex codiert
Analog input Ex, blue upstairs (terminal x1, x2, x3, x4)
-
Nr 10 Order code 71074567
Terminal strip 4pole space3.5 Ex codiert
Analog input Ex, blue, down (terminal x5, x6, x7, x8)
-
-
-
Nr 12 Order code 71075062
Terminal strip 4pole space 3.81 non Ex
Terminal analog output 1 + status output (DI11,DI12,O15)
-
-
-
Nr 11 Order code 71075063
-
-
-
Nr 13 Order code 71296188
Terminal plug 3pole "R12 R11 R13"RM5.08
-
Nr 13 Order code 71296190
Terminal plug 3pole "R22 R21 R23"RM5.08
-
-
-
Nr 4 Order code RIA45T-
CPU Board RIA45T
-
-
-
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
-
-
Nr 8 Order code RK01-AG
Mounting set RIA45
-
-
-
Order code
Housing only on request
-
-
