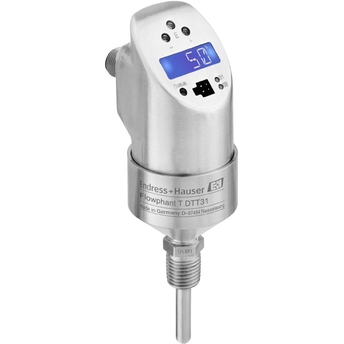

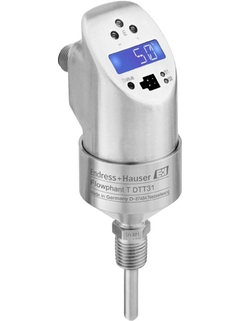

Flowphant T DTT31
Flow switch
Safe monitoring of flow rates and temperature in industrial processes. Compact and cost-saving.
The switch is designed for the safe measurement, display and monitoring of relative mass flow rates of liquid media with practically no pressure loss. It can be selected between one or two switch outputs as well as one switch output and one standardized analog output for flow rates or temperature values. Typical applications are: Monitoring cooling water circulation processes or lubrication systems of pumps and heat exchangers or leak monitoring in process lines.
-
Standardprodukter
- Pålitelige, robuste og lette å vedlikeholde
Tekniske egenskaper
Enkelhet
-
Spesialprodukter
- Designet for krevende applikasjoner
Tekniske egenskaper
Enkelhet
Varierende
FLEX utvalget | Tekniske egenskaper | Enkelhet |
---|---|---|
Fundamental utvalg Møter dine grunleggende målebehov |
Tekniske egenskaper
|
Enkelhet
|
Lean utvalg Håndter henkelt dine kjerneprosesser |
Tekniske egenskaper
|
Enkelhet
|
Extended utvalg Optimaliser prosessene dine med innovative teknologier |
Tekniske egenskaper
|
Enkelhet
|
Xpert utvalg Mestre de mest utfordrende applikasjonene dine |
Tekniske egenskaper
|
Enkelhet
Varierende |
-
Spesifikasjonene kort oppsummert
-
Max. measurement error
2% - 10% (per measurement range)
-
Medium temperature range
-20...+85°C
(-4...+185°F)
CIP-able to 130°C / 266°F -
Max. process pressure
120 bar (1.740 psi)
-
Hurtigvalg
individuell konfigurasjon
-
Fordeler
Practically no pressure loss
Configuration software FieldCare for quick configuration and reliable storage of device settings
Optional: second switch output or 4 to 20 mA analog output for temperature monitoring or for outputting the flow as a percentage
...
-
Bruksområde
Flow switch for monitoring and displaying relative mass flow rates of liquid media in the range from 0.03 to 3 m/s (0.1 to 9.84 ft/s). Flowphant T DTT31 − with thread connections or coupling.
Application examples:
Monitoring cooling water circulation...
Dokumenter / håndbøker / programvare
-
Flowphant T DTT31, DTT35
Technical Information
Flow switch for the safe and reliable monitoring of mass flow rates and
temperature in industrial processesTechnical Information (TI) -
Operating Instructions
Flow switch
Flowphant T DTT31, DTT35
Flow switch for safe measurement and monitoring of mass flow and
temperature in industrial processesOperating Instruction (BA) -
ReadWin® Quick Setup
Operating Manual
ReadWin® Quick Setup Temperature
PC SoftwareOperating Instruction (BA) -
Flowphant T DTT31, DTT35
Operating Instructions
Flow switch
Operating Instruction (BA) -
Flow measurement in utilities - for the US Market
Energy management in your hands - customized solutions for
compressed air, gas, steam and waterCompetence Brochure (CP)12/10Engelsk -
Catálogo soluciones esenciales
Alta calidad a precios competitivos
Competence Brochure (CP)01/17Spansk -
Aluminium Laufen AG
Intelligente Wärmerückgewinnung
Um Prozesswärme optimal zu nutzen und damit die Energieeffizienz zu
steigern, entwickelte Endress+Hauser gemeinsam mit Aluminium Laufen
AG ein modernes Steuerungskonzept.Case Studies (CS)06/13Tysk -
Aluminium Laufen AG
Intelligent heat recovery
In order to optimise the use of process heat and to increase energy
efficiency, Endress+Hauser developed jointly with Aluminium Laufen
AG a modern control concept.Case Studies (CS)06/13Engelsk -
E-direct Produktcatalogus 2018-2019
High quality, low price
Endress+Hauser Catalogues (EC)10/18Nederlandsk -
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !
Endress+Hauser Catalogues (EC)09/19fr -
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!
Endress+Hauser Catalogues (EC)06/20Tysk -
Flowphant DTT 31
Thermischer Durchflussschalter zur Überwachung von Flüssigkeiten
Tender Text12/12Tysk -
Magphant
Produkt kode: DTT31-
erklæring nummer: HE_00470_01.17
Produsent Spesifikasjon: RoHSManufacturer DeclarationEngelsk -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Produkt kode: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
erklæring nummer: EC_00568_01.17EU DeclarationTysk , Engelsk , fr -
Magphant
Produkt kode: DTT31-, DTT35-
erklæring nummer: EC_00351_01.16EU DeclarationTysk , Engelsk , fr -
Product Family: Magphant
Produkt kode: DTT35-, DTT31-
EU DeclarationTysk , Engelsk , fr -
Magphant
Produkt kode: DTT31-, DTT35-
Region: China
Godkjenningsinstitusjon: ACMA
Godkjenningsnummer: MD-17031A/09/ENMiscellaneousEngelsk -
t-mass T, Prowirl R, Prowirl O, Prowirl F, T-MASS I, T-MASS F, t-mass B, t-mass A, t-mass, Prowirl D, PROSONIC FLOW P, Prosonic Flow G, PROSONIC FLOW E, Prosonic Flow 93, Prosonic Flow B, Prosonic Flow 92, Prosonic Flow 91, PICOMAG, Magphant, Dosimass, Promass 40, Promag D
Produkt kode: 92F-, ODMA-, 7R2B-, 7F2B-, 93P-, 93W-, 7O2B-, 7D2B-, 7O2C-, 7F2C-, 7R2C-, 65I-, 93C-, 7D2C-, 65F-, 93TA1-, 9B2B-, 9E1B-, 9EHB-, 9G3B-, 9G5B-, 9P5B-, DMA-, DTI200-, DTT31-, DTT35-, DTT35L-, DTT31L-, 91W-, 8E-, 6TAB-, 6I5B-, 6I3B-, 6F5B-, 6F3B-, 6BAB-, 6AAB-, 5D4C-, 40E-
Region: Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: EACE N RU-D.CH.AD07.B.02246/20MiscellaneousRussisk -
Product Family: Magphant
Produkt kode: DTT31-
Region: Italy
Godkjenningsinstitusjon: CETENAMiscellaneousEngelsk , Italiensk -
Dosimag, Dosimass, Magphant
Produkt kode: DTI200-, DTT31-, DTT35-, DTT35L-
Region: Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: TC RU D-CH.AZ01.B.01169MiscellaneousRussisk -
Magphant
Produkt kode: DTT31-
Region: South Korea
Godkjenningsinstitusjon: KRMarineEngelsk -
Magphant
Produkt kode: DTT31-
Region: International
Godkjenningsinstitusjon: RINAMarineEngelsk -
Magphant
Produkt kode: DTT31-
Region: International
Godkjenningsinstitusjon: DNVGLMarineEngelsk
Tilbehør / reservedeler
-
-
Order code
The unit is not repairable
-
Order code 51516983
Commubox FXA291 (Hardware)
Serial USB Computer Interface Technical Data: - USB Version1.1 or higher - Power supply via USB - IP51; NEMA/Typ 3 - Ambient temperature: -20....+60oC - Ex: II(2) G (EEx ia) II C - ATEX: BVS 05 ATEX E 095 Scope of deliovery: Commubox FXA 291 MS Windows USB driver Device is submitted for CSA/FM application. The device may not be modified and may be used with intrinsically safe circuits with corresponding characteristics only (see safety certificate).
-
Order code 60001328
Gasket DIN7603 A CU 21x26x1.5
-
Order code 51004751
Collar welding boss d6 PEEK + screw
moveable with sealing taper, washer + pressure screw G1/2, material of wetted parts: 316L, PEEK, max. Prozessdruck: 10 bar (145 psi)
-
Order code 51004752
Collar welding boss d6 PEEK w/o screw
moveable with sealing taper + washer, material of wetted parts: 316L, PEEK, max. process pressure: 10 bar (145 psi)
-
Order code 51005148
Cable M12x1 l=5m
5m cable 4x 0.34 mm2, molded PVC angled connector, M12x1 connector screw Cu Sn/Ni, IP67.
-
Order code 51006327
M12 elbow plug ready for cable, IP67,PG7
-
Order code TTR31X-AA
Rubber cap for interface terminal Contains 5 pieces
-
Order code TA50-
-
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
