Hydrostatic
Level measurement
Deltapilot FMB51

Pressure sensor with the Contite measuring cell for hydrostatic level measurement

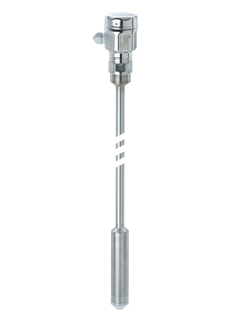

  • Deltapilot FMB51 rod version ©Endress+Hauser
  • Pressure measuring principle

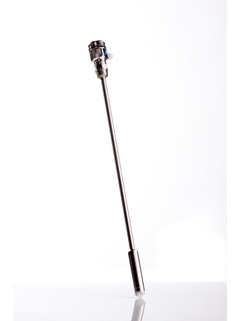

  • Deltapilot FMB51 ©Endress+Hauser

The Deltapilot FMB51 is a rod version with a fixed process connection. This device with the Contite measuring cell and is typically used in the environmental industry. It is made for level measurement in liquid and paste-like media in open or closed containers and is unaffected by possible foam formation. For use in SIL2 safety systems.

Fordeler

  • Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects

  • Modular concept for easy replacement of display or electronics

  • Seamless and independent system integration (HART/PA/FF)

  • Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus

  • International usage thanks to a wide range of approvals

Bruksområde

For level measurement.

  • Process connections: Threads and flanges

  • Temperature: -10 to +85°C (14°F…185° F)

  • Measuring range: 0.1 to 10bar / 100m H2O (1.5 to 150psi / 300ft H2O)

  • Accuracy: ±0.2%, ±0.1% (option)

  • International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval
