Absolute and
gauge pressure

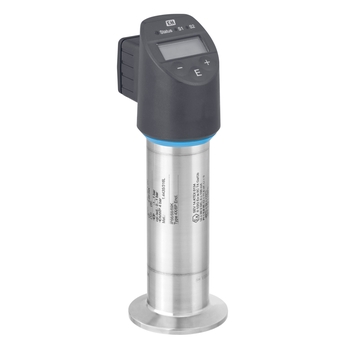

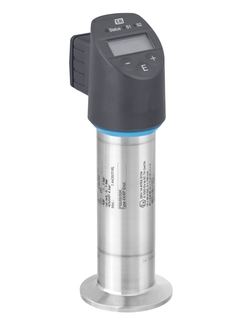

Ceraphant PTP33B

Ceraphant PTP33B - Absolute and gauge pressure ©Endress+Hauser

Pressure measuring principle

Cost-effective pressure switch with fully welded metal sensor for use in hygienic applications

The Ceraphant PTP33B is a price-attractive pressure switch with metal diaphragm for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant. PTP33B with stainless steal housing is 3-A and EHEDG approved. The IO-Link capability allows easy integration and parametrization of the device.

  • Enkle produkter

  • Enkelt å velge, intallere og bruke

Tekniske egenskaper

Enkelhet

  • Standardprodukter

  • Pålitelige, robuste og lette å vedlikeholde

Tekniske egenskaper

Enkelhet

  • High- end produkter

  • Høyst funksjonelle og praktiske

Tekniske egenskaper

Enkelhet

  • Spesialprodukter

  • Designet for krevende applikasjoner

Tekniske egenskaper

Enkelhet

Varierende

FLEX utvalget Tekniske egenskaper Enkelhet
  • F
  • L
  • E
  • X

Fundamental utvalg

Møter dine grunleggende målebehov

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Lean utvalg

Håndter henkelt dine kjerneprosesser

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Extended utvalg

Optimaliser prosessene dine med innovative teknologier

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Xpert utvalg

Mestre de mest utfordrende applikasjonene dine

Tekniske egenskaper
Enkelhet

Varierende

  • Spesifikasjonene kort oppsummert

    • Measuring cell

      +400 mbar....+40 bar
      (+6 psi....+600 psi)

please wait Loading alternative products

Hurtigvalg

Velg ett av våre foreslåtte alternative
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer
  • Fordeler

    • Integrated switching electronics for decentral and economic process monitoring and control

    • Function check and information on site thanks to LEDs and digital display

    • Compact pressure transducer for hygienic applications

    • Suitable for CIP/SIP cleaning

    • Small...

  • Bruksområde

    Pressure switch for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.

    • Process connections: Hygienic connections, threads

    • Process temperature: -10 to +100°C (+14 to +212°F); +135°C (275°F) for max. 1h

    • Process pressure: 400mbar...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Pressure switch

  • Characteristic

    Intelligent pressure switch with metal diaphragm for hygienic applications,

    longterm stable

  • Supply voltage

    10....30 VDC

  • Reference Accuracy

    0.5 %,

    Platinum: 0.3 %

  • Long term stability

    0.2 % of URL/year

  • Process temperature

    -40 °C...+100 °C

    (-40 °C...+212 °F)

  • Ambient temperature

    -20 °C...+70 °C

    (-4 °F...+158 °F)

  • Measuring cell

    +400 mbar....+40 bar

    (+6 psi....+600 psi)

  • Max. overpressure limit

    160 bar (2320 psi)

  • Process connection

    Thread: M24

  • Process connection hygienic

    DIN11851, Tri Clamp, SMS, Varivent

  • Communication

    1x PNP switch

    2x PNP switch

    1x PNP switch + 4...20 mA analogue

  • Design approvals

    EN 10204-3.1 final inspection report,

    Cleaned from oil and grease,

    Set min alarm

  • Hygienic approvals

    FDA concurring

    3A, EHEDG,

    EG1935/2004

  • Specialities

    Digital display,

    Fully welded process connections

Dokumenter / håndbøker / programvare

Tilbehør / reservedeler

Nr
Order code
Specification
    • Order code

      Unit is not repairable.

    • Order code 71336104

      Valve Plug ISO4400 M16, PTP/PTC3xB

      4-pole. Consists of: plug connector, srew, seal. Usage: PTC31B, PTP31B/PTP33B.

    • Order code 71336105

      Valve plug ISO4400 NPTF1/2, PTP/PTC3xB

      4-pole. Consists of: plug connector, srew, seal. Usage: PTC31B, PTP31B/PTP33B.

    • Order code 52024267

      EPDM O-rings process adapter M24

      5x O-ring 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTC31, PTP31/PTP33B/PTP35, QMW43. process adapter M24.

    • Order code 71337274

      O-ring 15,54x2,62 FKM,FDA, PMP23, PTP3xx

      Consisting of: 5x O-ring 15,54x2,62 FKM,FDA. Usage: PMP23, PTP33B, QMW43.

    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 52005087

      Weld-in adapter G1, 316L

      Flush mount process connection. Material: 316L. Usage: PMP23, PMP51, PMP135, PTP33B/PTP35. Correct installation only with dummy.

    • Order code 52010171

      Weld-in adapter G1, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Usage: PMP23, PMP51, PMP135, PTP33B/PTP35. Correct installation only with dummy.

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H, FTL51/FTL51B/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35, QMW43, TM401/TM411, TMR35.

    • Order code 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H, FTL51/FTL51B/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35, QMW43, TM401/TM411, TMR35.

    • Order code 52005272

      Weld-in dummy, adapter G1

      To avoid any deformation of the adapters 52005087 / 52010171 during welding. Usage: PMP51, PMP135, PTP35.

    • Order code 71041381

      Weld-in adapter M24 D65, 316L

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43.

    • Order code 71041383

      Weld-in adapter M24 D65, 316L, 3.1

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43.

    • Order code 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71086102

      O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71140668

      O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 52023994

      Process adap. M24 Clamp 1...1 1/2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023995

      Process adapter M24 Clamp 2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023996

      Process adap. M24 Variv F DN25 PN40 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023997

      Proc. adap. M24 Variv N DN40 PN40 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023998

      Process adapter M24 DIN11851 DN50, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52023999

      Process adapter M24 DIN11851 DN40, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024000

      Process adapter M24 APV-Inline, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024001

      Process adap. M24 Clamp 1 1/2, 316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024002

      Process adapter M24 Clamp 2", 316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024003

      Proc.adap.M24 Variv.F DN25 PN40 316L 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024004

      Proc.adap.M24 Variv N DN40 PN40 316L 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024005

      Process adap. M24 DIN11851 DN50,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024006

      Process adap. M24 DIN11851 DN40,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52024007

      Process adapter M24 APV-Inline,316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52026997

      Process adapter M24 SMS 1-1/2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 52026999

      Process adapter M24 SMS 1-1/2",316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Order code 71258361

      Union nut DIN11851, F40, 304

      DIN11851 DN32. Usage: FTL20H, FTL33, FTW33, PMP23, PTP33B, QMW43.

    • Order code 71477801

      Pipe assembly DN25, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Order code 71477803

      Pipe assembly DN32, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Order code 71477807

      Pipe assembly DN40, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Order code 71477808

      Pipe assembly DN50, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Order code 71477812

      Pipe assembly Clamp DN25, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Order code 71477813

      Pipe assembly Clamp DN32, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Order code 71477816

      Pipe assembly Clamp DN40, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Order code 71477817

      Pipe assembly Clamp DN50, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Order code 52010285

      M12-female plug connec., 90deg, 5m cable

      M12 plug socket, cable side. 5m cable PVC, Cu Sn/Ni lock. Usage: FMB50/FMB51/FMB52/FMB53, FTL31/FTL33, FTL51B, FTL62/FTL64, FTW23, FTW33, PMC11, PMC21, PMC51, PMP11, PMP21/PMP23, PMP51/PMP55, PTC31B, PTP31B/PTP33B, QMW43.
