Ultrasonic measurement
Time-of-Flight

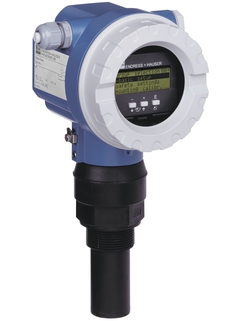

Prosonic FMU40
Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 5m
The Prosonic FMU40 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
-
Fordeler
Reliable non-contact measurement
Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable
Envelope curves on the on-site display for simple diagnosis
Hermetically sealed and potted sensor
...
-
Bruksområde
Two-wire or four-wire instrument for continuous non-contact level and flow measurement.
Process connection: Thread
Temperature: -40 to +80°C (-40 to +176°F)
Pressure: +0.7 to +3bar (+10 to +44psi)
Maximum measuring distance: Liquids 5m (16ft), Solids 2m...
Dokumenter / håndbøker / programvare
-
Prosonic M FMU40/41/42/43/44
Technical Information
Ultrasonic Level Measurement Compact transmitters for non-contact level measurement of fluids, pastes and coarse bulk materials
Technical Information (TI) -
Prosonic M FMU40/41/42/43/44
Compact transmitters for non-contact level measurements of fluids, pastes and coarse bulk materials
