Ultrasonic measurement
Time-of-Flight
Prosonic FDU91

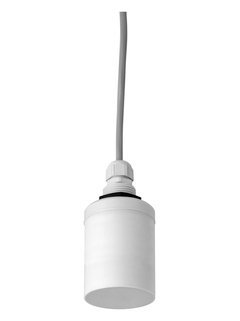

Prosonic FDU91 ©Endress+Hauser

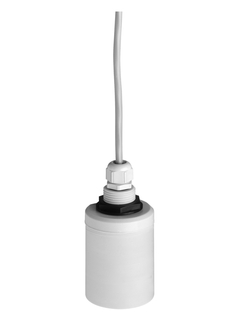

Prosonic FDU91 ©Endress+Hauser

Time-of-Flight measuring principle

  • Prosonic FDU91
  • Prosonic FDU91

Ultrasonic sensor for level and flow measurement for connection to FMU9x (measuring range
up to 10m)

The FDU91 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. But also for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in liquids 10m (33ft), solids 5m (16ft).

  • Fordeler

    • Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present

    • Hermetically welded PVDF sensor for highest chemical resistance

    • Suited for rough ambient conditions thanks to separate...

  • Bruksområde

    Sensor for continuous, non-contact level measurement of fluids and of bulk materials in silos, on belts, stockpiles and in crushers. Also for flow measurement in open channels and at weirs. Typically used in measurements in low structural heights.

    • ...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Ultrasonic

  • Characteristic / Application

    Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300m in-between sensor and transmitter

  • Supply / Communication

    4-wire (HART, Profibus DP)

  • Accuracy

    +/- 2mm + 0.17% of measured distance

  • Ambient temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process pressure absolute / max. overpressure limit

    0.7 bar ... 4 bar abs
    (10 psi ... 58 psi)

  • Main wetted parts

    PVDF (fully welded IP68 / NEMA6P)

  • Process connection

    G / NPT 1"

  • Blocking distance

    0.3 m (1 ft)

  • Application

  • Max. measurement distance

    10 m (33 ft)

  • Communication

    Transmitter:
    4 ... 20 mA HART
    Profibus DP

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, TIIS, INMETRO, NEPSI

  • Options

    Second 4...20mA output

  • Components

    Transmitter:
    FMU90, FMU95

  • Application limits

    Foam / high turbulence possible:

    FDU92

    Flange-flush assembly:

    FDU91F

    For tank farms scanner:

    FMU95

  • Measuring principle

    Ultrasonic

  • Characteristic / Application

    Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300m in-between sensor and transmitter

  • Supply / Communication

    4-wire (HART , Profibus DP)

  • Accuracy

    +/- 2mm + 0.17% of measured distance

  • Ambient temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process pressure absolute / max. overpressure limit

    0.7 bar ... 4 bar abs
    (10 psi ... 58 psi)

  • Main wetted parts

    PVDF (fully welded IP68 / NEMA 6P)

  • Process connection

    G / NPT 1"

  • Blocking distance

    0.3 m (1 ft)

  • Max. measurement distance

    5 m (16ft)

  • Communication

    Transmitter:
    4 ... 20 mA HART
    Profibus DP

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, TIIS, INMETRO, NEPSI

  • Options

    Second 4...20mA output

  • Components

    Transmitter:
    FMU90

  • Measuring principle

    Ultrasonic

  • Product headline

    Version with separate transmitter in field housing or top hat rail housing
    Cost effective solution for open channel flow measurement in water / wastewater plants

  • Max. measurement error

    accuracy:
    distance measurement: +/- 2mm + 0.17%
    resolution:
    distance measurement: 1mm

  • Measuring range

    max measuring distance up to 10m / 32ft

  • Max. process pressure

    atm.

  • Medium temperature range

    -40...80°C
    (-40...176°F)

  • Degree of protection

    IP68

  • Display/Operation

    Transmitter

  • Outputs

    Transmitter:
    4...20mA HART
    Option: second 4...20mA output

  • Inputs

    Transmitter

  • Digital communication

    HART, PROFIBUS DP

  • Hazardous area approvals

    ATEX, IECEx, FM, CSA
