Radar measurement
Time-of-Flight

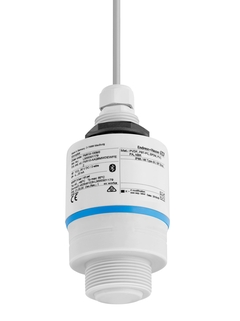

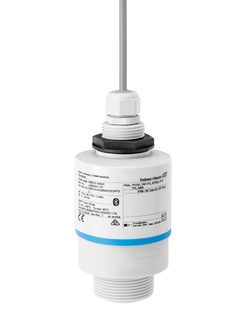

Micropilot FMR10

Micropilot FMR10 ©Endress+Hauser
Micropilot FMR10 ©Endress+Hauser
Micropilot FMR10 ©Endress+Hauser
Micropilot FMR10 ©Endress+Hauser

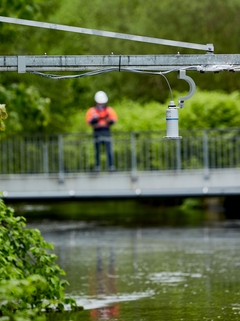

Level measurement in liquids for water & wastewater and utilities in all industries

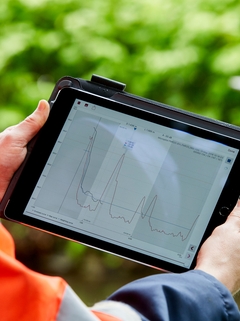

Micropilot FMR10 offers continuous non-contact level measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. FMR10 belongs to the first radars with Bluetooth® commissioning, operation and maintenance app. Signal curves can be shown via app on every Bluetooth®-enabled smartphone or tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.

  • Enkle produkter

  • Enkelt å velge, intallere og bruke

Tekniske egenskaper

Enkelhet

  • Standardprodukter

  • Pålitelige, robuste og lette å vedlikeholde

Tekniske egenskaper

Enkelhet

  • High- end produkter

  • Høyst funksjonelle og praktiske

Tekniske egenskaper

Enkelhet

  • Spesialprodukter

  • Designet for krevende applikasjoner

Tekniske egenskaper

Enkelhet

Varierende

FLEX utvalget Tekniske egenskaper Enkelhet
  • F
  • L
  • E
  • X

Fundamental utvalg

Møter dine grunleggende målebehov

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Lean utvalg

Håndter henkelt dine kjerneprosesser

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Extended utvalg

Optimaliser prosessene dine med innovative teknologier

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Xpert utvalg

Mestre de mest utfordrende applikasjonene dine

Tekniske egenskaper
Enkelhet

Varierende

  • Spesifikasjonene kort oppsummert

    • Accuracy

      +/- 5 mm (0,2")

    • Process temperature

      -40…+60°C
      (-40…+140°F)

    • Process pressure absolute / max. overpressure limit

      -1…3 bar (-14,50…43 psi)

    • Max. measurement distance

      Standard: 8 m (26.2 ft)
      With flooding protection tube: 12 m (39.4 ft)

    • Main wetted parts

      PVDF, PBT

please wait Loading alternative products

Hurtigvalg

Velg ett av våre foreslåtte alternative
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer
  • Fordeler

    • Non-contact radar with Bluetooth® commissioning, operation and maintenance app

    • Most compact radar due to unique radar chip design offering perfect fit in limited space applications

    • Best price-performance-ratio radar

    • Perfect application fit for water &...

  • Bruksområde

    Radar for continuous level measurement in liquids. For use in storage tanks, open basins, pump/lift stations or sewer management.

    • Process connections: Threads

    • Process temperature: -40 to +60°C (-40 to +140°F)

    • Process pressure: -1 to +3bar (-14.5 to +...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Level radar

  • Characteristic / Application

    Simple applications in Water & Wastewater

    Utility applications in all industries

    Easy storage tanks

  • Specialities

    Bluetooth® commissioning,

    Operation and maintenance via SmartBlue App

  • Supply / Communication

    2-wire (4…20 mA)

    Bluetooth® wireless technology and App

  • Frequency

    K-band (~26 GHz)

  • Accuracy

    +/- 5 mm (0,2")

  • Process temperature

    -40…+60°C

    (-40…+140°F)

  • Process pressure absolute / max. overpressure limit

    -1…3 bar (-14,50…43 psi)

  • Main wetted parts

    PVDF, PBT

  • Process connection

    Thread:

    G1", NPT1"; G1 1/2", NPT1 1/2"

  • Max. measurement distance

    Standard: 8 m (26.2 ft)

    With flooding protection tube: 12 m (39.4 ft)

  • Communication

    Bluetooth® wireless technology

  • Certificates / Approvals

    CSA C/US

  • Options

    Flooding protection tube

    Different mounting possibilities

  • Application limits

    DK < 4:

    FMR5x;

    Turbulent surfaces:

    FMR5x;

    Ammoniacal gas phase:

    FMR54 in stilling well;

    Strong build-up formation:

    FMR54 with air purge;
    Only PTFE resistant:

    FMR52;

    Custody transfer measurement:

    FMR5xx or NMR8x

Dokumenter / håndbøker / programvare

Tilbehør / reservedeler

Nr
Order code
Specification
    • Order code

      Unit is not repairable.

    • Order code 71325079

      Mounting bracket adjustable, 316L

      Usage: FDU90, FMR10, FMR20.

    • Order code 71325090

      Flood.protect.tube DN40/G1 1/2" FMR10/20

      Material: metallized PBT-PC. Suitable for 40mm/1-1/2" antenna with G1-1/2 front side connection. Usage: FMR10, FMR20.

    • Order code 71452315

      Sensor support 500mm, 316L

      Mounting Prosonic S, Mircopilot. Material: 316L. Usage: FDU90/FDU91/FDU91F/FDU92/FDU93/FDU95, FMR10, FMR20.

    • Order code 71452316

      Sensor support 1000mm, 316L, US-sensor

      Mounting Prosonic S, Mircopilot. Material: 316L. Usage: FDU90/FDU91/FDU91F/FDU92/FDU93/FDU95, FMR10, FMR20.
