Capacitance
Point level switch

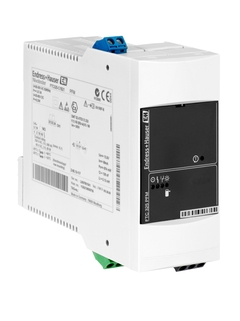

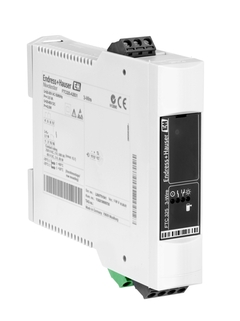

Nivotester FTC325

Point level switch with intrinsically safe signal circuit for connection to a capacitance sensor

The Nivotester FTC325 is a point level switch with intrinsically safe signal circuit for connection to a capacitance sensor. It has a compact housing for easy series mounting on a standard DIN rail in the cabinet.

Dimensjonering
Prissetting etter innlogging og konfigurasjon

Sammenligne

Hurtigvalg

Velg ett av våre foreslåtte alternative

<%label%>
-- selected coding

-- selected label
<%label%>
Leter du etter flere alternativer? Bruk det individuelle konfigurasjonsverktøyet for å fortsette.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Leter du etter flere alternativer? Bruk det individuelle konfigurasjonsverktøyet for å fortsette.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Valgfritt tilbehør

Bruk det individuelle konfigurasjonsverktøyet for å fortsette.

eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer

Konfigurere

Fordeler
Highest safety due to intrinsically safe signal circuit EEx ia IIC
Calibration using operating keys
High functional safety thanks to: FailSafe pulse-frequency modulation (PFM) or 3-wire technology, checkable relay function
Compact housing for easy series...

Vis mer
Highest safety due to intrinsically safe signal circuit EEx ia IIC
Calibration using operating keys
High functional safety thanks to: FailSafe pulse-frequency modulation (PFM) or 3-wire technology, checkable relay function
Compact housing for easy series mounting on a standard DIN rail in the cabinet
Pluggable terminal blocks make wiring easy
Point level and alarm relay

Vis mindre

Bruksområde
For point level detection in tanks containing liquids and silos containing bulk solids. Also for capacitance level probes, which may be applied in hazardous areas of category ATEX II (1) GD. Overfill prevention for tanks containing flammable or non-...

Vis mer
For point level detection in tanks containing liquids and silos containing bulk solids. Also for capacitance level probes, which may be applied in hazardous areas of category ATEX II (1) GD. Overfill prevention for tanks containing flammable or non-flammable fluids hazardous to water and dry running protection for pumps.

Two-point control (Δs with 3-WIRE)

Ambient temperature: -20 to +50°C (-4 to +122°F)

International explosion protection certificates, overfill prevention WHG

Vis mindre

Funksjoner og spesifikasjoner

Tilbake

Details

Measuring principle

Capacitive Solid
Characteristic / Application

Transmitter with intrinsically safe signal
Calibrating using operating keys
adjustable operating delay
2-wire PFM
3-wire
Rail mounting:
Wide: 45mm (PFM
)Wide: 22,5 mm
With adjustable hysteresis
Specialities

Min / Max - changeover
Test/correction key (PFM)
Supply / Communication

85V ... 253V AC
20V ... 60V DC
Ambient temperature

-20 °C ... 50 °C Serial montage
(-4 °F ... 122 °F)
Communication

2 Relays
Certificates / Approvals

ATEX, FM, CSA, TIIS, INMETRO
Safety approvals

Overfill prevention WHG

Vis mer
Vis mindre

Measuring principle

Capacitive Liquid
Characteristic / Application

Transmitter with intrinsically safe signal
Calibrating using operating keys
adjustable operating delay
2-wire PFM
3-wire
Rail mounting:
Wide: 45mm (PFM
)Wide: 22,5 mm
With adjustable hysteresis
Specialities

Min / Max - changeover
Test/correction key (PFM)
Supply / Communication

85V ... 253V AC
20V ... 60V DC
Ambient temperature

Serial montage
-20 °C ... 50 °C
(-4 °F ... 122 °F)
Communication

2 Relays
Certificates / Approvals

ATEX, FM, CSA, TIIS, INMETRO
Safety approvals

Overfill prevention WHG

Vis mer
Vis mindre

Dokumenter / håndbøker / programvare

Nedlastningstype

Filter

Nivotester FTC325
Capacitance

Technical Information (TI)
Nivotester FTC325 PFM Operating Instructions
Point level switch with intrinsically safe signal circuit for connection
to capacitance
sensors

Short Instruction (KA)

08/18

Tysk , Engelsk , Spansk , fr , Italiensk , Nederlandsk
Nivotester FTC 325 3-WIRE Operating Instructions
Point level switch with intrinsically safe signal circuit for connection
to capacitance
sensors

Short Instruction (KA)

08/18

Tysk , Engelsk , Spansk , fr , Italiensk , Nederlandsk
Nivotester FTC325 EAC: [Ex ia Ga] IIC [Ex ia Ga] IIB Safety Instructions
Capacitive Level Measurement

Ex Safety Instructions (XA)
Safety Instructions Nivotester FTC625, FTC325
[Ex ia Ga] IIC/IIB
TÜV 13.0903 X (INMETRO)

Ex Safety Instructions (XA)
Safety Instructions Nivotester FTC625, FTC325 PFM
II (1) G [Ex ia Ga] IIC
II (1) D [Ex ia Da] IIIC
DMT 02 ATEX E 232

Ex Safety Instructions (XA)
Nivotester FTC625, FTC325 PFM
CSA

Drawing No.: 960530-0071 B

Drawing Type: Installation Drawing

Certificate FM/CSA (ZD)
Nivotester FTC625, FTC325 PFM
FM

Drawing No.: 960530-0070 A

Drawing Type: Control Drawing

Certificate FM/CSA (ZD)
Nivoster FTC325
Safety level limit switch, microprocessor-controlled, as plotter for
capacitive limit detection

Tender Text

09/06

us
Nivotester FTC325
Sicherheits- Füllstandgrenzschalter mikroprozessorgesteuert, als
Auswertegerät zur
kapazitiven Grenzstanderfassung

Tender Text

06/16

Tysk
Overfill prevention / WHG / Calculation Tool Überfüllsicherung / WHG / Berechnungstool Windows 10 - Update >> Fixed view for prints / Ausdruck
Liquiphant FTL31/33; FTL50/50H/51/51C/51H; FTL70/71; FTL80/81/85
Nivotester FTC325, FTL325N/325P; FTW375W
Minicap FTC260/262
Liquicap FMI21; FMI51/52; FTI51/52
Liquipoint FTE31/33L

Configuration Software

Language neutral
Nivotester
Produkt kode: FTC325-
erklæring nummer: HE_00587_01.17
Produsent Spesifikasjon: RoHS

Manufacturer Declaration

Kinesisk
Nivotester
Produkt kode: FTC325-

EU Declaration

Tysk , Engelsk , fr
Nivotester
Produkt kode: FTC325-, FTC625-

EU Declaration

Tysk , Engelsk , fr
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Floating Switch
Produkt kode: FTL260-, FTL31-, FTL325N-, FTL325P-, FTL33-, FTL375P-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTS20-, FTW31-, FTW32-, FTW325-, FTW360-, NMR81-, NMR84-, FTI52-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-, FTI51-
Region: Russia (Declaration of Conformity), Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: RU D-DE.MO10.B.05528

Miscellaneous

Russisk
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquipoint, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Floating Switch, Einstabsonde, Dreistabsonde, Doppelstabsonde
Produkt kode: FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL33-, FTL325P-, FTL325N-, FTL31-, FTL260-, FTI52-, FTI51-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTS20-, FTW23-, FTW31-, FTW32-, FTW325-, FTW33-, FTW360-, NMR81-, NMR84-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-
Region: Russia (Declaration of Conformity), Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: RU D-DE.MO10.B.05531

Miscellaneous

Russisk
Liquiphant, Liquiphant FailSafe, Liquiphant M, Liquiphant S, Liquiphant T, Nivotester, Nivotester FailSafe
Produkt kode: FTL85-, FTL825-, FTL81-, FTL80-, FTL71-, FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL330L-, FTL330H-, FTL33-, FTL325P-, FTL325N-, FTL31-, FTL260-, FTL20H-, FTL20-, FTC325-
Region: Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: TC № RU D-DE.AL32.B.07215

Miscellaneous

Russisk
Nivotester, Liquipoint, Nivotester FailSafe
Produkt kode: FTC325-, FTL325N-, FTL325P-, FTL375P-, FTW325-, FTL825-
Region: Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: TС RU D-DE.MU62.B.02537

Miscellaneous

Russisk
Nivotester
Produkt kode: FTC325-, FTL325N-, FTL325P-, FTW325-
Region: Russia (TR CU)
Godkjenningsinstitusjon: EAC
Godkjenningsnummer: TC BY_112 11.01. TP004 003 137

Miscellaneous

Russisk
Nivotester
Produkt kode: FTC325-, FTC625-
Region: Brazil
Godkjenningsinstitusjon: INMETRO

Explosion Protection

Portugisisk
Nivotester
Produkt kode: FTC325-, FTC625-
Region: Canada, USA
Godkjenningsinstitusjon: CSA
Kategori: I,II,III/1/A,B,C,D,E,F,G
Beskyttelse: AIS

Explosion Protection

Engelsk
Nivotester
Produkt kode: FTC325-
Region: Japan
Godkjenningsinstitusjon: TIIS
Beskyttelse: [Ex ia] IIC

Explosion Protection

Japansk
Nivotester
Produkt kode: FTC325-, FTC625-
Region: Europe (ATEX)
Godkjenningsinstitusjon: EXAM (DMT, BVS)
Kategori: II (1) D, II (1) G
Beskyttelse: [Ex ia Da] IIIC, [Ex ia Ga] IIC

Explosion Protection

Tysk , Engelsk
Einstabsonde, Elektronikeinsatz, Multicap T, Nivotester, Seilsonde, Silometer, Accessory
Produkt kode: DC26TES-, EC37Z-, EC47Z-, FEC12-, FMC47Z-, FMC671Z-, FMC672Z-, FMX570Z-, FMX770-, FTC325-, FTC625-, HMC37Z-, HMC47Z-, HTC10E-, SIF100-, SIF110-, 11561Z-, 21561Z-, DC..11500Z-, DC11ES-, DC11TEN-, DC11TES-, DC12TE-, DC16ES-, DC16TEN-, DC16TES-, DC21ES-, DC21TEN-, DC21TES-, DC26ES-, DC26TEN-
Region: Germany
Godkjenningsinstitusjon: DIBt
Godkjenningsnummer: DIBTZ-65-13-117

Overfill Prevention

Tysk
