Point level detection
Compact vibration point level switch for liquids in all industries

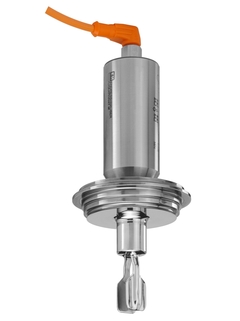

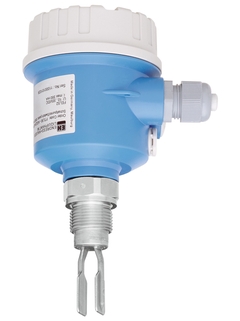

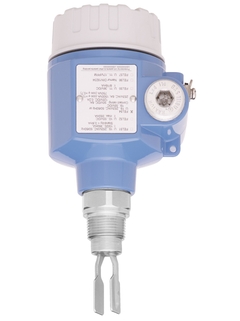

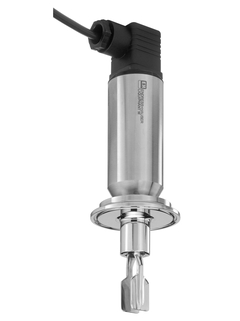

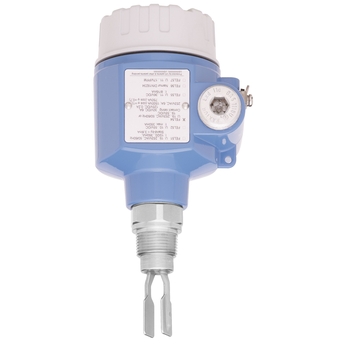

Liquiphant FTL50 is a point level switch for use in hazardous areas with all international certificates. Useable in all industries. FTL50 offers functional safety SIL2/SIL3. With the second line of defense the highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
IEC 61508/IEC 61511-1
International explosion protection certificates and overfill prevention certificate (WHG)
No calibration required, easy to start up
No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed function
Second line of defense to protect the environmental
Variety of standardized process connections for all applications
Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)
Point level switch for all liquids.
Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
Temperature: -50 to +150°C (-58 to +302°F)
Pressure: -1 to +64bar (-14.5 to +928psi)
Sensor material: 316L, Alloy
International explosion protection certificates, overfill prevention WHG, SIL, marine approvals
Funksjoner og spesifikasjoner
Forgjenger / Erstatter
Forgjenger: CS1103, CS1113, CS1203, CS1213, CS1603, CS1613, T6256
Density measurement of liquids with Density Computer FML621
Measurement of density, reference density, concentration of liquids in conjunction with a Liquiphant. Also for use in hazardous areas with international explosion protection certificates.
