Levelflex FMP51 - Guided radar

Guided radar measurement
Time-of-Flight

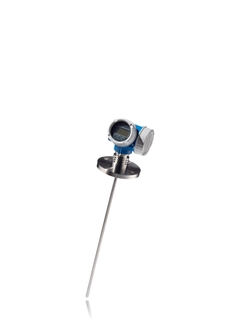

Levelflex FMP51

The standard sensor for highest demands in liquid level measurement

FMP51
please wait
Laster inn pris
Pris midlertidig utilgjengelig
from CHF 803.-

Spesifikasjonene kort oppsummert

  • Accuracy

    Rod probe :+/- 2 mm (0.08 in)
    Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in)
    Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in)
    Coaxial probe: +/- 2 mm (0.08 in)

  • Process temperature

    -50...+200 °C
    (-58...+392 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...40 bar
    (Vacuum...580 psi)

  • Max. measurement distance

    Rod: 10 m (33 ft) Min DK>1.6
    Rope: 25 m...30 m (82ft...98 ft) Min DK>1.6;
    30m...45 m (98ft...148 ft) Min DK>1,9
    Coaxial probe: 6 m (20 ft) Min DK>1.4

  • Main wetted parts

    Rod probe:
    316L, Alloy C, Ceramic
    Rope probe:
    316, 316L, Alloy C, Ceramic
    Coaxial probe:
    316L, Alloy C, Ceramic, PFA

Bruksområde

Levelflex FMP51 for level measurement even under extreme process conditions like
high temperature and high pressure in the process industry. FMP51 offers maximum reliability even in case of moved surface and foam or when numerous tank baffles interfere with the measurement. Levelflex FMP51 is used for continuous level measurement of liquids, pastes and slurries but also for interface measurement. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

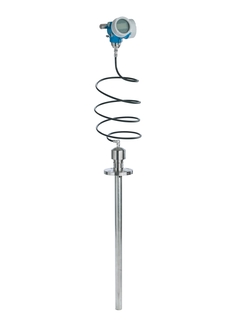

Version with rod, rope or coax probe.

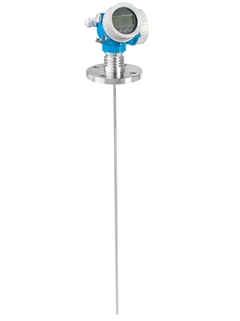

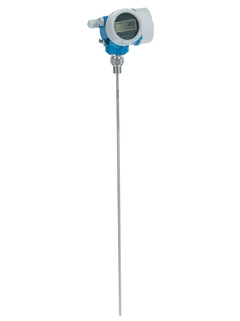

  • Process connections: Threads or flange

  • Temperature: -50 to +200°C (-58 to +392°F)

  • Pressure: -1 to +40bar (-14.5 to +580psi)

  • Maximum measuring range: Rod 10m (33ft), rope 45m (148ft), coax 6m (20ft)

  • Accuracy: ±2mm (0.08")

  • International explosion protection certificates, overfill prevention WHG, SIL, marine approval, 5-point linearity protocol

Fordeler

  • Reliable measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3

  • Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

  • Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

  • World's easiest proof test for SIL and WHG saves time and costs
