CUS52D is a smart inline/immersion turbidity sensor for all water production measuring points.

Turbidity sensor
Turbimax CUS52D

Hygienic Memosens sensor for turbidity measurement in drinking water, process water and utilities

CUS52D
Laster inn pris
Pris midlertidig utilgjengelig
Price on request
aktiverer pris
pris: gi informasjon
from CHF ??.-

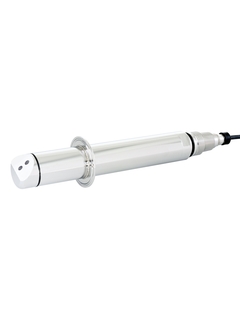

Turbimax CUS52D stainless steel version with clamp connection for direct mounting into pipes.
  • F
  • L
  • E
  • X
©Endress+Hauser

The hygienic Turbimax CUS52D version with stainless steel housing and clamp connection can be mounted directly into pipelines - ideal for drinking water applications.

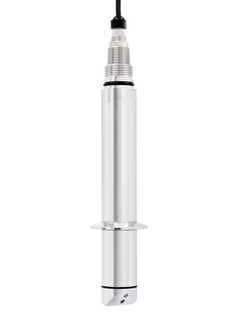

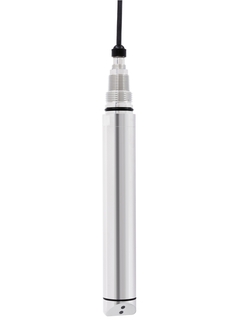

The Turbimax CUS52D immersion version with stainless steel housing for process water and utilities.
  • F
  • L
  • E
  • X
©Endress+Hauser

The Turbimax CUS52D immersion version with stainless steel housing is ideally suited for process water and utilities.

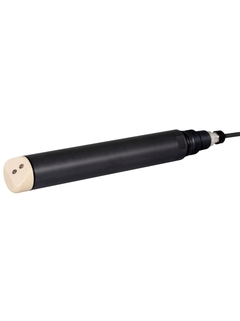

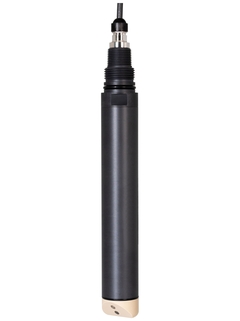

The Turbimax CUS52D immersion version with plastic housing for applications with high salinity.
  • F
  • L
  • E
  • X
©Endress+Hauser

The Turbimax CUS52D immersion version with plastic housing has been developed for desalination plants and all other applications with saline media.

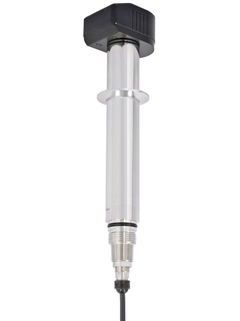

Easy and safe sensor verification: Turbimax CUS52D with CUY52 solid state reference.
  • F
  • L
  • E
  • X
©Endress+Hauser

Easy and safe sensor verification: Turbimax CUS52D with CUY52 solid state reference.

Turbimax CUS52D offers turbidity measurement according to ISO 7027.
  • F
  • L
  • E
  • X
©Endress+Hauser

Turbimax CUS52D offers turbidity measurement according to ISO 7027.

With the Turbimax CUS52D sensor you can measure turbidity with laboratory accuracy.
  • F
  • L
  • E
  • X
©Endress+Hauser

With the Turbimax CUS52D sensor you can measure turbidity with laboratory accuracy.

The sensor offers reliable turbidity measured values combined with high material resistance.
  • F
  • L
  • E
  • X
©Endress+Hauser

The sensor offers reliable turbidity measured values combined with high material resistance.

The hygienic Turbimax CUS52D version with stainless steel housing and clamp connection can be mounted directly into pipelines - ideal for drinking water applications.

Spesifikasjonene kort oppsummert

  • Measurement range

    0.000 to 4000 FNU

  • Process temperature

    Stainless steel version: -20 to 85 °C (0 to 185 °F)
    Plastic version: -20 to 60°C (-4 to 140 °F)

  • Process pressure

    Stainles steel version: 0.5 to 10 bar abs
    (7.3 to 145 psi abs)
    Plastic version: 0.5 to 6 bar abs
    (7.3 to 87 psi abs)

Bruksområde

Turbimax CUS52D is a smart sensor with lab accuracy that allows unattended operation of all turbidity measuring points in drinking water production and many other applications with fresh, process or salt water. You can mount it directly into your pipeline, thus saving costly bypass installations and avoiding product losses. Thanks to Memosens digital technology, the Turbimax CUS52D offers maximum process and data integrity, simple operation and allows predictive maintenance.

Turbimax CUS52D measures turbidity in:

  • Drinking and process water:
    - From inlet to outlet in water plants
    - Raw water abstraction and control
    - Distribution networks
    - All quality control points in water production

  • Saline water:
    - Desalination plants
    - Marine applications (e.g. monitoring of exhaust gas cleaning on ships)

  • Wastewater treatment plants:
    - Reuse of outlet water (e.g. 4th cleaning step)

  • Utilities in all industries:
    - From inlet to outlet in water production
    - Distribution networks

Fordeler

  • Measuring results like in the lab: Highly accurate and reliable monitoring of your water quality – even at the lowest turbidity.

  • Turbidity measurement without product loss: Hygienic inline measurement preserves each drop of water in the process.

  • Unattended operation: Intelligent design and practical accessories enable sophisticated self-cleaning capabilities and minimize maintenance.

  • Smart verification and calibration: Absolutely safe, liquid-free, without Formazin.

  • Great flexibility, simple handling: One sensor for all measuring points and all installation environments (inline or immersion).

  • Improved process control: Individually adaptable sensor response time.

  • Fast commissioning: Factory calibration and Memosens technology allow plug & play integration into your process.

Videoer

  • Turbidity is the cloudiness of a liquid caused by suspended particles. This video shows how turbidity measuring principles work.
