TH55
Modular TC thermometer, US style

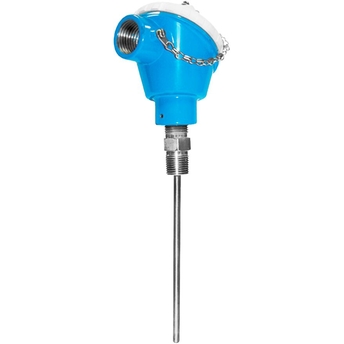

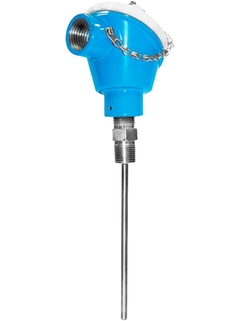

TH55 Modular TC thermometer, US style ©Endress+Hauser

Comprehensive and common temperature measurement technology for almost all branches of industry

The high modular thermometer is used for several applications with harsh environments, e.g. in power plants, refineries or in the chemical or petrochemical industry. The robust device is designed for use within an existing thermowell. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability.

Dette produktet er ikke tilgjengelig for dette markedet

Hurtigvalg

Velg ett av våre foreslåtte alternative
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

TH55
Vis detaljer Skjul detaljer
Vis detaljer
Tilbake til Hurtigvalg
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Valgfritt tilbehør
Bruk det individuelle konfigurasjonsverktøyet for å fortsette.
eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer

  • Fordeler

    • One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications.

    • Remove and install straight out of the box!

    • Improved galvanic isolation on most devices (2 kV).

    • ...

  • Bruksområde

    The TH55 temperature sensors are thermocouple assemblies, designed for use in all types of process industries, including heavy industries, due to their rugged design. They are made up of a magnesium oxide insulated thermocouple as a measurement probe...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Thermocouple

  • Characteristic / Application

    TA20J - SS - w. or w/o. display

    TMT142 - aluminium - fieldhousing w. or w/o. display

    TMT162 - aluminium - fieldhousing w. or w/o. display

    TMT162 - SS - fieldhousing w. or w/o. display

    Alu - screwed cover w. chain - E+H blue

    PP plastic - screwed cover w. chain

    TA30H - aluminum w. or w/o. display

  • Terminal head

    TA20J - SS - deep-drawn w. or w/o. display

    TMT162 - aluminium - fieldhousing w. or w/o. display

    TMT142 - aluminium - fieldhousing w. or w/o. display

    TU401 - Alu - screwed cover w. chain

    Alu - fliptop

    TMT162 - SS casting - Fieldhousing w. or w/o. display

  • Thermowell / protection tube

    to use with thermowell

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    1/4'' (6,35 mm)

  • Max. immersion length on request

    up to 30" (762 mm)

    others on request

  • Material protection tube/ thermowell

    Sensor sheath

    316

    Alloy 600

  • Optional coating

    not applicable

  • Process connection

    Thermowell connection

    male thread:

    NPT1/2"

  • Tip shape

    straight

  • Surface roughness Ra

    Not defined

  • Operating temperature range

    Type T:

    -270 °C ...370 °C

    (-454 °F ...698 °F)

    Type J:

    -210 °C ...720 °C

    (-346 °F ...1.328 °F)

    Type E:

    -270 °C ...820 °C

    (-454 °F ...1.508 °F)

    Type K:

    -270 °C ...1.150 °C

    (-454 °F ...2.102 °F)

    Type N:

    -270 °C ... 1.150 °C

    (-454 °F ...2.102 °F)

  • Max. process pressure (static)

    at 20 °C: 100 bar (1.450 psi)

  • Accuracy

    class 1 acc. to IEC 60584

    class 2 acc. to IEC 60584

  • Response time

    63% rt = 1,3 s

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    transmitter only

    FM IS

    CSA IS

    FM/CSA IS

  • Certification

    SIL (transmitter only)

Dokumenter / håndbøker / programvare

Tilbehør / reservedeler

Nr
Order code
Specification
    • Order code 52028179

      Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces

      Profile gasket cover. Usage: housing F15 stainless steel.

    • Order code 60017971

      Display LC for TA20J

    • Order code 71043745

      Housing filter plastic F15, 3 pieces

      Consists of: filter plug plastic, Pressure compensation filter, O-ring. Usage: housing F15. Non Ex.

  • F
  • A
    • Nr A Order code TU121-

      TC-Insert TU121, Gen.Purp. U.S.Style

      Spare part. Thermocouple Insert spring loaded. Thermocouple comply with EMF tables of ASTM E-230 and IEC60584. Color codes per ASTM E-230.

  • F
  • F
    • Nr F Order code TA30H-

      Terminal Head TA30H

      Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).

  • A
    • Nr A Order code TA30R-

      Terminal Head TA30R

      Retainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: Stainless Steel 316L. Colour: Steel (no coating). Ambient Temp.: -50...85/130 oC (display/standard). Protection: IP66/68, NEMA4X; IP69K (housing). :: easy wiring through best accessibility. :: compact desing and low weight.

  • F
  • F
    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Order code READWIN-

      Readwin 2000 Operation + Read. software

    • Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

    • Order code TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Order code TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Order code TID10-

      Display for head transmitter TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.

    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
