iTEMP TMT82 HART® 7 temperature transmitter

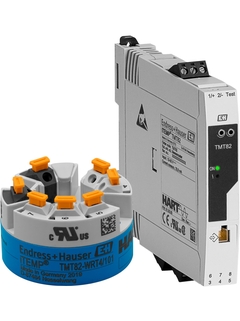

iTEMP TMT82 HART® 7 temperature transmitter in DIN rail and terminal head form ©Endress+Hauser

iTEMP TMT82 HART® temperature transmitter in terminal head form B as per DIN EN 50446 with push-in terminals,
DIN rail housing variant

Product picture iTEMP TMT82 Temperature transmitter ©Endress+Hauser

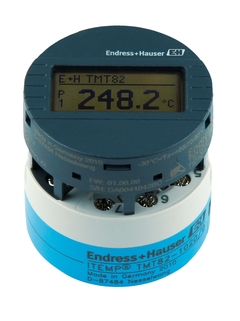

Display TID10 to plug on

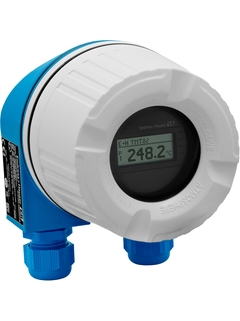

iTEMP TMT82 dual compartment field housing with integrated display ©Endress+Hauser

iTEMP TMT82 in field mount housing with separate terminal
compartment and integrated display for use in hazardous areas

iTEMP TMT82 Temperature transmitter ©Endress+Hauser

Installed in field housing TA30H for use in Ex d applications

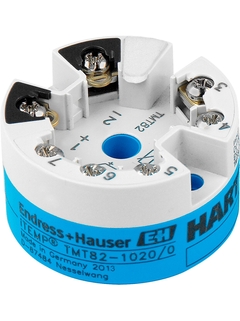

iTEMP TMT82 temperature transmitter with screw terminals ©Endress+Hauser

iTEMP TMT82 temperature transmitter in terminal head form B as per DIN EN 50446, with screw terminals

Dual channel, SIL compliant temperature transmitter for use in hazardous areas

The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.

  • Enkle produkter

  • Enkelt å velge, intallere og bruke

Tekniske egenskaper

Enkelhet

  • Standardprodukter

  • Pålitelige, robuste og lette å vedlikeholde

Tekniske egenskaper

Enkelhet

  • High- end produkter

  • Høyst funksjonelle og praktiske

Tekniske egenskaper

Enkelhet

  • Spesialprodukter

  • Designet for krevende applikasjoner

Tekniske egenskaper

Enkelhet

Varierende

FLEX utvalget Tekniske egenskaper Enkelhet
  • F
  • L
  • E
  • X

Fundamental utvalg

Møter dine grunleggende målebehov

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Lean utvalg

Håndter henkelt dine kjerneprosesser

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Extended utvalg

Optimaliser prosessene dine med innovative teknologier

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Xpert utvalg

Mestre de mest utfordrende applikasjonene dine

Tekniske egenskaper
Enkelhet

Varierende

  • Spesifikasjonene kort oppsummert

    • Accuracy

      (Pt100) <= 0,1K (digital) + 0,03% (set range)

please wait Loading alternative products

Hurtigvalg

Velg ett av våre foreslåtte alternative
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer
  • Fordeler

    • Robust temperature transmitter delivering precise, long-term stable measurements for high plant availability

    • SIL certification up to SIL2, SC3 according to IEC 61508:2010

    • Versatile mounting and housing options:
      terminal head form B, DIN rail, field...

  • Bruksområde

    • Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL

    • 2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol

    • Suited for use in marine...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Head transmitter

  • Input

    2 x RTD, TC

  • Output

    1 x analog 4...20 mA / HART

  • Auxiliary power supply

    11...42 V DC

  • Communication

    HART-protocol

  • Installation

    Terminal head form B, DIN-Rail housing or field mount housing

  • Accuracy

    (Pt100) <= 0,1K (digital) + 0,03% (set range)

  • Galvanic isolation

    yes

  • Certification

    Non-hazardous area

    ATEX

    CSA

    FM

    EAC

    IECEx

    NEPSI

    FM+CSA
