Spesifikasjonene kort oppsummert
Max. process pressure (static)
Depending on configuration up to 100 bar
Maximum standard immersion length
Max. immersion length on request
Bruksområde
This thermowell designed according to DIN 43772 guarantees a high resistance to most industrial process environments. It is made from pipe or tube and is available in a wide range of diameters and materials. A specially designed thermowell tip ensures fast response times for a more efficient process control. Oversheaths in PTFE or tantalum can withstand extremely corrosive process conditions. It is offered with a variety of process connections: flanges, threads, weld-in or compression fittings.
Protects the temperature sensor against physical and chemical stress
High robustness for challenging process conditions
Pressure range: up to 100 bar (1450 psi)
For use in pipes, containers or tanks
Improved ease of maintenance (sensor replacement without process shutdown) and recalibration of the measuring point
Fordeler
Modular configuration according to DIN 43772
iTHERM QuickNeck: cost and time savings thanks to simple, tool-free recalibration of the insert
Extension, immersion length and total length can be chosen according to process requirements
Wide choice of dimensions, materials and process connections available
Specially designed tip for fast response times
Fundamental utvalg
Enkle produkter
Enkelt å velge, intallere og bruke
Tekniske egenskaper
Enkelhet
©Endress+Hauser
Enkle produkter
Enkelt å velge, intallere og bruke
Tekniske egenskaper
Enkelhet
Standardprodukter
Pålitelige, robuste og lette å vedlikeholde
Tekniske egenskaper
Enkelhet
High- end produkter
Høyst funksjonelle og praktiske
Tekniske egenskaper
Enkelhet
Spesialprodukter
Designet for krevende applikasjoner
Tekniske egenskaper
Enkelhet
FLEX utvalget
Tekniske egenskaper
Enkelhet
Fundamental utvalg
Møter dine grunleggende målebehov
Tekniske egenskaper
Enkelhet
Lean utvalg
Håndter henkelt dine kjerneprosesser
Tekniske egenskaper
Enkelhet
Extended utvalg
Optimaliser prosessene dine med innovative teknologier
Tekniske egenskaper
Enkelhet
Xpert utvalg
Mestre de mest utfordrende applikasjonene dine
Tekniske egenskaper
Enkelhet
Loading alternative products
Characteristic / Application

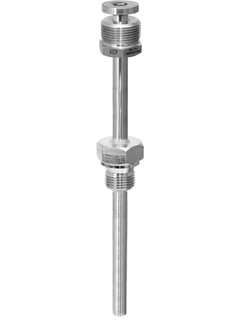

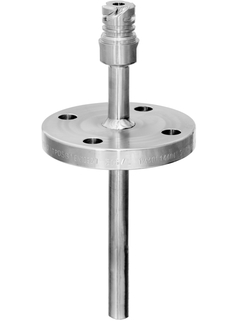

metric style according to DIN 43772 process connection threaded, flanged, compression fitting with neck
Head connection

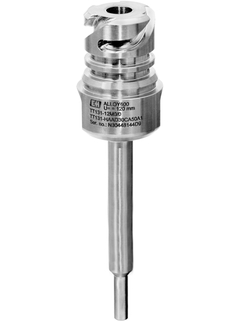

external thread: M24 x 1.5, 1/2" NPT, G1/2 Female thread: M20 x 1.5, 1/2" NPT, G1/2 QuickNeck
Maximum standard immersion length
Max. immersion length on request
Process connection
Thread: G3/8", G1/2", G3/4", G1" NPT1/2", NPT3/4", NPT 1" M18x1.5, M20x1.5, M27x2, M33x2 R1/2", R3/4" Cap-nut: M20x1.5, G1/2", G3/4" Compression fitting: NPT1/2", G1/2", G1" Flansche: DN15 PN40 B1, C DN25 PN20, PN40, PN100 B1, B2, C DN40 PN40 B1 DN50 PN40 B1 ASME 1" 150 RF ASME 1" 300 RF ASME 1 1/2" 150 RF ASME 2" 150 RF ASME 2" 300 RF
Thermowell root diameter
9x1,25 mm 11x2 mm 12x2,5 mm 14x2 mm 16x3,5 mm 1/4" SCH80 1/2" SCH80 1/2" SCH40
Medium contact material
316 (1.4401) 316L (1.4404) 316Ti (1.4571) Alloy 600 (2.4816) Alloy C276 (2.4819) Alloy 446 (1.4749) Alloy 321 (1.4541) Sheath PTFE Sheath Tantal
Wetted part finishing (Ra)
Tip shape
straight reduced tapered optimized for quick response times
Temperature range
-200...1.100 °C (-328...2.012 °F)
Max. process pressure (static)
Depending on configuration up to 100 bar
Max. process pressure at 400 °C
Depending on configuration
Mest nedlastet
iTHERM TT131
Engelsk versjon - 03/2021
Welded thermowell for a range of industrial applications
EN
NO
DE ES FR IT JA PL PT RU ZH
30/03/2021
17/12/2018
Språk:
Engelsk
Versjon:
30/03/2021
Filstørrelse:
1.3 MB
Filnavn:
TI01442TEN_0221.pdf
