TMT142C
TC Thermometer, fieldtransmitter, display

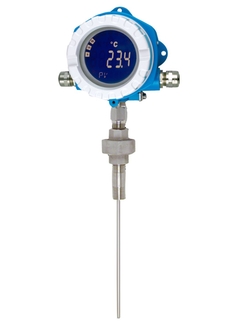

TC thermometer TMT142C with field transmitter ©Endress+Hauser

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. The thermometer fulfills the corresponding safety requirements due to various certificates and tests. The use of a transmitter leads to higher accuracy and reliability in comparison to directly wired sensors.

  • Enkle produkter

  • Enkelt å velge, intallere og bruke

Tekniske egenskaper

Enkelhet

  • Standardprodukter

  • Pålitelige, robuste og lette å vedlikeholde

Tekniske egenskaper

Enkelhet

  • High- end produkter

  • Høyst funksjonelle og praktiske

Tekniske egenskaper

Enkelhet

  • Spesialprodukter

  • Designet for krevende applikasjoner

Tekniske egenskaper

Enkelhet

Varierende

FLEX utvalget Tekniske egenskaper Enkelhet
  • F
  • L
  • E
  • X

Fundamental utvalg

Møter dine grunleggende målebehov

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Lean utvalg

Håndter henkelt dine kjerneprosesser

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Extended utvalg

Optimaliser prosessene dine med innovative teknologier

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Xpert utvalg

Mestre de mest utfordrende applikasjonene dine

Tekniske egenskaper
Enkelhet

Varierende

Dette produktet er ikke tilgjengelig for dette markedet

  • Spesifikasjonene kort oppsummert

    • Accuracy

      class 1 acc. to IEC 60584
      class 2 acc. to IEC 60584

    • Response time

      depending on configuration
      t50 = 3 s
      t90 = 7 s

    • Max. process pressure (static)

      depending on thermowell

    • Operating temperature range

      Type K:
      -40 °C ...800 °C
      (-40 °F ...1.472 °F)
      Type J:
      -40 °C ... 750 °C
      (-40 °F ...1.382 °F)

    • Max. immersion length on request

      up to 30.000,00 mm (1.181,10'')

Hurtigvalg

Velg ett av våre foreslåtte alternative
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer
  • Fordeler

    • Dual compartment housing

    • Backlit display with large measured value, bar graph and fault condition indication

    • Galvanic isolation 2 kV (sensor input to the output)

    • Wide range of threaded thermowell connections available as standard

    • Replaceable measuring...

  • Bruksområde

    The temperature assembly TMT142C is a compact thermometer specifically designed to fulfill the requirements of different process industries such as the chemical, petrochemical and energy but even suitable to other general purpose applications.
    The...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Thermocouple

  • Characteristic / Application

    US style

    modular temperature assembly

    for heavy duty applications

    suitable for hazardous areas

    threaded process connection

    to use with thermowell

    backlit display

  • Thermowell / protection tube

    to use with thermowell

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    Not defined

  • Max. immersion length on request

    up to 30.000,00 mm (1.181,10'')

  • Material protection tube/ thermowell

    Not defined

  • Optional coating

    Not defined

  • Process connection

    male thread:

    G1/2"

    NPT1/2"

    NPT3/4"

    union nut:

    NPT1/2"

    M24x1.5

  • Tip shape

    straight

  • Operating temperature range

    Type K:

    -40 °C ...800 °C

    (-40 °F ...1.472 °F)

    Type J:

    -40 °C ... 750 °C

    (-40 °F ...1.382 °F)

  • Max. process pressure (static)

    depending on thermowell

  • Accuracy

    class 1 acc. to IEC 60584

    class 2 acc. to IEC 60584

  • Response time

    depending on configuration

    t50 = 3 s

    t90 = 7 s

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    ATEX II

    Explosion proof
