iTHERM TM401
Modular RTD thermometer - basic technology

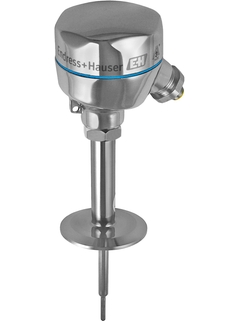

Product picture hygienic RTD thermometer TM401 ©Endress+Hauser

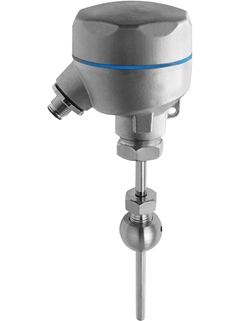

Product picture hygienic RTD thermometer TM401 with spheric weld-in adapter ©Endress+Hauser

For standard hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

This iTHERM thermometer has been designed to meet the basic requirements of the Food & Beverages and Life Sciences industries at the best price. It offers a variety of versions within a clearly segmented standard product. The result: Time and cost savings by simple and fast product selection. The device uses basic technology with features such as a fixed, non-replaceable insert, a wide range of process connections and international certification at an excellent value for money.

  • Fordeler

    • Excellent value for money and fast delivery

    • User-friendly and reliable from product selection to maintenance

    • International certification: hygiene standards as per 3-A® , EHEDG, ASME BPE, FDA, TSE Certificate of Suitability

    • Wide range of process connections

  • Bruksområde

    • Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

    • Measuring range: –50 to +200 °C (–8 to +392 °F)

    • Pressure range up to 50 bar (725 psi)

    • Protection class: up to IP69K

    • Can be used in non-...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    hygienic applications

    aseptic applications

    hygienic process connections

    with neck

  • Terminal head

    TA30A - aluminium - hinged cover

    TA30R - stainless steel blasted - screwed cover

    TA30R - stainless steel handpolished - screwed cover

    TA30S - polypropylene - screwed cover

  • Thermowell / protection tube

    without (not intended to use with thermowell)

  • Insert / probe

    without exchangeable insert

  • Outer diameter protection tube

    6,0 mm (0,24")

    8,0 mm (0,31")

  • Max. immersion length on request

    up to 400 mm (15,75")

  • Material protection tube/ thermowell

    316L

  • Process connection

    compression fitting

    triclamp

    microclamp

    clamp connections acc. to ISO2852

    Ingold

    G3/4" Liquiphant

    G1" Liquiphant

    Varivent

    SMS 1147

    screwed pipe joint acc. to DIN 11851

  • Tip shape

    straight

    reduced

  • Surface roughness Ra

    0,76 μm (30 μin)

    0,38 μm (15 μin)

  • Operating temperature range

    PT100:

    -50 °C … 200 °C

    (-58 °F … 392 °F)

  • Max. process pressure (static)

    at 20 °C: 40 bar (580 psi)

  • Accuracy

    class A acc. to IEC 60751

  • Response time

    depending on configuration

  • Integration head transmitter

    yes (4 ... 20 mA, HART)

  • Certification

    SIL (transmitter only)

Dokumenter / håndbøker / programvare

Tilbehør / reservedeler

Nr
Order code
Specification
    • Order code 71182602

      Spare parts kit sealing TA30A/TA30D

      5x O-ring 3.69x1.78 5x 0-ring 74.7x2.75

    • Order code 71182606

      Spare parts kit sealing TA30R

      5x O-ring 57x2.5 5x O-ring 64.3x1.8 blau

    • Order code 71367427

      Spare parts kit ring D21/di 10xgreen,10p

      Packing unit: 10 pieces

    • Order code 71383294

      Spare parts kit gasket Da21/10x2EPDM 10p

      10 pieces

    • Order code 60021194

      Plug screw fitting TA56- 316L

    • Order code 60022519

      plug screw fitting G1/2 1.4435

    • Order code 71215757

      Spare Part Kit Press-Screw TK40 G1/4 d6

    • Order code 52018765

      Weld-in adapter G3/4 d=50, 316L, 3.1

      Flush mount process connection Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51, FTI51, FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33, 11371. Usage: TMR35.

    • Order code 52028295

      Weld-in adapter G3/4, d=29, 316L, 3.1

      Flush mount process connection. For pipe-mounting. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33.

    • Order code 52021717

      O-ring 14.9x2.7 VMQ, FDA, 5 pieces

      Material: silicone VMQ 75. Usage: weld-in adapter G3/4, FTL20H, FTL31/FTL33, FTW33.

    • Order code 52001052

      Weld-in adapter G3/4, d=55, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL50/FTL50H, FTL80. Usage: TMR35.

    • Order code 52011897

      Weld-in adapter G3/4, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL50/FTL50H, FTL80. Usage: TMR35.

    • Order code 52014473

      O-ring 21.89x2.62 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G3/4, FTL50/FTL50H/FTL51/FTL51C/FTL51H.

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 71093129

      Weld-in adapter G1, d=53, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs. Material: silicone VMQ 70. Usage: weld-in adapter G1 (52001051), FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL260, FTL330H/FTL330L, FTW33, PMP23, PMP135, PTP35. Weld-in adapter G1, 3.1 (52011896), FTL50/FTL50H/FTL51/FTL51C/FTL51H, PMP23, PMP135, PTP35. Sliding sleeve, Soliphant T.

    • Order code 52001221

      Weld-in adapter G1, adjustable, 316L

      Flush mount process connection. Material: 316L. Liquiphant is adjustable. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL330H/330L.

    • Order code 52011898

      Weld-in adapter G1, adjustable,316L, 3.1

      Flush mount process connection. Material: 316L. Liquiphant is adjustable. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL31/FTL33, FTL80/FTL81, FTL330H/FTL330L.

    • Order code 52014424

      Profile gasket 29x36x3.7, FDA, 5pcs.

      Material: silicone VMQ. FDA. Usage: weld-in adapter G1, adjustable, 316L (52001221), FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H. Usage: weld-in adapter G1, adjustable, 316L (52011898), FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H. Usage: process connection flush mounted, FTL50H/FTL51H. Usage: weld-in adapter G1, adjustable, FTL20H, FTL31/FTL33, FTL330H/FTL330L.

    • Order code 60021387

      G1/2 metal to metal weld in adapter

      connection with G1/2" female thread. Material: AISI 316L/1.4435. 2x leakage bore.

    • Order code 71190468

      weld in adapter M12x1,5 316L&1.4435

    • Order code XPT0002-DC

      Plug M12 PA, M20, 316, IP67, NEMA6, -40...+105oC

    • Order code XPT0004-

      Spare parts kit cover terminal headTA30R

      cover of connecting head

  • A
    • Nr A Order code TA30A-

      Terminal Head TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA4X (housing).

    • Nr A Order code TA30R-

      Terminal Head TA30R

      Retainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: Stainless Steel 316L. Colour: Steel (no coating). Ambient Temp.: -50...85/130 oC (display/standard). Protection: IP66/68, NEMA4X; IP69K (housing). :: easy wiring through best accessibility. :: compact desing and low weight.

    • Nr A Order code TA30S-

      Terminal Head TA30S

      Retainer for terminal block. or head transmitter. Cover: screwed. Material: Polypropylene. Colour: white. Ambient Temp.: -30...+130oC. Protection: IP65, NEMA4X (housing). :: easy wiring through good accessibility. :: compact desing, low weight.

    • Order code TK40-

      iTHERM TK40 Compression Fitting

      Weld-in compression fitting with hygienic design. For applications in the food/ beverages and pharmaceutical industries.

    • Order code XPT0001-

      Spare Part Kit Sealing TK40

      delivery: 5 parts per kit

    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

    • Order code READWIN-

      Readwin 2000 Operation + Read. software

    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

  • B
    • Nr B Order code TMT180-

      iTEMP TMT180, Head Transmitter Pt100

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed. GL (German Lloyd) Marine.

    • Nr B Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed. GL (German Llyod) Marine.

    • Nr B Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed. GL (German Llyod) Marine.
