Fieldgate SFG500
Intelligent Ethernet/PROFIBUS gateway

Fieldgate SFG500 - Ethernet/PROFIBUS gateway for remote monitoring © Endress+Hauser

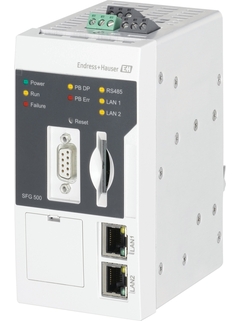

Fieldgate SFG500 - Ethernet gateway with integrated Web server that provides an independent access route to a PROFIBUS network. Plant Access Point for PROFIBUS devices.

Fieldgate SFG500 - Intelligent Ethernet/PROFIBUS gateway © Endress+Hauser

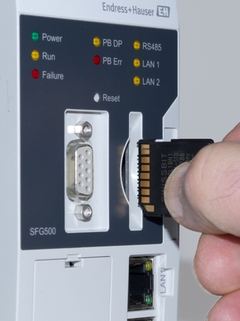

One hardware, multiple options: Fieldgate SFG500 is designed to serve a variety of applications. The operating mode of a Fieldgate SFG500 is determined by an optional Fieldgate Module SFM500

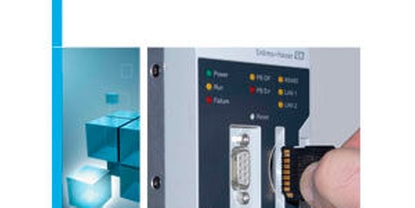

Learn how Fieldgate SFG500 and the memory card Fieldgate Module SFM500 work together to provide advanced status monitoring of intelligent devices in a PROFIBUS network.

Fieldgate SFG500 “Asset Monitor” Advanced mode © Endress+Hauser

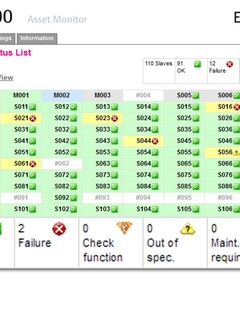

Fieldgate SFG500 “Asset Monitor” Advanced mode: Asset Status List with indication of NE 107 status

Fieldgate SFG500 “Asset Monitor” Advanced mode © Endress+Hauser

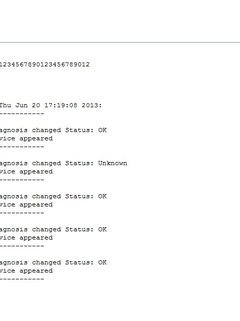

Fieldgate SFG500 “Asset Monitor” Advanced mode: Event e-mail notification listing all events of a certain time period

Fieldgate SFG500 “Asset Monitor”
Advanced mode © Endress+Hauser

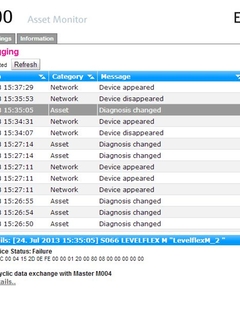

Fieldgate SFG500 “Asset Monitor” Advanced mode: Event Logging for device diagnostic messages and other changes versus a defined baseline

Fieldgate SFG500 “Access Point” Basic mode © Endress+Hauser

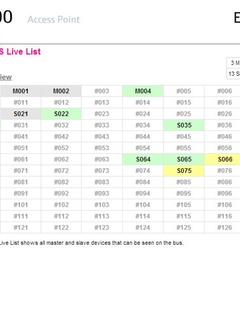

Fieldgate SFG500 “Access Point” Basic mode: PROFIBUS Live List with indication of communication status

Fieldgate SFG500 “Access Point” Basic mode © Endress+Hauser

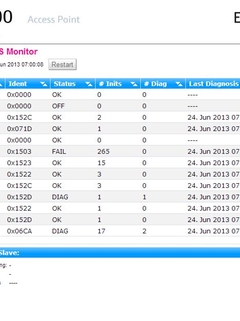

Fieldgate SFG500 “Access Point” Basic mode: PROFIBUS Monitor counts reconfigurations and diagnostic events

Fieldgate SFG500 “Access Point” Basic mode © Endress+Hauser

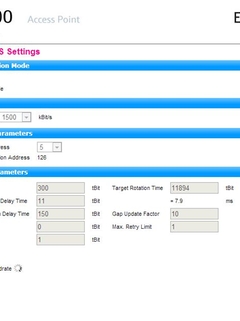

Fieldgate SFG500 “Access Point” Basic mode: PROFIBUS Settings may be autodetected or user-defined

Fieldgate SFG500 “Asset Monitor” Advanced mode © Endress+Hauser

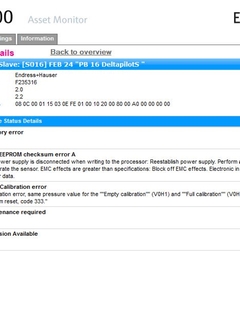

Fieldgate SFG500 “Asset Monitor” Advanced mode: Slave Details showing device status with cause and remedy information

Fieldgate SFG500 „Process Monitor“ Advanced mode: Monitoring cyclic and acyclic process values © Endress+Hauser

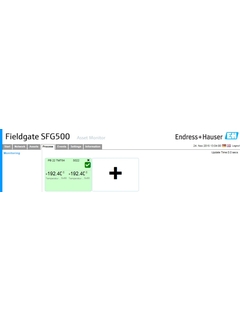

Fieldgate SFG500 „Process Monitor“ Advanced mode: Monitoring cyclic and acyclic process values

Fieldgate SFG500:  Integration with FieldCare © Endress+Hauser

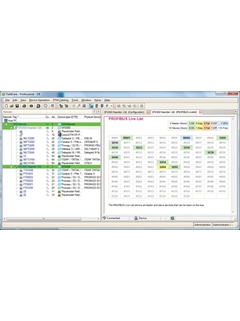

Fieldgate SFG500: Integration with FieldCare - software tool for field device configuration, for basic and advanced mode

Fieldgate SFG500: Integration with FieldCare, for basic and advanced mode © Endress+Hauser

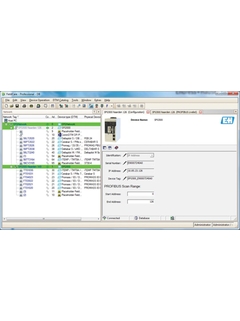

Fieldgate SFG500: Integration with FieldCare - software tool for field device configuration, for basic and advanced mode

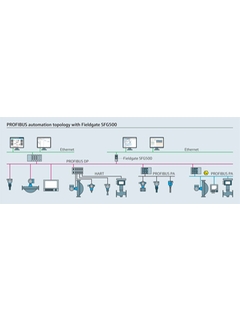

PROFIBUS automation topology with Fieldgate SFG500 © Endress+Hauser

Get the most information out of your field device by using FieldCare, scalable software tool for device configuration and integrated Plant Asset Management solutions.

Parallel access to PROFIBUS networks, monitoring of PROFIBUS and HART device status

Fieldgate SFG500 is a system component that provides an independent access route to a PROFIBUS network. It may be used in a variety of applications that are supported by specific operating modes.
Fieldgate SFG500 may be used in a variety of applications that are supported by specific operating modes. The operating modes are determined by the use of an optional memory card (Fieldgate Module SFM500).

  • Fordeler

    • PROFIBUS listener and Master Class 2: automatically integrates itself into a PROFIBUS network and finds all connected devices

    • HART support via PROFIBUS: HART device support and device diagnostics

    • PROFIBUS observer: monitors network traffic and device...

  • Bruksområde

    Without a memory card, Fieldgate SFG500 operates as a plant access point. In this case, it acts as an Ethernet gateway with adaptive PROFIBUS Master Class 2 capabilities to support FDT-based plant asset management host applications, e.g. FieldCare.

    With...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Fieldgate

  • Function

    Ethernet/PROFIBUS DP gateway with integrated Web server

  • Input

    PROFIBUS DP/V1, Master Class II, Listener

  • Output

    Ethernet 10Base-T/100Base-TX

  • Power supply

    18 VDC - 36 VDC

  • Dimensions (WxHxD)

    142.0 mm x 70.0 mm x 114.0 mm; (5.6" x 2.8" x 4.5")

  • Communication interface

    Web-Server, via standard Web browser

  • Configuration

    Via Web-Server

  • Certificates

    TÜV NRTL according to EN/IEC/UL/CAN/CSA C22.2-No. 61010-1

    CE gemäß EN/IEC 61131-2: 2007

Dokumenter / håndbøker / programvare

Tilbehør / reservedeler

Nr
Order code
Specification
    • Order code 71116672

      Fieldgate SFG500

      Plant Access Point for PROFIBUS. Basic mode Ethernet Gateway with integrated web server and adaptive PROFIBUS Master Cl.2 for communication with PROFIBUS devices. Advanced options and operating modes require Fieldgate module SFM500.

    • Order code

      Unit is not repairable.

    • Order code SFM500-

      Fieldgate Module SFM500

      Memory module with specific firmware for Fieldgate SFG500

Nedlastinger
