RID14
8 channel field indicator for fieldbuses

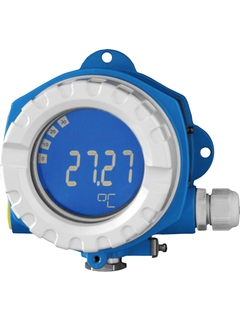

Fieldbus indicator RID14 with FOUNDATION Fieldbus™ or PROFIBUS® PA protocol ©Endress+Hauser

Indication of up to 8 process or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA protocol

The 8 channel indicator shows measured and calculated values and status information of the fieldbus users in a FOUNDATION Fieldbus™ or PROFIBUS® PA network. In the listener mode the device listens to the set fieldbus addresses and indicates their values. In addition, for FOUNDATION Fieldbus™ values available on the bus can be indicated via function block interconnection. A plain text field allows the display of the engineering unit or of the TAG. A bar graph is available for trend visualization.

  • Enkle produkter

  • Enkelt å velge, intallere og bruke

Tekniske egenskaper

Enkelhet

  • Standardprodukter

  • Pålitelige, robuste og lette å vedlikeholde

Tekniske egenskaper

Enkelhet

  • High- end produkter

  • Høyst funksjonelle og praktiske

Tekniske egenskaper

Enkelhet

  • Spesialprodukter

  • Designet for krevende applikasjoner

Tekniske egenskaper

Enkelhet

Varierende

FLEX utvalget Tekniske egenskaper Enkelhet
  • F
  • L
  • E
  • X

Fundamental utvalg

Møter dine grunleggende målebehov

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Lean utvalg

Håndter henkelt dine kjerneprosesser

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Extended utvalg

Optimaliser prosessene dine med innovative teknologier

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Xpert utvalg

Mestre de mest utfordrende applikasjonene dine

Tekniske egenskaper
Enkelhet

Varierende

  • Spesifikasjonene kort oppsummert

    • Input

      Foundation Fieldbus protocol
      PROFIBUS PA protocol

    • Output

      Not defined

    • Display

      High contrast backlit LCD with bargraph
      TAG/unit

    • Power Supply

      Not defined

Hurtigvalg

Velg ett av våre foreslåtte alternative
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer
  • Fordeler

    • Simple and standardized communication via fieldbus protocol

    • Listener mode for up to 8 input channels or digital status

    • Brilliant, backlit LC display with bar graph, diagnostic symbols and clear text field

    • No external power supply required

    • International...

  • Bruksområde

    Fieldbus indicator with 8 input channels and FOUNDATION Fieldbus™ or PROFIBUS® PA protocol for displaying process values and calculated values.

Details

  • Measuring principle

    Display

  • Function

    Display values

    Advanced diagnostic

  • Certification

    ATEX Ex ia

    ATEX Ex d

    FM

    CSA

    IECEx Ex ia

    IECEx Ex d

    IECEx Ex tD

  • Input

    Foundation Fieldbus protocol

    PROFIBUS PA protocol

  • Dimensions (wxhxd)

    Field housing:

    132 x 135 x 106 mm

    (5.2" x 5.31" x 4.17")

  • Software

    Listener Mode


    On Foundation Fieldbus also function block connection:

    Display transducer block

    Advanced diagnostic block´

    2 x input selector

    Arithmetic block

    Integrator block

    PID block

  • Operation

    Foundation Fieldbus: via fieldbus

    PROFIBUS PA: DTM and FieldCare or DIP-switches on the device


    Write lock on hardware

  • Display

    High contrast backlit LCD with bargraph

    TAG/unit

  • Operating Voltage

    9-32 V DC, polarity independent

  • Measuring principle

    Fieldbus indicators

  • Measuring principle

    8 channel field indicator for fieldbuses

  • Function

    Display values

    Advanced diagnostic

  • Display

    High contrast backlit LCD with bargraph

    TAG/unit

  • Power Supply

    Not defined

  • Input

    Foundation Fieldbus protocol

    PROFIBUS PA protocol

  • Output

    Not defined

  • Output

    Not defined

  • Software functions

    Listener Mode

    On Foundation Fieldbus also function block connection:

    Display transducer block

    Advanced diagnostic block

    2 x input selector

    Arithmetic block

    Integrator block

    PID block

  • Certificates

    ATEX Ex ia

    ATEX Ex d

    FM

    CSA

    IECEx Ex ia

    IECEx Ex d

    IECEx Ex tD

  • SIL

    Not defined

  • Panel mounting

    field
