EngyCal RS33
Steam calculator

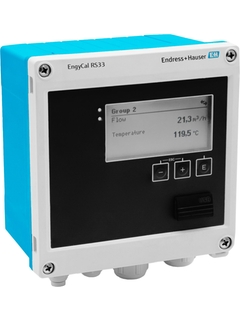

Steam calculator RS33 ©Endress+Hauser

Steam calculator for recording steam mass and energy flow for saturated or superheated steam

The steam calculator EngyCal RS33 is used to record steam mass and energy flow of saturated and superheated steam. The calculation is based on the measured process variables volume flow, temperature and/or pressure.
The EngyCal RS33 uses the standard IAPWS IF97 to calculate the mass and energy flow of steam. The density and enthalpy of the steam are calculated from the input variables pressure and temperature.

  • Enkle produkter

  • Enkelt å velge, intallere og bruke

Tekniske egenskaper

Enkelhet

  • Standardprodukter

  • Pålitelige, robuste og lette å vedlikeholde

Tekniske egenskaper

Enkelhet

  • High- end produkter

  • Høyst funksjonelle og praktiske

Tekniske egenskaper

Enkelhet

  • Spesialprodukter

  • Designet for krevende applikasjoner

Tekniske egenskaper

Enkelhet

Varierende

FLEX utvalget Tekniske egenskaper Enkelhet
  • F
  • L
  • E
  • X

Fundamental utvalg

Møter dine grunleggende målebehov

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Lean utvalg

Håndter henkelt dine kjerneprosesser

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Extended utvalg

Optimaliser prosessene dine med innovative teknologier

Tekniske egenskaper
Enkelhet
  • F
  • L
  • E
  • X

Xpert utvalg

Mestre de mest utfordrende applikasjonene dine

Tekniske egenskaper
Enkelhet

Varierende

  • Spesifikasjonene kort oppsummert

    • Input

      1x Puls/Analog for flow
      2x RTD/Analog for temperature and pressure
      Loop power supply 24V DC (+/-16%)

    • Output

      1x 4...20mA
      2x digital (Open Collector)

    • Display

      160 x 80 Dot-Matrix LCD with white backlit
      colour change in case of alarm event
      active display area 70 x 34 mm

    • Calculations

      IAPWS-IF97

Hurtigvalg

Velg ett av våre foreslåtte alternative
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer
  • Fordeler

    • Compensation of differential pressure flow measurement

    • Calculation according to international water steam tables

    • Electronic matching of the temperature sensor (sensor-transmitter matching) with the arithmetic unit enables highly accurate temperature...

  • Bruksområde

    Recording and billing energy quantities in steam applications (steam heat quantity, steam heat differential). Typical applications include:

    • Food industry

    • Chemical industry

    • Pharmaceutical industry

    • Power plants

    • Building systems and plant engineering

Details

  • Measuring principle

    Energy manager

  • Function

    Monitoring and billing of energy in saturated and superheated steam applications (steam heat flow, heat difference; typical applications can be found in food & beverage industry, chemical industry, pharmaceutical industry, power plants, building automation and skid builders

  • Certification

    CE, UL listed, CSA GP

  • Input

    1x Puls/Analog for flow,

    2x RTD/Analog for temperature and pressure,
    Loop power supply 24V DC (+/-16%)

  • Output

    1x 4...20mA,

    2x digital (Open Collector)

  • Relay output

    2x

  • Auxiliary power supply

    Low voltage power supply: 100 bis 230 V AC (-15% / +10%); Small voltage power supply: 24 V DC (-50% / +75%), 24 V AC (±50%)

  • Dimensions (wxhxd)

    144 x 144 x 103.1 mm

    (5.67" x 5.67" x 4.06")

  • Software

    Calculated Values:

    Energy, volume, density, enthalpy, DP-Flow;
    Counters: volume, mass, energy, counter in case of failure

    Optional: tariff 1, tariff 2 or seperated heating energy, cooling energy, bilance energy

  • Operation

    3 button on site or via FieldCare; read out of historical / logged data via Field Data Manager Software (SQL database and visualization interface), selectable language

  • Display

    160 x 80 Dot-Matrix LCD with white backlit, colour change in case of alarm event, active display area 70 x 34 mm

  • Others

    electronic temperature sensor matching via CvD coefficients, logbook measured values, custody transfer logbook, event logbook, limit monitoring

  • Calculations

    IAPWS-IF97

  • Measuring principle

    Energy manager

  • Measuring principle

    Energy manager

  • Function

    Monitoring and billing of energy in saturated and superheated steam applications (steam heat flow, heat difference.

    Typical applications can be found in food & beverage industry, chemical industry, pharmaceutical industry, power plants, building automation and skid builders.

  • Calculations

    IAPWS-IF97

  • Number of applications

    Not defined

  • Data storage

    yes

  • Calculation standards

    IAPWS-97

  • Communication

    web server

    USB

    Ethernet

    Modbus RTU/TCP Slave

    M-Bus

  • Power supply

    Not defined

  • Loop power supply

    Low voltage power supply:

    100 bis 230 V AC (-15% / +10%)

    Small voltage power supply:

    24 V DC (-50% / +75%)

    24 V AC (±50%)

  • Protection class

    IP65

  • Input

    1x Puls/Analog for flow

    2x RTD/Analog for temperature and pressure

    Loop power supply 24V DC (+/-16%)

  • Output

    1x 4...20mA

    2x digital (Open Collector)

  • Dimensions (WxHxD)

    144 x 144 x 103.1 mm (5.67" x 5.67" x 4.06")

  • Operation

    3 button on site or via FieldCare

    read out of historical / logged data via Field Data Manager Software (SQL database and visualization interface)

    selectable language

  • Display

    160 x 80 Dot-Matrix LCD with white backlit

    colour change in case of alarm event

    active display area 70 x 34 mm

  • Software functions

    Calculated Values:

    Energy, volume, density, enthalpy, DP-Flow

    Counters:

    volume, mass, energy, counter in case of failure

    Optional:

    tariff 1, tariff 2 or seperated heating energy, cooling energy, bilance energy

  • Certificates

    CE

    CSA GP
    MID 004

    OIML R75
