Temperature indicator RIT261

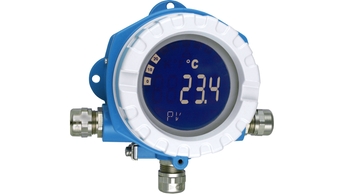

Produktbilde av: Temperature indicator RIT261

Dette produktet er ikke tilgjengelig lenger.

Se den nye generasjonen i området forgjenger/etterfølger, eller kontakt den lokale Endress+Hauser-representanten.

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Display

  • Function

    Display temperature

  • Certification

    ATEX Ex i

    ATEX n

    FM USA IS

    FM USA NI

    FM USA DIP

    CSA IS

    CSA NI

  • Input

    1 x analog (RTD, TC, mV)

  • Output

    1 x analog 4...20 mA

  • Auxiliary power supply / Loop power supply

    12...35 V DC

  • Dimensions (wxhxd)

    Field housing:

    175 x 80 x 65 mm

    (6.89" x 3.15" x 2.56")

  • Operation

    3 keys

    Interface PCP + ReadWin

  • Display

    LCD 26 mm (1.02")

    Illuminated

    5-digit

    Bargraph

Dokumenter / håndbøker / programvare

Tilbehør / reservedeler

Nr
Order code
Specification
  • 4
    • Nr 4 Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr 4 Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

  • Erstatter
