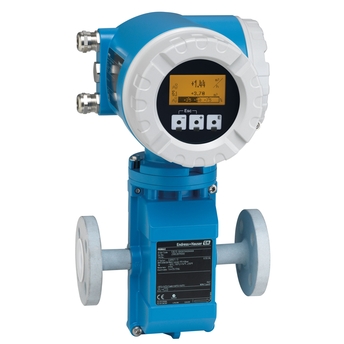

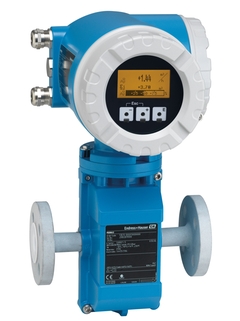

Proline Promag 53E
Electromagnetic flowmeter

Electromagnetic flowmeter - Proline Promag 53E ©Endress+Hauser

The Electromagnetic Flow Measuring Principle

The economical flowmeter with flexible system integration

Promag E is a streamlined sensor for basic chemical applications. It is the most economical solution for our chemical customers. Combined with the Promag 53 transmitter with touch control, four line display and extended functionality like software options for filling and dosing, electrode cleaning or advanced diagnostics, Promag 53E offers highest accuracy in the most complex and demanding measuring tasks. Promag 53E is available as compact or remote version.

  • Fordeler

    • Cost-effective sensor – ideal solution for basic requirements

    • Energy-saving flow measurement – no pressure loss due to cross-section constriction

    • Maintenance-free – no moving parts

    • Quality – software for filling & dosing, density, electrode cleaning...

  • Bruksområde

    • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

    • Fully suitable for basic applications in the chemical and process industry

    Device properties

    • Nominal diameter: max. DN 600 (24")

    • Ex approvals...

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Electromagnetic

  • Product headline

    The economical flowmeter with flexible system integration. Fully suitable for basic applications in the chemical and process industry.

  • Sensor features

    Cost‐effective sensor – ideal solution for basic requirements. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Nominal diameter: max. DN 600 (24"). Ex approvals for Zone 2.

  • Transmitter features

    Quality – software for filling & dosing, density, electrode cleaning and also advanced diagnostics. Easy calculation – bidirectional totalizers. Automatic recovery of data for servicing. 4-line backlit display with touch control. Device as compact or remote version.

  • Nominal diameter range

    DN 15 to 600 (½ to 24")

  • Wetted materials

    Liner: PTFE
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum

  • Measured variables

    Volume flow

  • Max. measurement error

    Volume flow: ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

  • Measuring range

    4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)

  • Max. process pressure

    PN 40, Class 150, 20K

  • Medium temperature range

    –10 to +110 °C (+14 to +230 °F)

  • Ambient temperature range

    –10 to +60 °C (+14 to +140 °F)

  • Sensor housing material

    DN 15 to 300 (½ to 12"): AlSi10Mg, coated

    DN 350 to 600 (14 to 24"): Carbon steel with protective varnish

    Sensor connection housing: AlSi10Mg, coated

  • Transmitter housing material

    Powder‐coated die‐cast aluminum

  • Degree of protection

    Compact version: IP67, type 4X enclosure
    Sensor remote version (standard): IP67, type 4X enclosure
    Sensor remote version (option): IP68, type 6P enclosure
    Transmitter remote version: IP67, type 4X enclosure

  • Display/Operation

    4‐line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible

  • Outputs

    4 modular outputs:
    0‐20 mA (active)/4‐20 mA (active/passive)
    Pulse/frequency (passive)
    Relay output
    Switch output (passive)

  • Inputs

    2 modular inputs:
    Status input
    0‐20 mA (aktiv)/4‐20 mA (aktiv/passiv)

  • Digital communication

    HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, MODBUS RS485, EtherNet/IP

  • Power supply

    DC 16 to 62 V
    AC 85 to 260 V (45 to 65 Hz)
    AC 20 to 55 V (45 to 65 Hz)

  • Hazardous area approvals

    ATEX, cCSAus

  • Product safety

    CE, C-tick, EAC marking

  • Metrological approvals and certificates

    3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

  • Pressure approvals and certificates

    PED

  • Material certificates

    3.1 material
