Modular RTD thermometer, US style

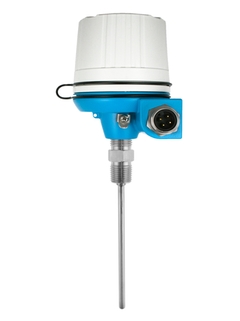

Product picture Pt100 thermometer TH11 US style ©Endress+Hauser

Best in class temperature measurement technology for general applications

The high modular thermometer is used for several applications in almost all industries. Examples are heat exchangers, dryers, process reactors , reactor stations, etc. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability. It also enables very fast response times, due to direct contact measurement without thermowell. A variety of process connections and dimensions offer flexible application possibilities.
