Omnigrad TA575
Barstock thermowell

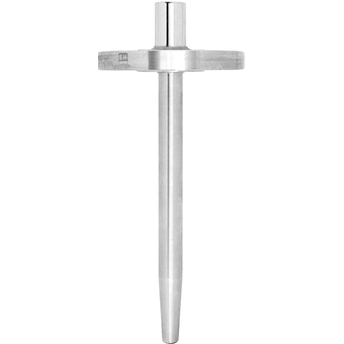

Omnigrad TA575
Barstock thermowell ©Endress+Hauser

Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

  • Fordeler

    • The extension, the immersion and the tapering lengths as well as the bar dimensions can be chosen according to process requirements

    • A wide choice of standard materials and flanged connections is available; special versions can be ordered according to...

  • Bruksområde

    TA575 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.

Funksjoner og spesifikasjoner

Tilbake

Details

  • Measuring principle

    Bar stock Thermowell

  • Characteristic / Application

    metric style

    flanged process connections

    round extension

  • Head connection

    internal thread:

    1/2" NPT

    1/2" NPSM

  • Maximum standard immersion length

    1000 mm (39,37")

  • Max. immersion length on request

    5.000 mm (196,85")

  • Process connection

    flange:

    ASME 1" 150 RF (B16.5)

    ASME 1" 300 RF (B16.5)

    ASME 1" 600 RF (B16.5)

    ASME 1 1/2" 150 RF (B16.5)

    ASME 1 1/2" 300 RF (B16.5)

    ASME 1 1/2" 600 RF (B16.5)

    ASME 1 1/2" 1500 RF (B16.5)

    ASME 1 1/2" 600 RTJ (B16.5)

    ASME 2" 300 RF (B16.5)

    ASME 2" 600 RF (B16.5)

    ASME 2" 300 RTJ (B16.5)

    ASME 2" 600 RTJ (B16.5)

    DN25 PN16 B1

    DN25 PN40 B1

    DN40 PN40 B1

    DN50 PN40 B1

  • Thermowell root diameter

    27 mm (1,06")

  • Medium contact material

    1.4401 (316)

    1.4404 (316L)

    1.4571 (316Ti)

  • Wetted part finishing (Ra)

    < 0.8 μm (31.50 μin)

    < 1.6 μm (63.00 μin)

  • Tip shape

    straight

    conical

    conical tapered

  • Temperature range

    -200...700 °C (-328...1.292 °F)

  • Max. process pressure (static)

    500 bar (7252 psi)

  • Max. process pressure at 400 °C

    depends on process connection
