TC65
Explosion-proof thermocouple thermometer

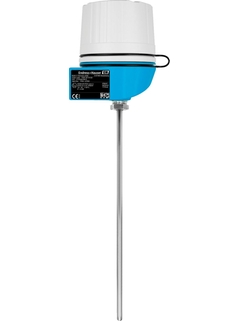

Product picture of thermocouple thermometer TC65

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. The sensor may be used direct contact without thermowell or where the application requires it, spring load inside of a separate thermowell. Flexible configuration possible.

Dimensjonering
Prissetting etter innlogging og konfigurasjon

Sammenligne

Hurtigvalg

Velg ett av våre foreslåtte alternative

<%label%>
-- selected coding

-- selected label
<%label%>
Leter du etter flere alternativer? Bruk det individuelle konfigurasjonsverktøyet for å fortsette.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Leter du etter flere alternativer? Bruk det individuelle konfigurasjonsverktøyet for å fortsette.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Valgfritt tilbehør

Bruk det individuelle konfigurasjonsverktøyet for å fortsette.

eller

individuell konfigurasjon

Fortsett for å velge blant alle mulige alternativer

Konfigurere

Ekstra komponenter

RIA14
Loop-powered field indicator

Excellent readable indication of a 4…20 mA signal on-site for a better process overview!
Mer informasjon
Sammenligne
RID14
8 channel field indicator for fieldbuses

Indication of up to 8 process or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA protocol
Mer informasjon
Sammenligne
HAW569
Surge arresters

Surge arresters for field mounting
Mer informasjon
Sammenligne
RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
Mer informasjon
Sammenligne
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
Mer informasjon
Sammenligne

Fordeler
Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), flameproof (Ex d), non-sparking (Ex nA)
High degree of insert compatibility and design as per DIN 43772
High degree of flexibility thanks to modular design with standard...

Vis mer
Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), flameproof (Ex d), non-sparking (Ex nA)
High degree of insert compatibility and design as per DIN 43772
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

For plug-in/screw-in with sliding compression fitting

Vis mindre

Bruksområde
Fine Chemicals

Petrochemical industry

Power stations

Environmental engineering

Measuring range: –40 to 1 100 °C (–40 to 2 012 °F)

Static pressure range up to 75 bar dependent on the used process connection

Protection class: IP68

Funksjoner og spesifikasjoner

Tilbake

Details

Measuring principle

Thermocouple
Characteristic / Application

metric style

modular temperature assembly

for heavy duty applications

suitable for hazardous areas

threaded process connection

without neck
Terminal head

TA21H – aluminium – screw cover w. chain

TA21H – stainless steel – screw cover w. chain

TA30H – aluminium – w. or w/o. display

TA30H – aluminium – one or two cable entries NPT1/2", NPT3/4", M20x1.5
Thermowell / protection tube

without (not intended to use with thermowell)
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

3,0 mm (0,12'')

6,0 mm (0,24'')
Max. immersion length on request

up to 30.000,00 mm (1.181,10'')
Material protection tube/ thermowell

1.4404 (316L)

Alloy 600 (2.4816)
Process connection

male thread:

NPT1/2"

NPT3/4"

compression fitting:

NPT1/2"

NPT3/4"
Tip shape

straight

tapered
Operating temperature range

Type K:

-40 °C ...1.100 °C

(-40 °F ...2.012 °F)

Type J:

-200 °C ...750 °C

(-328 °F ...1.382 °F)
Max. process pressure (static)

at 20 °C: 80 bar (1,160 psi)
Accuracy

class 1 acc. to IEC 60584
Response time

depending on configuration

t50 = 3 s

t90 = 7 s
Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals

ATEX II

IECEx

NEPSI

EAC Ex

Explosion proof
Certification

Gost Metrology

SIL (transmitter only)

Vis mer
Vis mindre

Dokumenter / håndbøker / programvare

Nedlastningstype

Filter

Technical Information Omnigrad S TC65
Thermocouple thermometer EEx-d certified, no replaceable insert, no
thermowell, process connection threaded fixed or compression fitting
PCP (4...20 mA), HART® or PROFIBUS-PA® electronics

Technical Information (TI)
Omnigrad S TR65, TC65 Technical Information
Modular thermometer, with optional RTD or TC insert, optional with
adjustable
compression fitting

Technical Information (TI)
Omnigrad S TR/TC6x
RTD / TC Thermometer
1Ex d IIC T6...T1 Gb X
Ex tb IIIC 85 °C....450 °C Da X
Ga/Gb Ex d IIC T6...T1 X
Ex ta/tb IIIC 85 °C...450 °C Da/Db X

Ex Safety Instructions (XA)
iTHERM TS111, TM211 Omniset TPx100, Omnigrad TSx310 RTD/TC inserts and cable thermometers ATEX: II1D, II1/2D Ex ia IIIC or II1G, II1/2G Ex ia IIC IECEx: Ex ia IIC Ga, Ga/Gb
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Safety instructions RTD / TC Thermometer Omnigrad S TR/TC 6x
ATEX II1/2, 2GD or II2G
(Ex d IIC T5, T6; Ex tD A21 IP66 T85 °C T100 °C)

Ex Safety Instructions (XA)
Omnigrad TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x ATEX: II 1D, II 1/2D Ex ia IIIC or II 1G, II 1/2G Ex ia IIC IECEx: Ex iaIIC Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
RTD/TC thermometers ATEX II 3G, II 3D Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
Omnigrad TRxx, TCxx, TxCxxx
RTD/TC modular thermometers
0Ех ia IIC T6…T1 Ga Х
Ga/Gb Ех ia IIC T6…T1 Ga Х
Ех ia IIIC 85 °C…450 °C Da Х
Ех ia IIIC 85 °C…450 °C Da/Db Х

Ex Safety Instructions (XA)
Omnigrad S TR/TC6x ATEX: II 1/2 or G or D Ex d IIC or ta/tb IIIC IECEx: Ex d IIC r ta/tb IIIC Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex Safety Instructions (XA)
