Micropilot FMR20

Radar measurement
Time-of-Flight

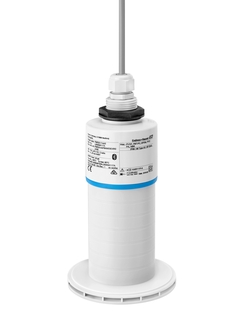

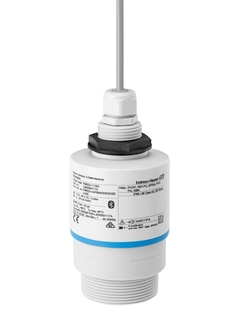

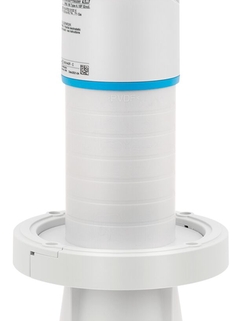

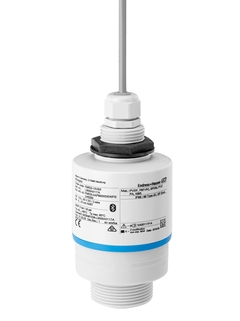

Micropilot FMR20

Level measurement of liquids and solids in all industries

FMR20
Please Wait (spinning wheel)
Laster inn pris
Pris midlertidig utilgjengelig
Price on request
from CHF ??.-

Spesifikasjonene kort oppsummert

  • Accuracy

    Liquids: +/- 2 mm (0,08")
    Solids. +/- 5 mm (0.2")

  • Process temperature

    -40…+80°C (-40…+176°F)

  • Process pressure / max. overpressure limit

    -1…3 bar (-14,5…43 psi)

  • Max. measurement distance

    Liquids: 20 m (66.6 ft)
    Solids: 10 m (32.8 ft)

  • Main wetted parts

    PVDF, PBT

Bruksområde

Micropilot FMR20 offers continuous non-contact level and flow (via linearization table) measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. Commissioning is possible via HART or wireless via app using Bluetooth® or with remote display.
Signal curves can be shown via app on every Bluetooth®-enabled smartphone/tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.

Radar for continuous level measurement and flow measurement (with open channels or weirs, via linearization table).

  • Process connections: Threads, flange versions

  • Process temperature: -40 to +80°C (-40 to +176°F)

  • Process pressure: -1 to +3bar (-14.5 to +43psi)

  • Max. measuring range: Liquids 20m (66ft), Solids 10m (33ft)

  • Accuracy: Liquids ±2mm (0.08"), Solids ±5mm (0.2")

  • Measuring frequency: 26GHz

  • International explosion protection certificates

Fordeler

  • Non-contact radar with commissioning via HART or wireless via Bluetooth® app or with remote display

  • Most compact radar due to unique radar chip design offering perfect fit in limited space applications

  • Best price-performance-ratio radar

  • Perfect application fit for water & wastewater, mining, minerals & metals as well as utilities in all industries (IP66, 68 / NEMA4x, 6P)

  • Full PVDF body to resist outdoor conditions, sealed wiring and fully potted electronics eliminates water ingress and allows operation under harsh environmental conditions

  • Easy setup with three main parameters suits for most applications

  • Simple, safe and secure wireless remote access via Bluetooth® – even in hazardous areas or places difficult to reach
