Hydrostatic
Level measurement
Deltapilot FMB70

Highest performance pressure sensor with the Contite cell for hydrostatic level measurement

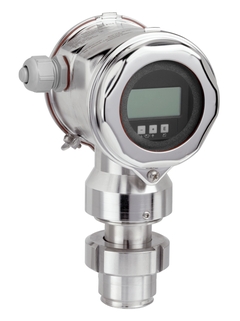

  • Deltapilot FMB70 hygienic housing ©Endress+Hauser

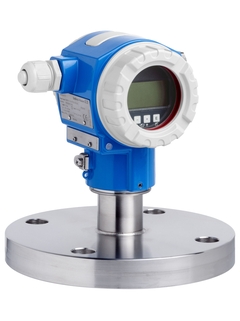

  • Deltapilot FMB70 aluminum housing ©Endress+Hauser

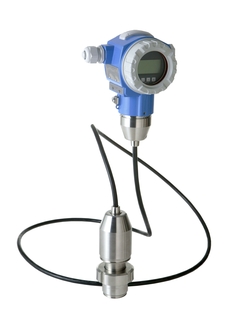

  • Deltapilot FMB70 separate housing ©Endress+Hauser

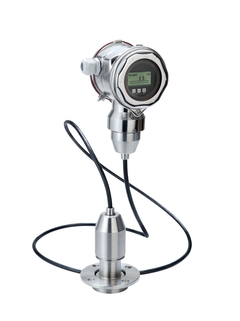

  • Deltapilot FMB70 separate housing hygienic ©Endress+Hauser
  • Pressure measuring principle

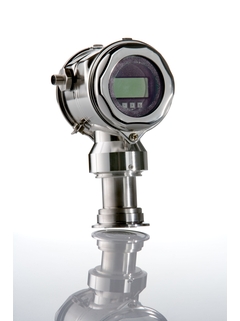

  • Deltapilot FMB70 ©Endress+Hauser

The Deltapilot FMB70 with the condensate resistant Contite measuring cell and two-chamber housing is typically used in the process and hygienic applications. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. The integrated HistoROM/M-DAT data module makes management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety systems.

Fordeler

  • Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.1%, optionally ±0.075% and minimum temperature effects thanks to active temperature compensation

  • Best batch-to-batch repeatability and long-term stability

  • Modular concept for easy replacement of display or electronics

  • HistoROM/M-DAT data backup for instrument settings and measured values

  • Function-monitored from the measuring cell to the electronics

  • Seamless and independent system integration (HART/PA/FF)

  • International usage thanks to a wide range of approvals

Bruksområde

For level and/or pressure measurement.

  • Process connections: Threads, flanges and hygienic connections

  • Temperature: –10 to +100°C (14 to 212°F) (+135°C (275°F) for 30 minutes maximum)

  • Measuring range: 0.1 to 10 bar rel. (1.5 to 150 psi)

  • Accuracy: ±0.075%

  • International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals

Funksjoner og spesifikasjoner

Dokumenter/håndbøker/programvare

Tilbehør/reservedeler

Forgjenger / Erstatter

Forgjenger: Deltapilot S DB50, Deltapilot S DB50A, Deltapilot S DB50L, Deltapilot S DB50S
