Microwave barrier receiver
Receiver for non-contact point level detection in bulk solids

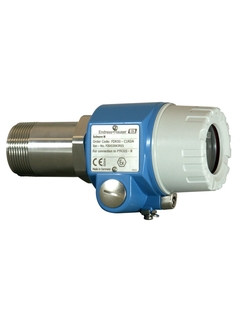

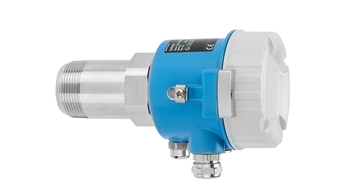

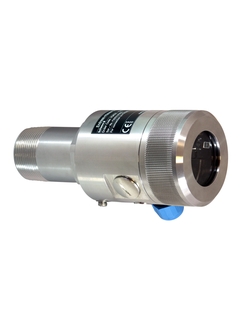

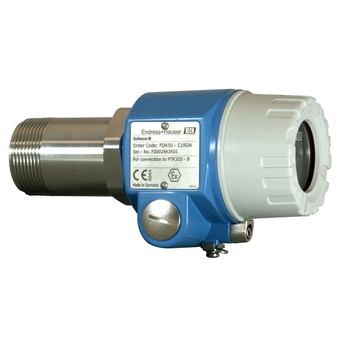

The Soliwave FDR50 microwave barrier uses a contact-free procedure for detection of point levels. It can be installed in containers, conduits, shafts or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside. Suitable as point level switch for controlling and counting all types of bulk solids. It interacts with the Soliwave FQR50 emitter.
Highly reliable measurement due to adjustable sensitivity and indication of the signal strength on the receiver
Mechanical robust solution ensures cost savings over the whole life cycle of the product: No wear and tear, long serviceable life, maintenance free
Safe solution unaffected by process conditions and even suited for hazardous areas
Typical bulk solids are: Wood chips, wood dust or flour, plaster, cement, ash, paper or cardboard shred, gravel, sand, dried powders in general, bags and boxes.
Process connections: Threads
Ambient temperature: -20 to +70°C (-4 to +158°F)
Measuring range: Max. 8m (26ft) or 20m (65ft) (depending on the version)
International explosion protection certificates
