Spesifikasjonene kort oppsummert
-
Process temperature
0 to 135 °C (32 to 275 °F)
-
Process pressure
1 to 17 bar (15 to 246 psi)
Bruksområde

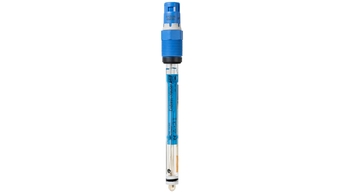

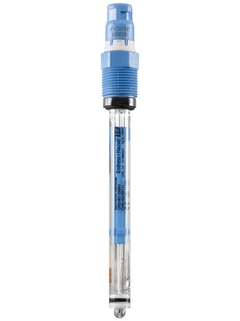

Memosens CPS16D is the digital all-rounder for simultaneous pH and ORP measurement offering better process control and increased quality. The sensor features a dirt-repellent PTFE diaphragm for process and environment applications with long-term stable conditions. Memosens CPS16D is not the latest Memosens generation. To get information on the new Memosens CPS16E sensor with extended functionality, click here.
Long-term monitoring or limit control in processes with stable process conditions:
- Chemical processes
- Pulp and paper industry
- Power stations (e.g. flue gas cleaning)
- Incinerator plants
- Mining
- WastewaterWater treatment:
- Drinking water
- Cooling water
- Well water
With ATEX and IEC approval for use in hazardous areas.
Fordeler
Simultaneous measurement of pH, ORP and rH values (in rH mode) for a better process overview
Additional platinum electrode enables constant monitoring of reference impedance and thus sensor quality

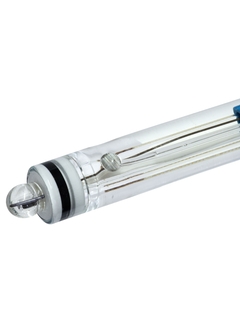

Robust and resistant to poisoning thanks to large PTFE ring diaphragm and reference with ion trap
Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 17 bar (246 psi)
Maximum process safety through non-contact inductive signal transmission
Enables predictive maintenance due to storage of sensor and process-specific data
Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
