Spesifikasjonene kort oppsummert
-
Measurement range
0.5 to 1 000 μg/l (ppb)
-
Process temperature
< 50 °C (122 °F)
-
Process pressure
max. 0.5 bar (7.25 psi)
-
Measuring method
TOC determination by UV digestion and measurement of the differential conductivity
Bruksområde

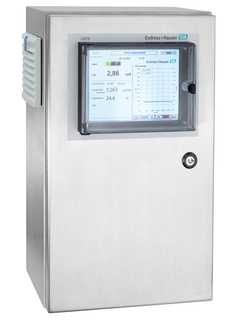

Total organic carbon (TOC) content strongly influences the quality of ultrapure water. A high TOC concentration can cause damage of water purification systems or compromise the required water quality. The CA78 online TOC analyzer provides continuous, accurate TOC monitoring ensuring consistently high quality of the ultrapure water used in your production processes. You gain full control of your product yield and quality.
The CA78 TOC analyzer is perfectly suited to TOC monitoring of ultrapure water in the following industries:
Power & Energy
Semiconductor production
Bodycare
Disinfectant production
With the following process conditions:
Conductivity: 2 µS/cm (standard), 10 µS/cm (order option)
pH range: Neutral
Fordeler
Real-time overview of water quality:
The online TOC analyzer measures continuously with a fast response time (t90) of 50 seconds. This enables you to react immediately to potential water contamination and to protect your product effectively.CA78 uses proven UV oxidation and differential conductivity measurement which is the most-established method for reliable TOC trace analysis in ultrapure water.

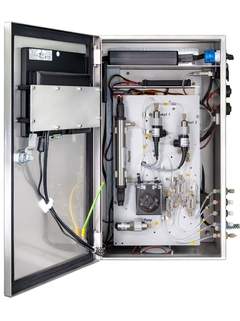

The analyzer's maintenance-friendly design in combination with our worldwide service network offers you complete support for the measuring point, from commissioning throughout the entire lifespan of the device.
Perfect adaption to your process needs:
Select between the high-precision 2 µS/cm conductivity version and the robust version that tolerates 10 µS/cm. Reduce your investment costs by the optional 3 channel configuration.
Extended utvalg
-
High- end produkter
- Høyst funksjonelle og praktiske
Tekniske egenskaper
Enkelhet
-
Standardprodukter
- Pålitelige, robuste og lette å vedlikeholde
Tekniske egenskaper
Enkelhet
-
Spesialprodukter
- Designet for krevende applikasjoner
Tekniske egenskaper
Enkelhet
Varierende
| FLEX utvalget | Tekniske egenskaper | Enkelhet |
|---|---|---|
Fundamental utvalg Møter dine grunleggende målebehov |
Tekniske egenskaper
|
Enkelhet
|
Lean utvalg Håndter henkelt dine kjerneprosesser |
Tekniske egenskaper
|
Enkelhet
|
Extended utvalg Optimaliser prosessene dine med innovative teknologier |
Tekniske egenskaper
|
Enkelhet
|
Xpert utvalg Mestre de mest utfordrende applikasjonene dine |
Tekniske egenskaper
|
Enkelhet
Varierende |
Loading alternative products
Suksesshistorier
-
-
Teknisk informasjon (TI)
TOC Analyzer CA78
Determination of total organic carbon (TOC) in the trace range
EN NO 01/07/202224/01/2022Språk:
Engelsk
Versjon:
01/07/2022
Filstørrelse:
963.6 KB
Filnavn:
TI01622CEN_0222-00.pdf
-
-
-
Driftsinstruksjon (BA)
TOC-analysator CA78
Bestemmelse av totalt organisk karbon (TOC) i sporområdet
EN NO 09/08/202224/01/2022Språk:
Norsk
Versjon:
09/08/2022
Filstørrelse:
3.6 MB
Filnavn:
BA02219CNO_0222-00.pdf
-
-
-
Innovasjon (IN)
Sicheres deionisiertes Wasser für Kraftwerke und Halbleiterproduktion
Zuverlässige Online-Überwachung niedriger TOC-Werte
mit dem Analysator CA78Språk:
Tysk
Versjon:
02/05/2022
Filstørrelse:
718 KB
Filnavn:
IN01239CDE_CA78-lowres.pdf
-
-
-
Innovasjon (IN)
Safe deionized water in power plant and semiconductor production
Precise and reliable online monitoring of low-range TOC values
with the CA78 analyzerSpråk:
Engelsk
Versjon:
18/02/2022
Filstørrelse:
616.8 KB
Filnavn:
IN01239CEN_CA78-lowres.pdf
-
-
-
EU-deklarasjon
Product family: TOC Analyzer
Product root: CA78-, CA79-
Declaration number: EU_00978_01.21EN NO 02/12/2021Språk:
Engelsk
Versjon:
02/12/2021
Filstørrelse:
265 KB
Filnavn:
EU_00978_01.21.pdf
-
-
-
UK-samsvar vurdert
Product family: TOC Analyzer
Product root: CA78-, CA79-
Declaration number: UK_00479_02.23EN NO 31/05/2023Språk:
Engelsk
Versjon:
31/05/2023
Filstørrelse:
219 KB
Filnavn:
UK_00479_02.23_CA78_CA79.pdf
-
-
-
Diverse
Product family: Liquiline, Liquiline M, Liquisys chlorine, Liquisys conductivity, Liquisys oxygen, Liquisys pH/ORP, New analyzer pla tform, SmarTec, SmarTec S, TOC Analyzer, TOCII
Product root: CA72TOC-, CA76NA-, CA78-, CA79-, CA80AL-, CA80AM-, CA80COD-, CA80CR-, CA80FE-, CA80HA-, CA80NO-, CA80PH-, CA80SI-, CA8
0TN-, CA80TP-, CCM223-, CCM253-, CLD132-, CLD134-, CLD18-, CLM223-, CLM223F-, CLM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R
-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM253-, CPM223-, CPM253-, CYM290-, CYM291-
Region: Eurasian Economic Union
Approval agency: EAC
Approval number: EAEC N RU D-DE.PA01.B.00347/21Språk:
Russisk
Versjon:
11/10/2021
Filstørrelse:
201.2 KB
Filnavn:
EAEC N RU D-DE.PA01.B.00347_21.pdf
-
-
-
Diverse
Product family: Liquiline, Liquiline M, Liquisys chlorine, Liquisys conductivity, Liquisys oxygen, Liquisys pH/ORP, New analyzer pla tform, SmarTec, SmarTec S, TOC Analyzer, TOCII
Product root: CA72TOC-, CA76NA-, CA78-, CA80AL-, CA80AM-, CA80COD-, CA80CR-, CA80FE-, CA80HA-, CA80NO-, CA80PH-, CA80SI-, CA80TN-, C
A80TP-, CCM223-, CCM253-, CLD132-, CLD134-, CLD18-, CLM223-, CLM223F-, CLM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM44
8-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM253-, CPM223-, CPM253-, CYM290-
Region: Eurasian Economic Union
Approval agency: EAC
Approval number: EAEC N RU D-DE.PA01.B.00339/21Språk:
Russisk
Versjon:
11/10/2021
Filstørrelse:
223.1 KB
Filnavn:
EAEC N RU D-DE.PA01.B.00339_21.pdf
-
