New Liquiphant FTL62 - Vibronic

Liquiphant FTL62 - the specialist for aggressive media

A level switch for aggressive and pumpable liquids

FTL62
Laster inn pris
Pris midlertidig utilgjengelig
Price on request
aktiverer pris
pris: gi informasjon
from CHF ??.-

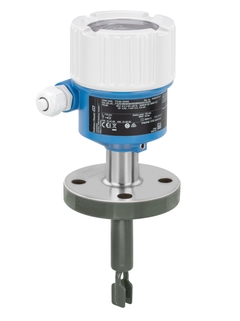

Liquiphant FTL62 with bluetooth module
  • F
  • L
  • E
  • X
©Endress+Hauser

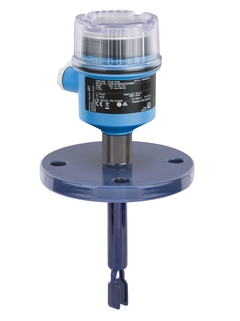

Liquiphant FTL62 with LED module
  • F
  • L
  • E
  • X
©Endress+Hauser

The new Liquiphant FLT62 with LED module

Liquiphant FTL62 with LED module
  • F
  • L
  • E
  • X
©Endress+Hauser

Spesifikasjonene kort oppsummert

  • Process temperature

    -50 °C...+150 °C
    (-58 °F...+302 °F)

  • Process pressure / max. overpressure limit

    Vacuum...40 bar
    Vacuum...580 psi

  • Min. density of medium

    0.5 g/cm³
    (0.4 g/cm³ optional)

Bruksområde

Liquiphant FTL62 has a strong focus on specific applications with aggressive liquids and simplicity with easy proof testing, reliability and safety (SIL) with compliance to IEC 61508, API 2350 and WHG. The vibronic device is determined for a safe and active measuring technology in aggressive liquids and want a reliable and proven point level detection for tank overfill prevention and pump dry run protection. The FTL62 is easy to use, has a digital connection and gives a real-time data at hand.

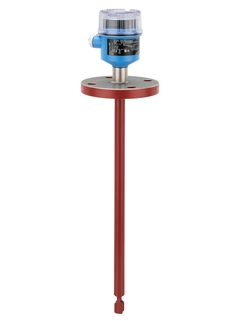

Point level switch with extension tube for pumpable liquids

  • Coated sensor for aggressive media: ECTFE (Halar), PFA (EdlonTM, Ruby Red, conductive), Enamel

  • Process temperature: -60 °C to +150°C

  • Process pressure: -1 to +40bar

  • Ambient temperature: -60 to +70°C

  • Viscosity up to 10,000mm2/s (cSt)

  • Process connections: Flanges

  • International explosion protection certificates, overfill prevention WHG, SIL, marine approvals

Fordeler

  • Universal measuring principle for limit detection – proven vibronic technology

  • Developed according IEC 61508 for highest safety – SIL2/3 applications (3rd party approved)

  • Periodic proof testing is quickly and simple organized with guided wizards via the SmartBlue-App or via a test button or magnetic pin from outside. Via digital communication you can initiate the device for a fast and easy testing of the safety loop.

  • Heartbeat Technology allows safe, continuous diagnostics and a simple verification, without process interruption

  • Centralized asset management with easy online access to all device information thanks to digital communication

  • Second line of defense to protect the environment

Videoer

  • Preventive maintenance is possible with corrosion detection via Heartbeat Technology

  • Liquiphant with permanent function check is the safe choice for point level detection in liquids
